Cable tray MKSU 60 FS 3000 | 100 | 1 | no | Steel | Strip galvanized

Cable tray MKSU 60 FS

Item no. 6063160 | EAN 4012196063611

Item no. / Types

Length	3000 mm

Width

Plate thickness	1 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

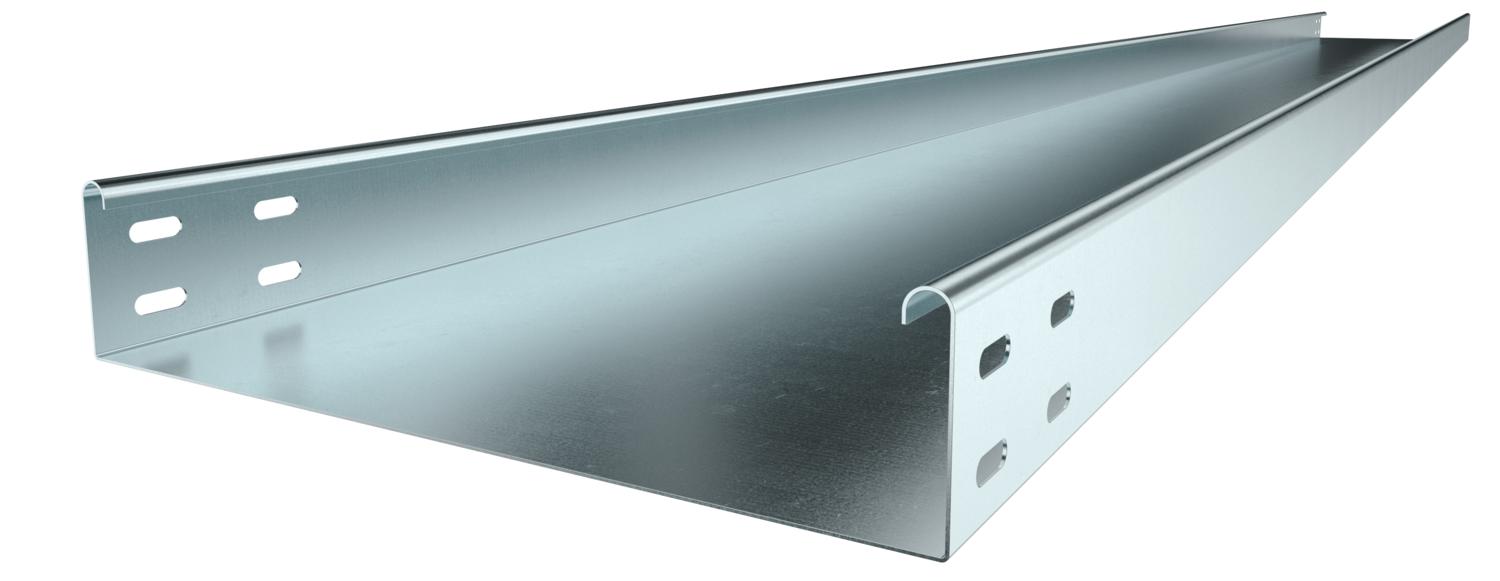

MKSU 60 = medium-duty cable tray system, unperforated, with a side height of 60 mm. Straight connectors should be ordered in the appropriate quantity.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Technical data

Connector version	Without connectors
Dimension	60x100x3000
Dimension	60 x 100
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	no
NATO hole pattern	no
Plate thickness	1 mm

Plate thickness	0,04 in
Rustproof steel, pickled	no
Side perforation	no
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	58 cm²
Usable cross-section	5800 mm²
Wide-span version	no
With cover	no

Dimensions

Dimension B	100 mm
Height	60 mm
Height	2 in
Length	3000 mm

Length	10 ft
Width	100 mm
Width	4 in

Loads

Support spacing 1.5 m	1,5 kN/m
Support spacing 1.75 m	1,25 kN/m

Support spacing 2.0 m	1 kN/m
Support spacing 2.5 m	0,5 kN/m

Technical data

Load diagram, cable tray, type MKSU 60 FS FT

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MKSU 610 FS	3000 mm	100 mm	1 mm	no	Steel	Strip galvanized	6063160	m	3 m
MKSU 615 FS	3000 mm	150 mm	1 mm	no	Steel	Strip galvanized	6063179	m	3 m
MKSU 620 FS	3000 mm	200 mm	1 mm	no	Steel	Strip galvanized	6063187	m	3 m
MKSU 630 FS	3000 mm	300 mm	1 mm	no	Steel	Strip galvanized	6063209	m	3 m
MKSU 640 FS	3000 mm	400 mm	1 mm	no	Steel	Strip galvanized	6063225	m	3 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FS	RLVK 60 FS	6067093	piece	10 piece
Joint plate FS	SSLB 100 FS	7070205	piece	20 piece
Cover with turn buckle FS	DRL 100 FS	6052096	m	3 m
Separating retainer 60 FS	TSG 60 FS	6062068	m	3 m
45° bend 60 FS	RB 45 610 FS	6043763	piece	1 piece
90° bend 60 FS	RB 90 610 FS	6043216	piece	1 piece
