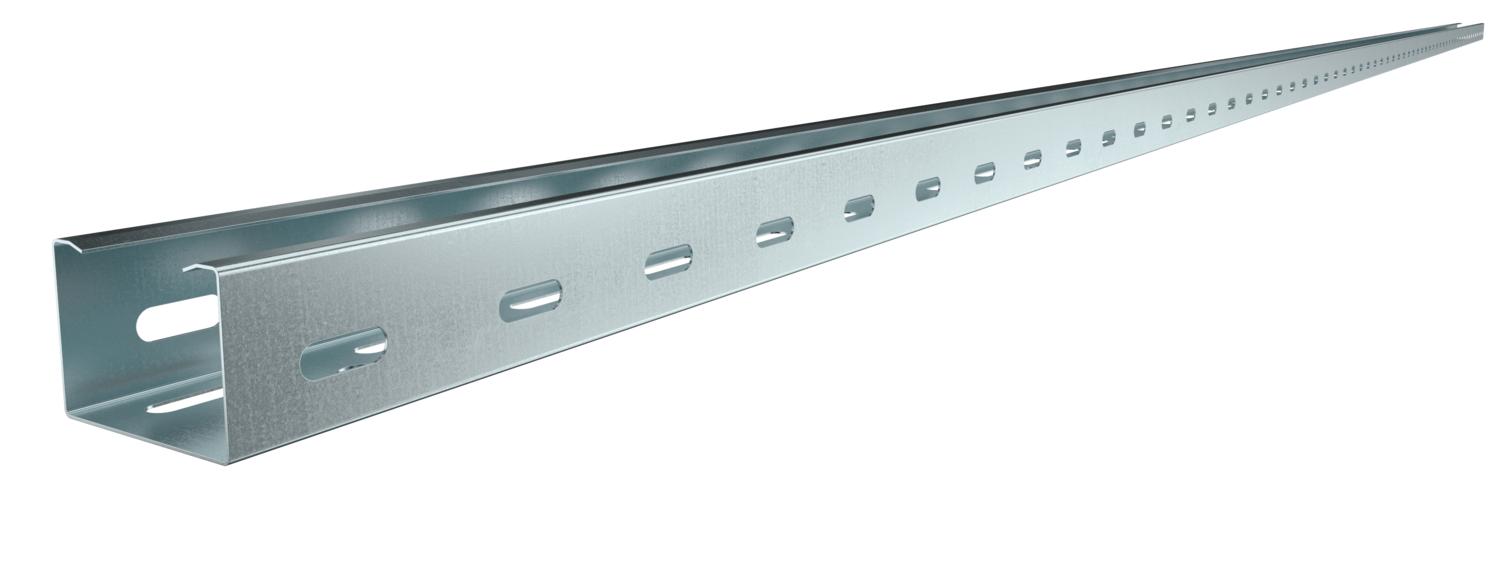

RKS 35 = Rational cable tray system with 35 mm side height.
Matching cover with turn buckle: Type AZDMD 50
- Technical data
-
Technical data
Base perforation 7 x 32 Connector version Without connectors Dimension 35x50x3000 Dimension 35x50 Load test type according to IEC 61537 Type II Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 0,75 mm Rustproof steel, pickled no Side perforation yes Surface Strip galvanized Type of connector, cable support system Screwed Usable cross-section 16 cm² Usable cross-section 1600 mm² Wide-span version no With cover no Dimensions
Dimension L 3000 mm Height 35 mm Length 3000 mm Width 50 mm Loads
Support spacing 1.0 m 1,2 kN/m Support spacing 1.5 m 0,5 kN/m Support spacing 2.0 m 0,3 kN/m Support spacing 2.5 m 0,1 kN/m Support spacing 3.0 m 0,05 kN/m Technical data

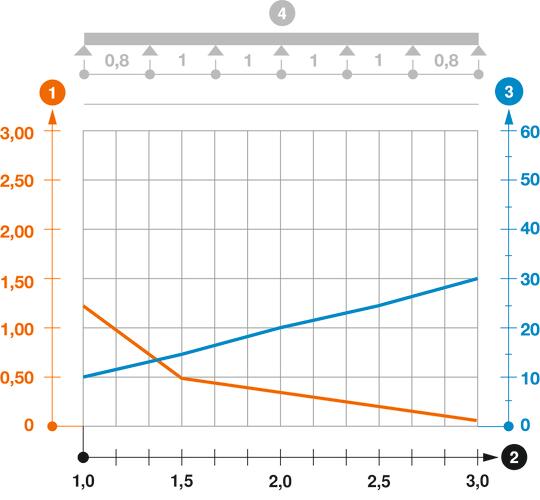

Load diagram, cable tray, type RKS 35
- Permitted cable tray/ladder load in kN/m without man load
- Support width in m
- Rail bend in mm at permitted kN/m
- Load scheme during testing
- Load curve with cable tray/ladder width in mm
- Strut bend curve according to support width
- All types
