Cable tray RKS-Magic® 60, EcoLine, FS 3050 | 400 | 60 | 0.75 | yes | zinc | Steel, CO2 reduced | Strip galvanized
morepic-1 morepic-2

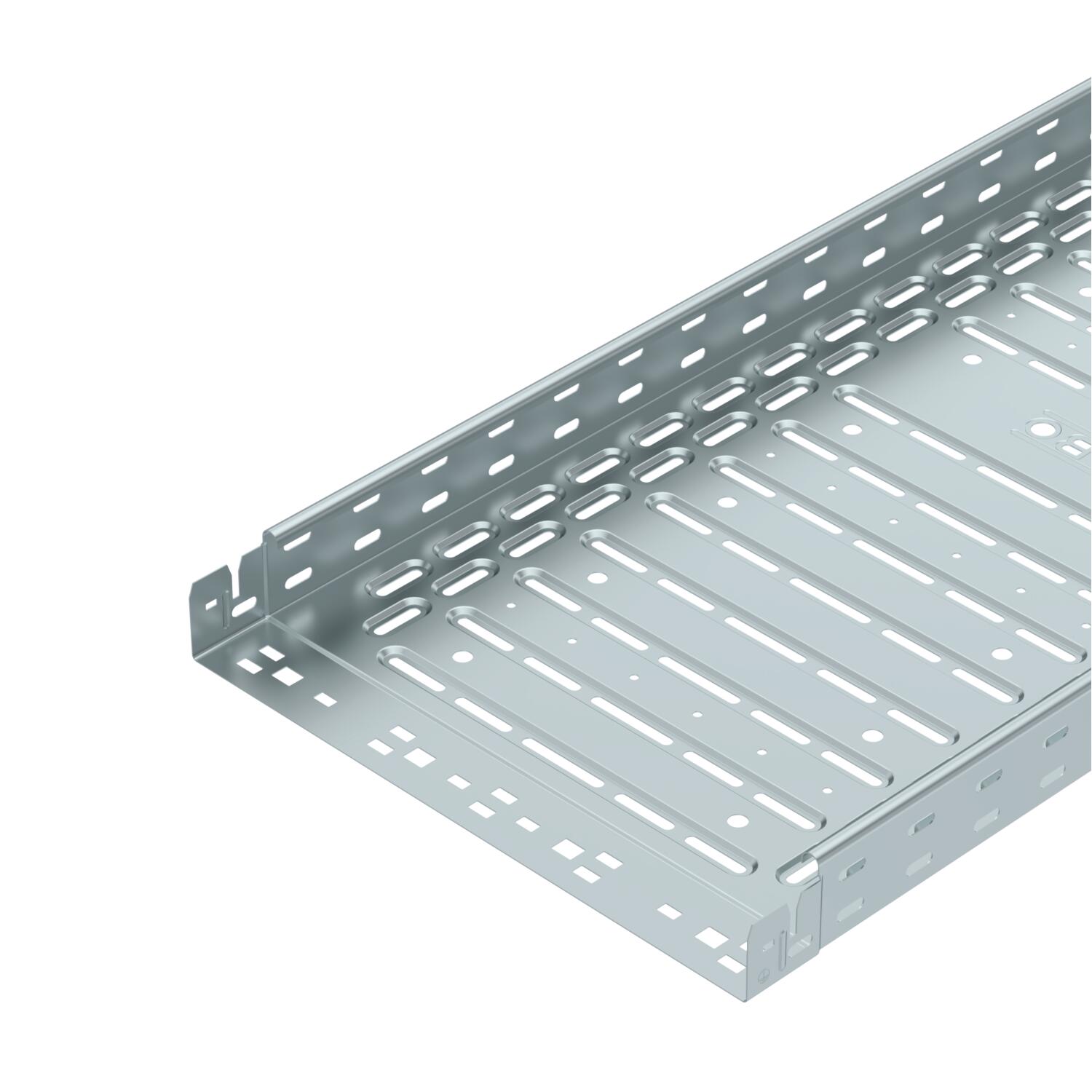

Cable tray RKS-Magic® 60, EcoLine, FS

Item no. 6047687 | EAN 4012197485979

3050 mm
60 mm
zinc
Steel, CO2 reduced
Strip galvanized
Product description
Product description
Cable tray made from CO2-reduced steel, with integrated quick-fastening system. Usable length 3,000 mm. With continuous side perforation of 7 x 20 mm for the installation of connection and mounting components. 11 mm perforation in the base for direct threaded rod susptension
Magnetische Schirmdämpfung ohne Deckel 20 dB, mit Deckel 50 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Function maintenance class E30
  • Function maintenance class E60
  • Function maintenance class E90
  • OBO ECOLine
  • CO₂-reduziertes Material
  • Packaging without plastic
  • Reusable after de-installation/dismantling
  • CO₂ footprint (PCF)
Technical data

Technical data

Base perforation 1
CO2 Footprint (GWP) Cradle-to-Gate 4,3374 kg CO2e / 1 Meter
Colour zinc
Connector version Integrated connector

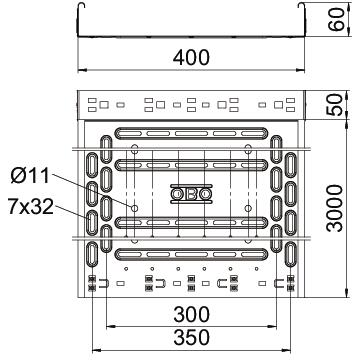

Dimension 60x400
Dimension 60x400x3050
Dimension B 400 mm
Dimension t 200 mm
Dimension W 400 mm
Dimension x 300 mm
Dimension y 350 mm
Height 60 mm
Length 3050 mm
Maintain electrical functions yes
Material Steel, CO2 reduced
Mounting perforation in base yes
NATO hole pattern no
NEMA load class 8AA
Plate thickness 0,75 mm
Rustproof steel, pickled no
Side perforation yes
Support spacing 1.0 m 2,1 kN/m
Support spacing 1.5 m 1,35 kN/m
Support spacing 2.0 m 0,8 kN/m
Support spacing 2.5 m 0,6 kN/m
Surface Strip galvanized
Usable cross-section 23800 mm²
Usable cross-section 238 cm²
Wide-span version no
Width 400 mm
All types

All types

Types Length Width Height Plate thickness Maintain electrical functions Colour Material Surface Item no. Quantity SSU
RKSM 610 FS ECO 3050 mm 100 mm 60 mm 0.75 mm yes zinc Steel, CO2 reduced Strip galvanized 6047609
1 m
RKSM 620 FS ECO 3050 mm 200 mm 60 mm 0.75 mm yes zinc Steel, CO2 reduced Strip galvanized 6047636
1 m
RKSM 630 FS ECO 3050 mm 300 mm 60 mm 0.75 mm yes zinc Steel, CO2 reduced Strip galvanized 6047652
1 m
RKSM 640 FS ECO 3050 mm 400 mm 60 mm 0.75 mm yes zinc Steel, CO2 reduced Strip galvanized 6047687
1 m
RKSM 650 FS ECO 3050 mm 500 mm 60 mm 0.9 mm no zinc Steel, CO2 reduced Strip galvanized 6047717
1 m
RKSM 660 FS ECO 3050 mm 600 mm 60 mm 0.9 mm no zinc Steel, CO2 reduced Strip galvanized 6047733
1 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Straight connector 60, EcoLine, FS Straight connector 60, EcoLine, FS RLVK 60 FS ECO 6067090
1 piece

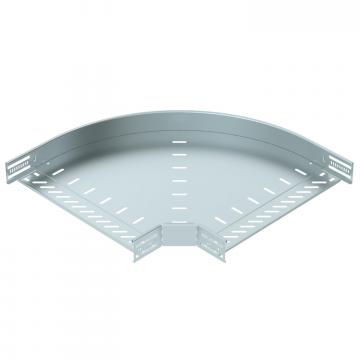

90° bend 60, EcoLine, FS 90° bend 60, EcoLine, FS RB 90 640 FS ECO 6036581
1 piece

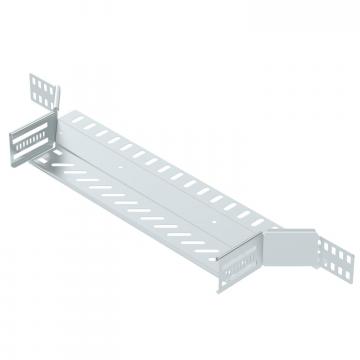

Add-on tee, EcoLine, FS Add-on tee, EcoLine, FS RAA 640 FS ECO 6042181
1 piece
