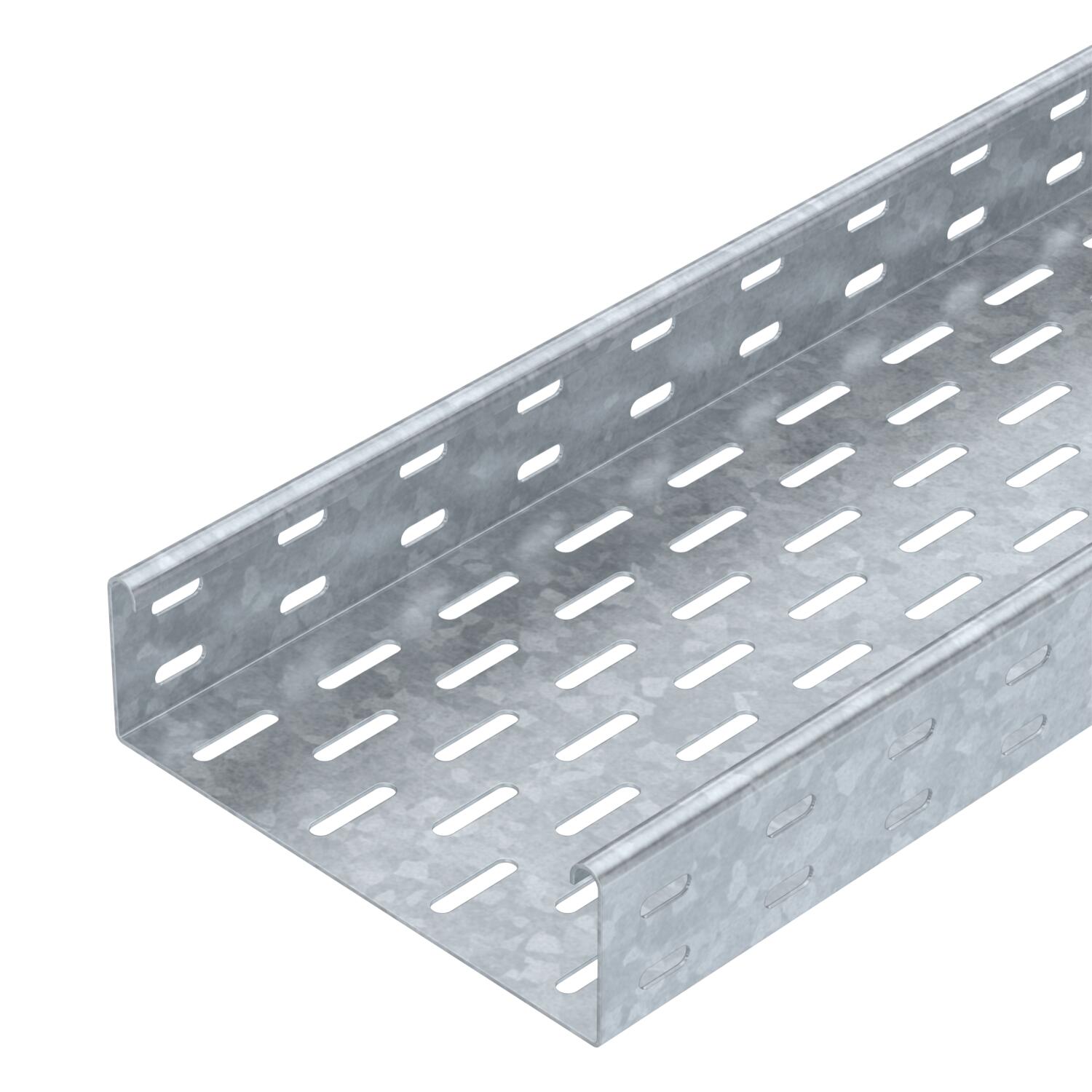

Cable tray SKS 60 FT

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

SKS 60 = Heavy-duty cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Connector version	Without connectors

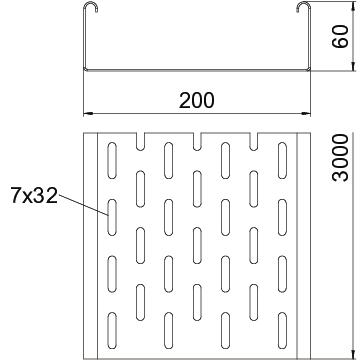

Dimension	60x200x3000
Dimension	60 x 200
Fire protection	Maintenance of electrical function of standard support structure
Load test type according to IEC 61537	Type II
Maintain electrical functions	yes
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	1,5 mm

Plate thickness	0,06 in
Rustproof steel, pickled	no
Side perforation	yes
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	118 cm²
Usable cross-section	11800 mm²
Wide-span version	no
With cover	no

Support spacing 1.5 m	2,65 kN/m
Support spacing 2.0 m	1,8 kN/m

Support spacing 2.5 m	1,15 kN/m
Support spacing 3.0 m	0,5 kN/m

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKS 610 FT	3000 mm	100 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6056636	m	3 m
SKS 615 FT	3000 mm	150 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6056644	m	3 m
SKS 620 FT	3000 mm	200 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6056652	m	3 m
SKS 630 FT	3000 mm	300 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6056679	m	3 m
SKS 640 FT	3000 mm	400 mm	1.5 mm	no	Steel	Hot-dip galvanised	6056695	m	3 m
SKS 650 FT	3000 mm	500 mm	1.5 mm	no	Steel	Hot-dip galvanised	6056717	m	3 m
SKS 660 FT	3000 mm	600 mm	1.5 mm	no	Steel	Hot-dip galvanised	6056733	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FT	RLVK 60 FT	6067603	piece	10 piece
Joint plate DD	SSLB 200 DD	7070314	piece	20 piece
Cover with turn buckle FT	DRL 200 FT	6051367	m	3 m
Cover with turn buckle DD	DRL 200 DD	6052709	m	3 m
Barrier strip 60 DD	TSG 60 DD	6062327	m	3 m
45° bend 60 FT	RB 45 620 FT	7066228	piece	1 piece
90° bend 60 FT	RB 90 620 FT	7125220	piece	1 piece
