Cable tray SKSU 110 FS 6000 | 100 | 1.5 | no | Steel | Strip galvanized

Cable tray SKSU 110 FS

Item no. 6063412 | EAN 4012197425159

Item no. / Types

Length

Width

Plate thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

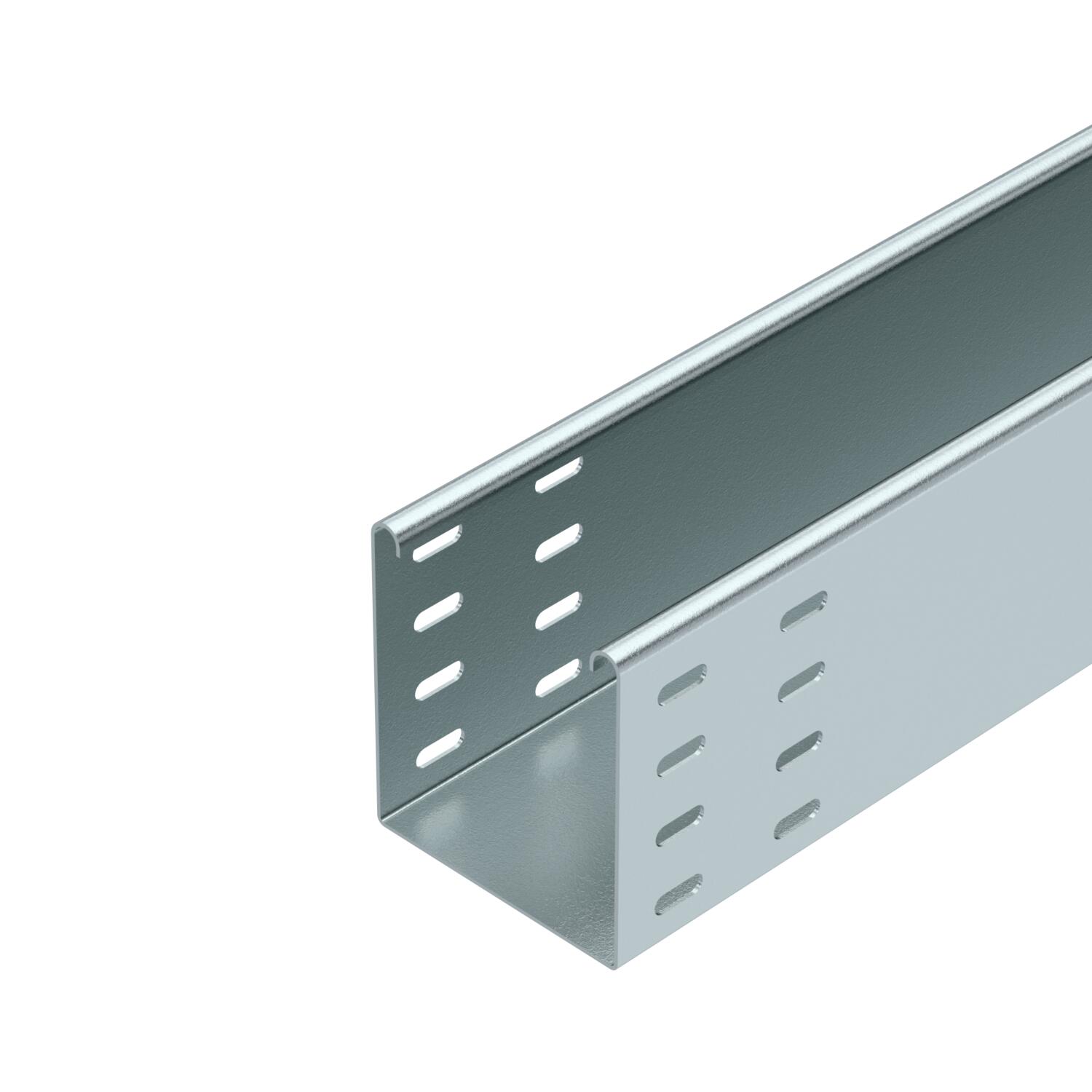

SKS = heavy-duty cable tray system in a side height of 110 mm. With connector perforation on both cable tray ends. Straight connection with straight connector RLVA 110 FS. Please order connectors separately.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	9,0882 kg CO2e / 1 Meter
Colour	zinc
Connector version	Without connectors

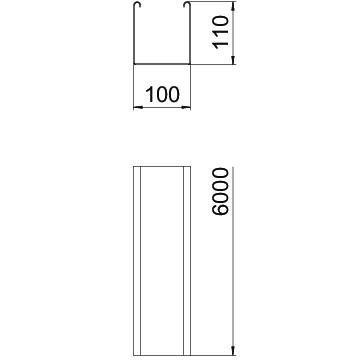

Dimension	110x100x6000
Height	110 mm
Height	4 in
Length	20 ft
Length	6000 mm
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	no
NATO hole pattern	no
Plate thickness	1,5 mm
Plate thickness	0,06 in
Rustproof steel, pickled	no

Side perforation	no
Support spacing 1.5 m	3 kN/m
Support spacing 2.0 m	2,4 kN/m
Support spacing 2.5 m	1,76 kN/m
Support spacing 3.0 m	1,2 kN/m
Support spacing 3.5 m	0,84 kN/m
Support spacing 4.0 m	0,8 kN/m
Support spacing 5.0 m	0,55 kN/m
Support spacing 6.0 m	0,4 kN/m
Support spacing 7.0 m	0,3 kN/m
Surface	Strip galvanized
Usable cross-section	10800 mm²
Usable cross-section	108 cm²
Wide-span version	yes
Width	100 mm

Technical data

Load diagram cable tray, type SKSU 110 with connector, type RLVA

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKSU 110 FS	3000 mm	100 mm	1.5 mm	no	Steel	Strip galvanized	6063403	m	3 m
SKSU 110 FS 6	6000 mm	100 mm	1.5 mm	no	Steel	Strip galvanized	6063412	m	6 m
SKSU 120 FS	3000 mm	200 mm	1.5 mm	no	Steel	Strip galvanized	6063438	m	3 m
SKSU 130 FS	3000 mm	300 mm	1.5 mm	no	Steel	Strip galvanized	6063454	m	3 m
SKSU 140 FS	3000 mm	400 mm	1.5 mm	no	Steel	Strip galvanized	6063470	m	3 m
SKSU 150 FS	3000 mm	500 mm	1.5 mm	no	Steel	Strip galvanized	6063497	m	3 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

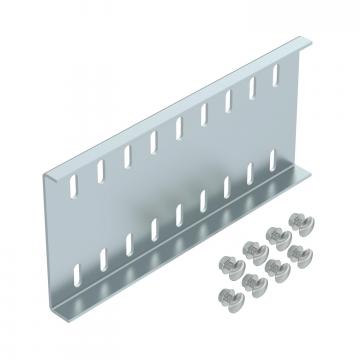

Straight connector, external, for SKSU 6,000 mm	RLVA 110 FS	6067055	piece	2 piece
Cover with turn buckle FS	DRL 100 FS	6052096	m	3 m
Joint plate FS	SSLB 100 FS	7070205	piece	20 piece
Add-on tee 110 FS	RAA 110 FS	6042151	piece	1 piece
90° bend 110 FS	RB 90 110 FS	6036800	piece	1 piece
45° bend 110 FS	RB 45 110 FS	6036300	piece	1 piece
Bend, angle-adjustable, 110 FS	RB W 110 FS	6037300	piece	1 piece
T piece 110 FS	RT 110 FS	6038300	piece	1 piece
Cross-over 110 FS	RK 110 FS	7027351	piece	1 piece
Separating retainer 110 FS	TSG 110 FS	6062122	m	3 m
