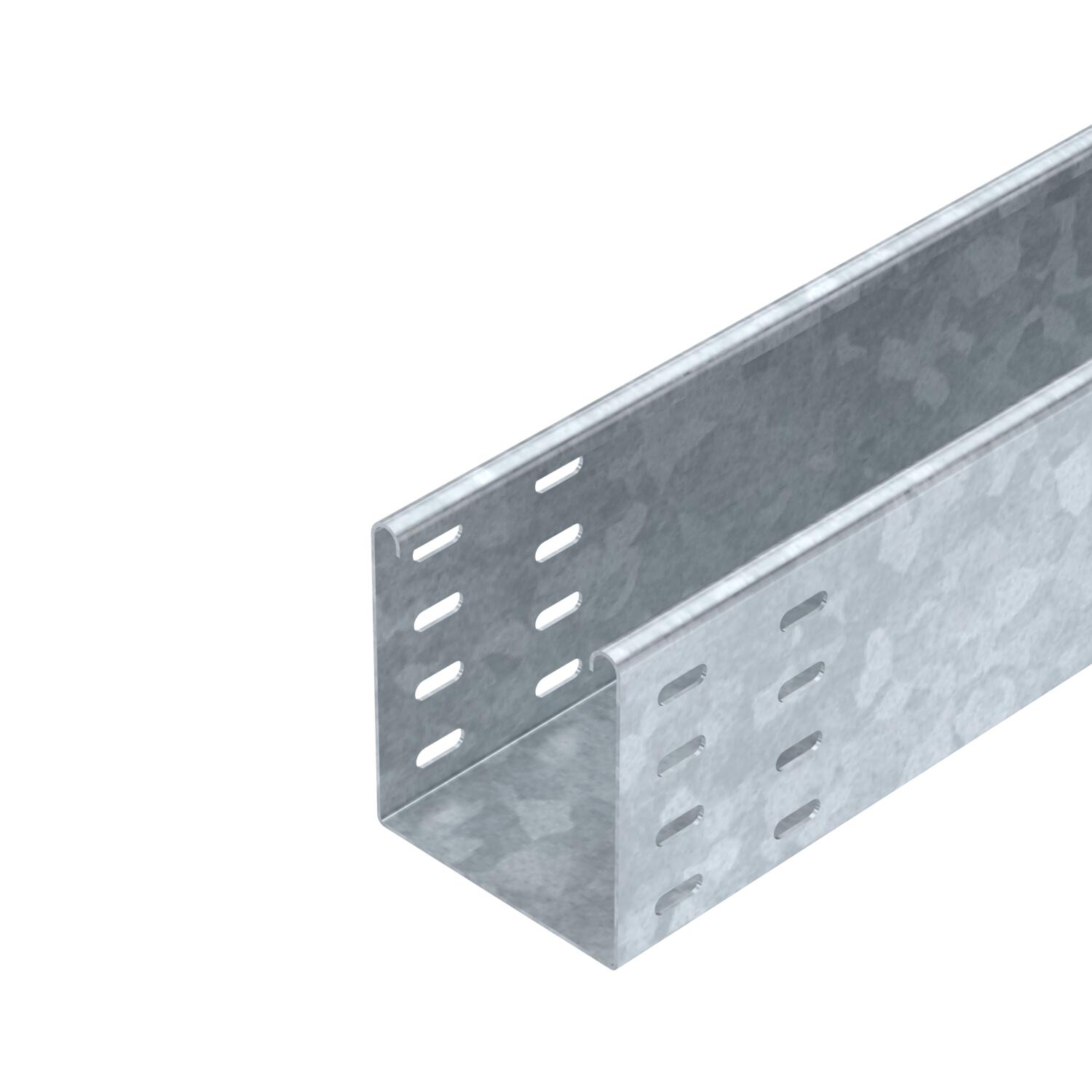

Cable tray SKSU 110 FT

Item no. 6064810 | EAN 4012197425180

1.5 mm
no
Steel
Hot-dip galvanised
Product description
Product description
SKS 110 = heavy-duty cable tray system with 110 mm side height. With connector perforation on both cable tray ends. Straight connection with straight connector RLVA 110 FT. Please order connectors separately.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 8,9432 kg CO2e / 1 Meter
Colour zinc
Connector version Without connectors

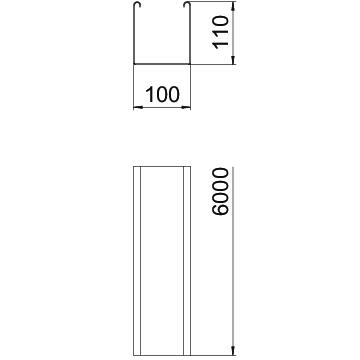

Dimension 110x100x6000
Height 110 mm
Length 6000 mm
Maintain electrical functions no
Material Steel
Mounting perforation in base no
NATO hole pattern no
Plate thickness 0,06 in
Plate thickness 1,5 mm
Rustproof steel, pickled no
Side perforation no
Support spacing 1.5 m 3 kN/m
Support spacing 2.0 m 2,4 kN/m
Support spacing 2.5 m 1,76 kN/m
Support spacing 3.0 m 1,2 kN/m
Support spacing 3.5 m 0,84 kN/m
Support spacing 4.0 m 0,8 kN/m
Support spacing 5.0 m 0,55 kN/m
Support spacing 6.0 m 0,4 kN/m
Support spacing 7.0 m 0,3 kN/m
Surface Hot-dip galvanised
Usable cross-section 10800 mm²
Usable cross-section 108 cm²
Wide-span version yes
Width 100 mm

Technical data

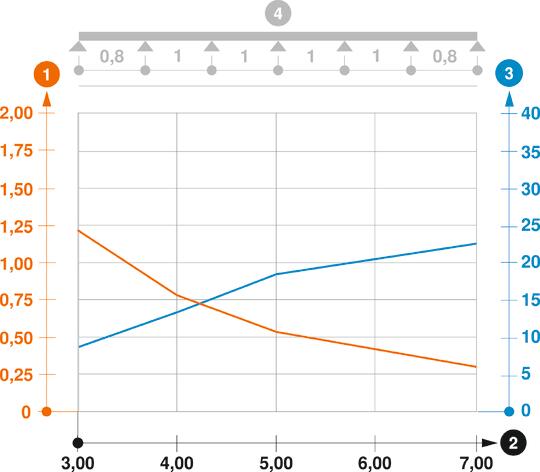

Load diagram cable tray, type SKSU 110 with connector, type RLVA

Load diagram cable tray, type SKSU 110 with connector, type RLVA
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Surface Item no. Quantity SSU
SKSU 110 FT 3000 mm 100 mm 1.5 mm no Steel Hot-dip galvanised 6064795
3 m
SKSU 110 FT 6 6000 mm 100 mm 1.5 mm no Steel Hot-dip galvanised 6064810
6 m
SKSU 120 FT 3000 mm 200 mm 1.5 mm no Steel Hot-dip galvanised 6064833
3 m
SKSU 130 FT 3000 mm 300 mm 1.5 mm no Steel Hot-dip galvanised 6064884
3 m
SKSU 140 FT 3000 mm 400 mm 1.5 mm no Steel Hot-dip galvanised 6064922
3 m
SKSU 150 FT 3000 mm 500 mm 1.5 mm no Steel Hot-dip galvanised 6064965
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU

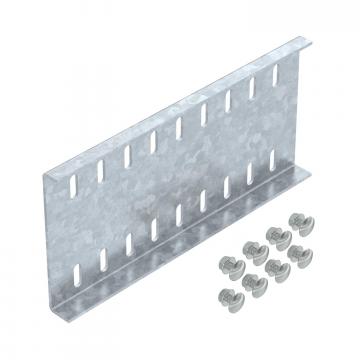

Straight connector, external, for SKSU 6,000 mm Straight connector, external, for SKSU 6,000 mm RLVA 110 FT 6067057
2 piece
Cover with turn buckle FT Cover with turn buckle FT DRL 100 FT 6051340
3 m
Joint plate DD Joint plate DD SSLB 100 DD 7070306
20 piece
Add-on tee 110 FT Add-on tee 110 FT RAA 110 FT 6042251
1 piece
90° bend 110 FT 90° bend 110 FT RB 90 110 FT 6036830
1 piece
45° bend 110 FT 45° bend 110 FT RB 45 110 FT 6036330
1 piece
Bend, angle-adjustable, 110 FT Bend, angle-adjustable, 110 FT RB W 110 FT 6037320
1 piece
T piece 110 FT T piece 110 FT RT 110 FT 6038320
1 piece
Cross-over 110 FT Cross-over 110 FT RK 110 FT 7027451
1 piece
Barrier strip 110 DD Barrier strip 110 DD TSG 110 DD 6062335
3 m
