CEE flange BRK CEE FL
Item no. 6121122 | EAN 4012196735044
- Product description
-

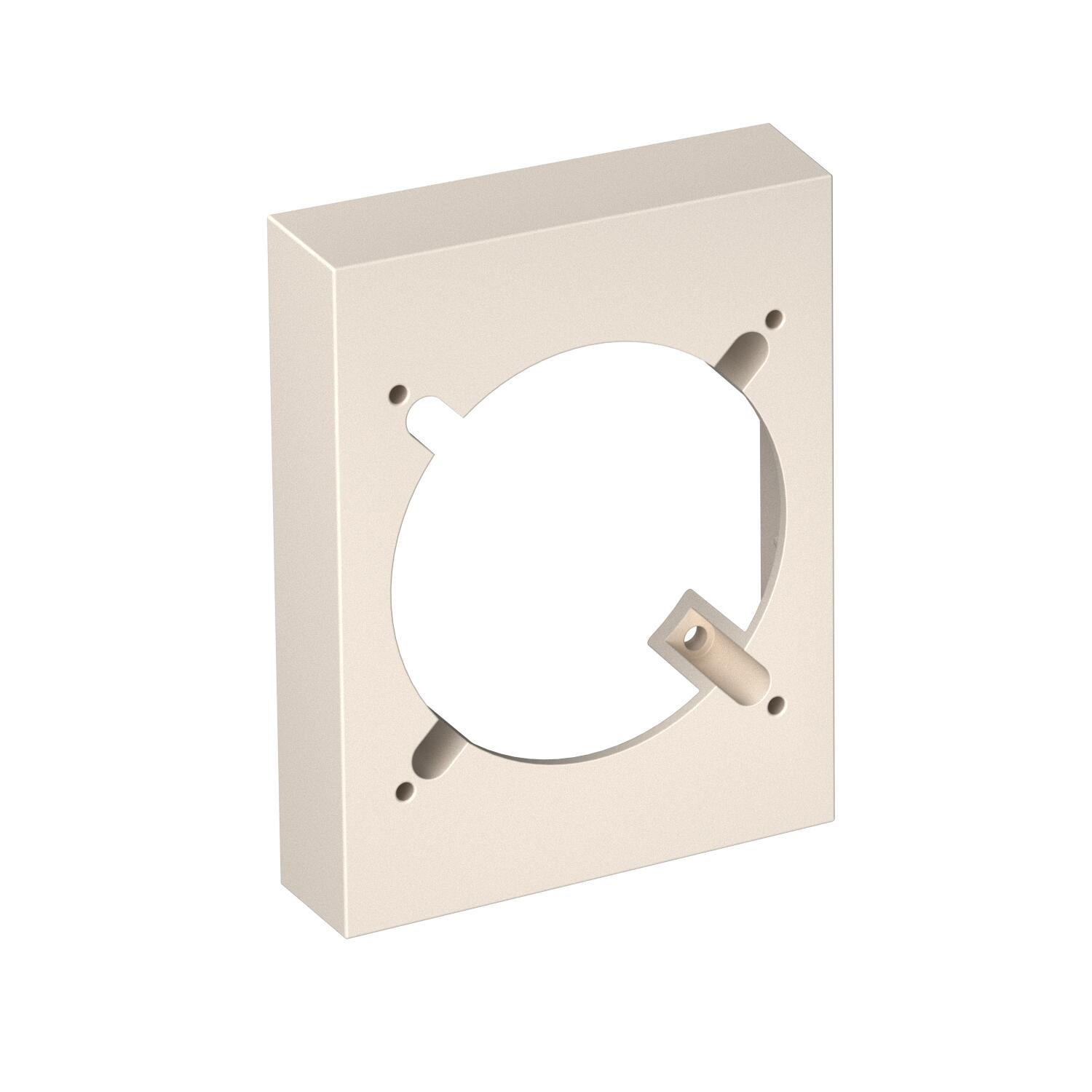

Product descriptionCEE flange for CEE devices with 70 mm perforation, suitable for Signa Base dado trunking.
-
- Technical data
-
Technical data

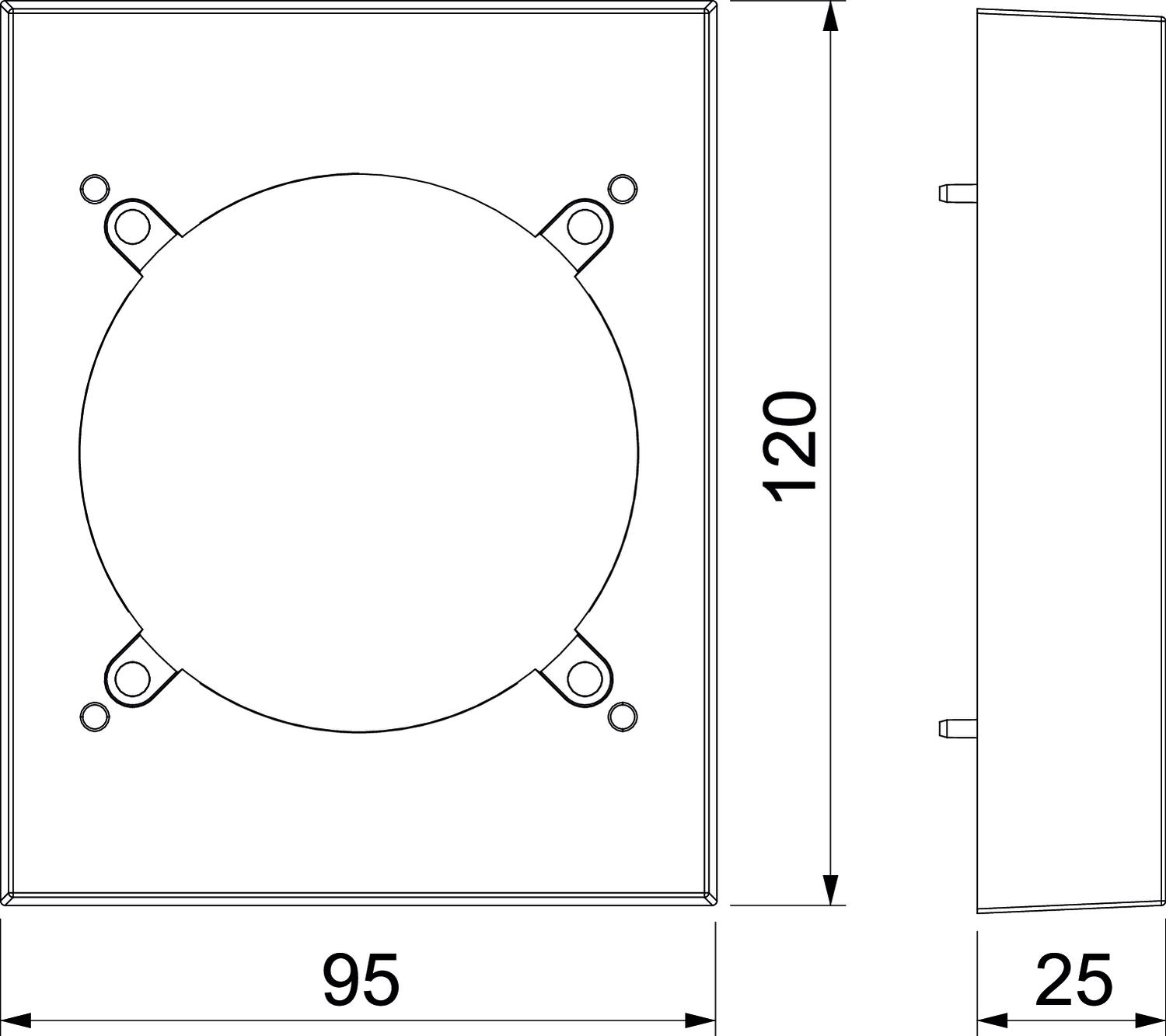

Antibacterial treatment no Anzahl der Einheiten vertikal 1 CO2 Footprint (GWP) Cradle-to-Gate 0,3446 kg CO2e / 1 Piece Colour Cream; RAL 9001 Concealed no Depth 25 mm Diameter opening 70 Dimension 120x95x25 Fastening type Screw fastening Halogen-free no Height 95 mm Hinged cover no Material Polycarbonate/Acrylnitrile-butadiene-styrene Mounting direction Horizontal and vertical Number of units 1 Number of units, horizontal 1 Suitable for built-in installations no Suitable for device installation ducts yes Suitable for flush-mounted installations no Suitable for underfloor duct socket no Surface version Matt Text field/inscription field no Transparent no Width 120 mm With mounting frame no - All types
- Downloads
-
Data sheet BRK CEE FL cws / 6121122 , 0.21MB , pdfREACH Declaration of conformity BRK CEE FL cws / 6121122 , 0.12MB , pdfRoHS Declaration of conformity BRK CEE FL cws / 6121122 , 0.13MB , pdfNo invitation to tender text is available for this product.
