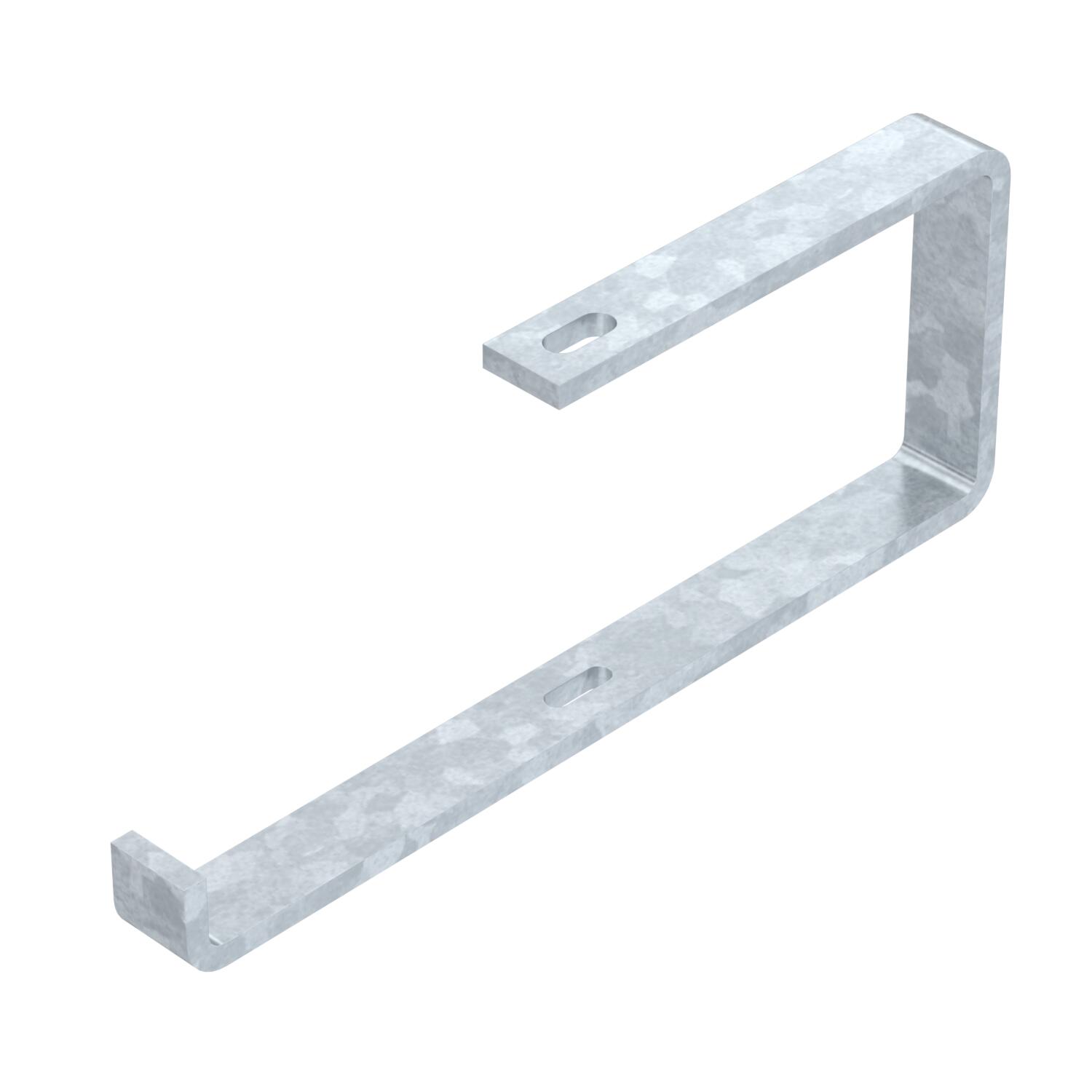

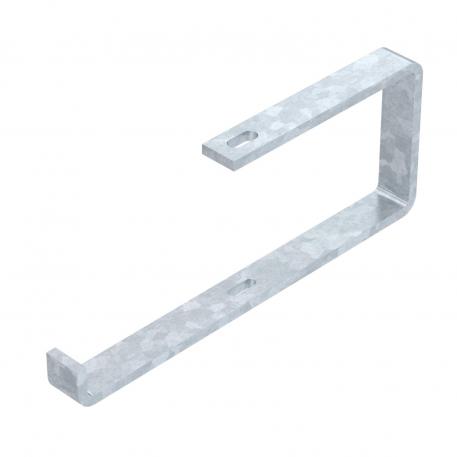

Ceiling bracket 13 FT

Item no. / Types

Width

Height	130 mm

F in kN ceiling

for width max.

Hole diameter	11 mm

Colour	zinc

Product description

Product description

Suspension bracket for cable support systems to fasten directly under the ceiling or as a suspension with threaded rods M10.

Technical data

Adjustable	no
CO2 Footprint (GWP) Cradle-to-Gate	2,7792 kg CO2e / 1 Piece
Colour	zinc

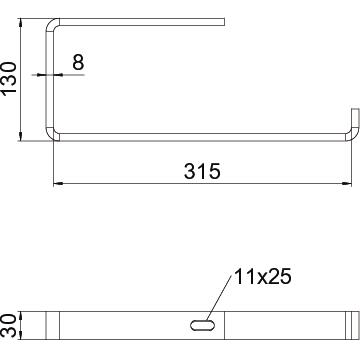

Dimension	B300mm
Dimension W	315 mm
F in kN ceiling	0,35 kN
for width max.	300 mm
for width min.	300
Height	130 mm
Hole diameter	11 mm
Maintain electrical functions	no

Material	Steel
Material thickness	8 mm
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Suitable for metric threaded rod	10
Surface	Hot-dip galvanised
Tray fastening	Screw-on
Version for	Suspension bracket (C clamp)
Width	331 mm

All types

All types

Types	Width	Height	F in kN ceiling	for width max.	Hole diameter	Colour	Item no.	Quantity	SSU
AHB 100 13 FT	127 mm	130 mm	0.6 kN	100 mm	11 mm	zinc	6363904	piece	1 piece
AHB 150 13 FT	181 mm	130 mm	0.7 kN	150 mm	11 mm	zinc	6363908	piece	1 piece
AHB 200 13 FT	231 mm	130 mm	0.6 kN	200 mm	11 mm	zinc	6363912	piece	1 piece
AHB 300 13 FT	331 mm	130 mm	0.35 kN	300 mm	11 mm	zinc	6363939	piece	1 piece
AHB 400 13 FT	431 mm	130 mm	0.2 kN	400 mm	11 mm	zinc	6363947	piece	1 piece
