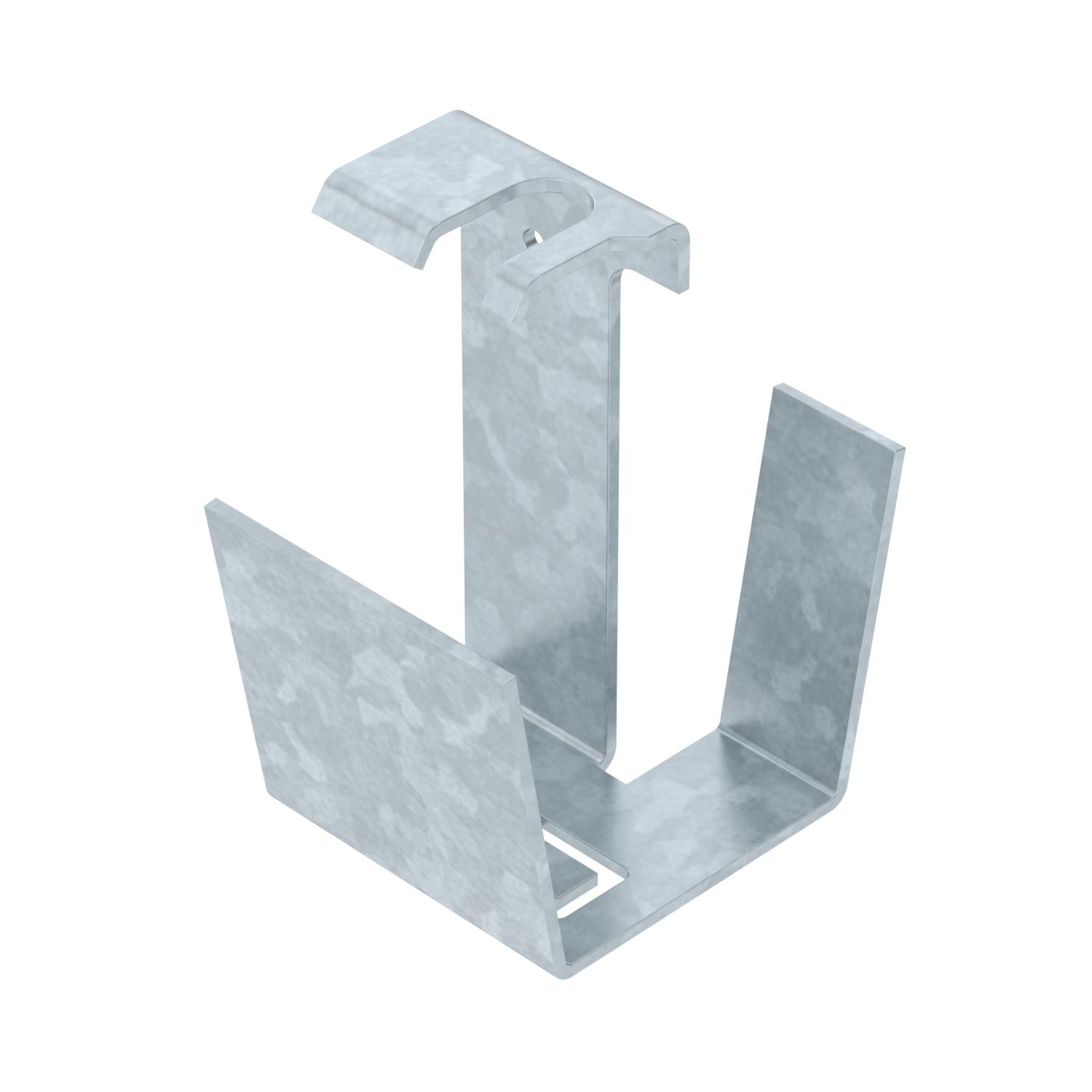

Centre suspension for luminaire support tray, FT
Item no. 6358812 | EAN 4012195671299
- Product description
-
Product descriptionCentral hanger for luminaire support tray, type LTR, for threaded rod and chain suspension.
The central hanger can be used with all cable trays of width 75 mm and side height 60 mm.
-
- Technical data
-
Technical data

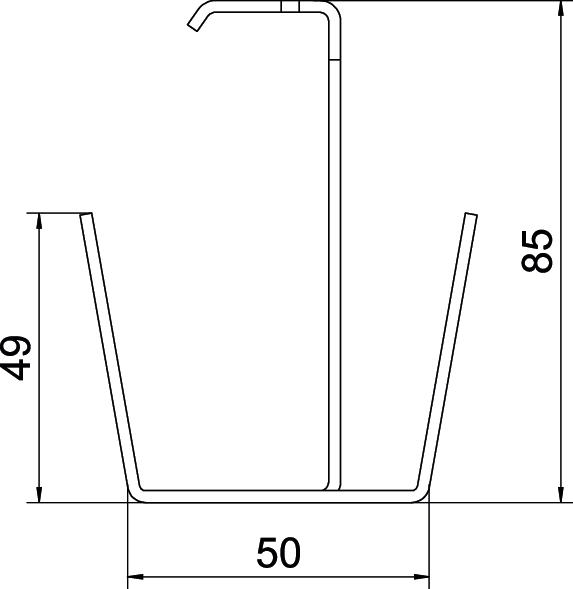

CO2 Footprint (GWP) Cradle-to-Gate 0,3606 kg CO2e / 1 Piece Colour zinc Dimension 50x70x85 Dimension b 75 mm F in kN 0,8 kN for width max. 75 mm for width min. 75 Material Steel Material thickness 2 mm Suitable for metric threaded rod 10 Surface Hot-dip galvanised Width 75 mm - All types
- Downloads
-
Data sheet MAH LTR FT / 6358812 , 0.15MB , pdfEU declaration of conformity MAH LTR FT / 6358812 , 0.11MB , pdfREACH Declaration of conformity MAH LTR FT / 6358812 , 0.12MB , pdfRoHS Declaration of conformity MAH LTR FT / 6358812 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions, luminaire support systems , 0.04MB , pdf
