Chuck jaw, light-duty TKS A4 36 | 10

morepic-1

morepic-2

Chuck jaw, light-duty TKS A4

Item no. 6355835 | EAN 4012196045181

Item no. / Types	6355835 / TKS-L36 M8 A4

Height	36 mm

F in kN	10 kN

Product description

Product description

Chuck jaw with hexagonal nut for direct fastening of structures to steel girders.

The clamping range of the chuck jaw is limited to the maximum fastening thickness of 36 mm.

Technical data

Technical data

Bolt	M8 x 80
Colour	stainless steel
Dimension	M8x80
F in kN	10 kN

Height	36 mm
Material	Stainless steel 1.4571
Thread metric	8

All types

All types

Types	Height	F in kN	Item no.	Quantity	SSU
TKS-L36 M8 A4	36 mm	10 kN	6355835	piece	1 piece

Downloads

Data sheet TKS-L36 M8 A4 / 6355835 , 0.17MB , pdf

Guide KTS cable tray systems , 1.61MB , pdf

Catalogue Cable support systems , 54.52MB , pdf

EU declaration of conformity TKS-L36 M8 A4 / 6355835 , 0.10MB , pdf

Mounting instructions General information on the mounting , 2.65MB , pdf

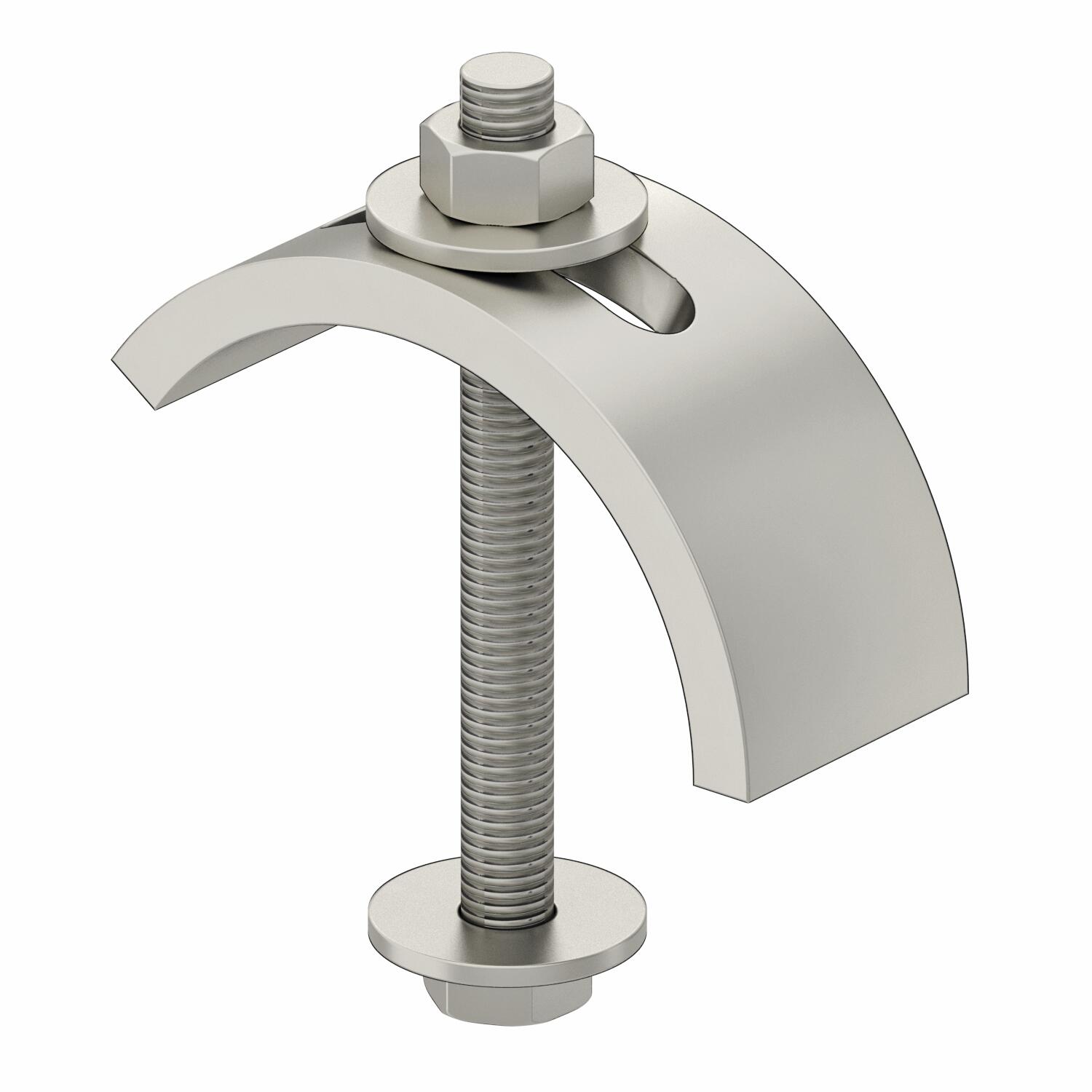

Product graphic TKS-L36 M8 A4 / 6355835, 77.90 kB, jpg

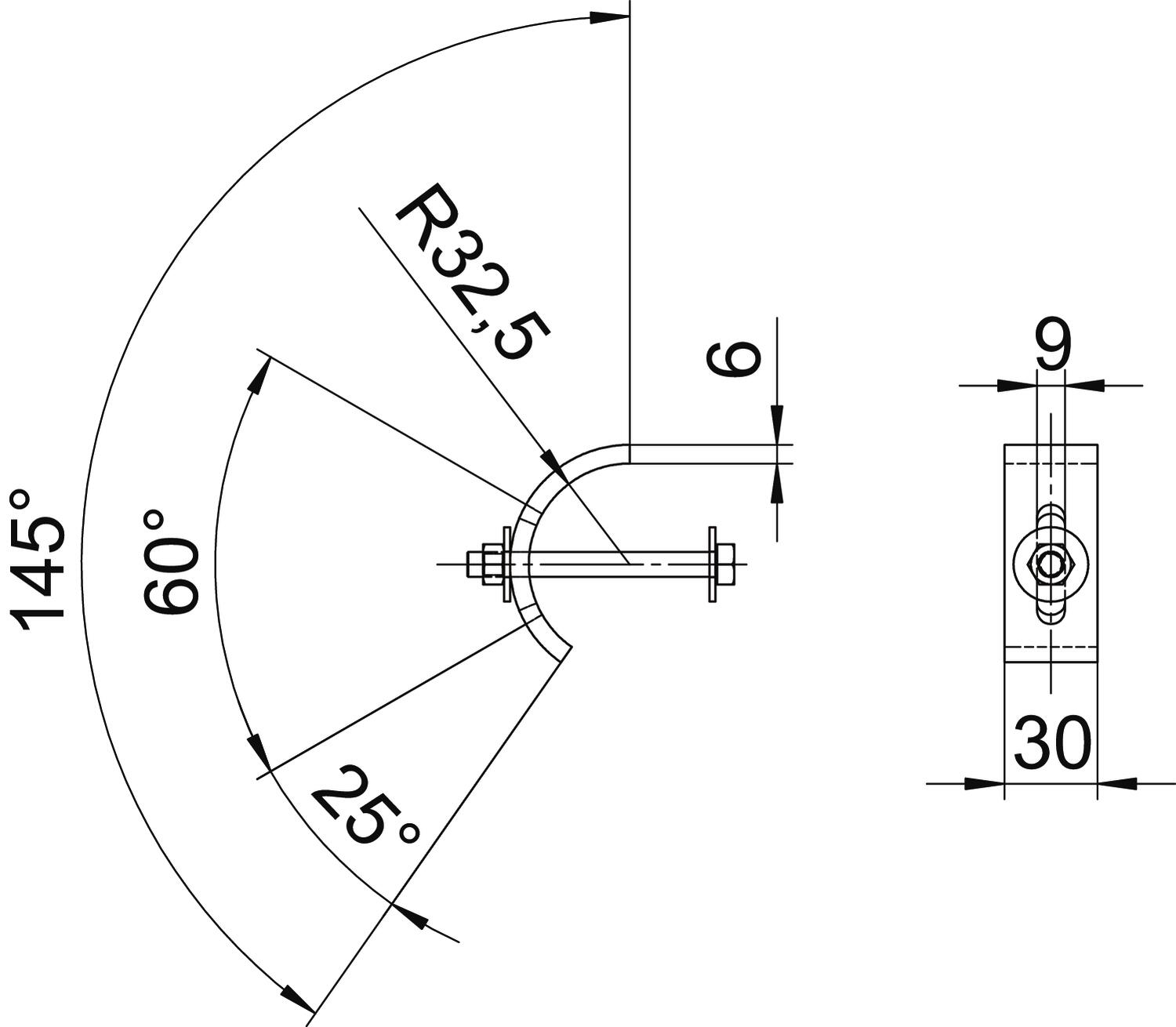

Scale drawing TKS-L36 M8 A4 / 6355835, 81.54 kB, jpg

No invitation to tender text is available for this product.
