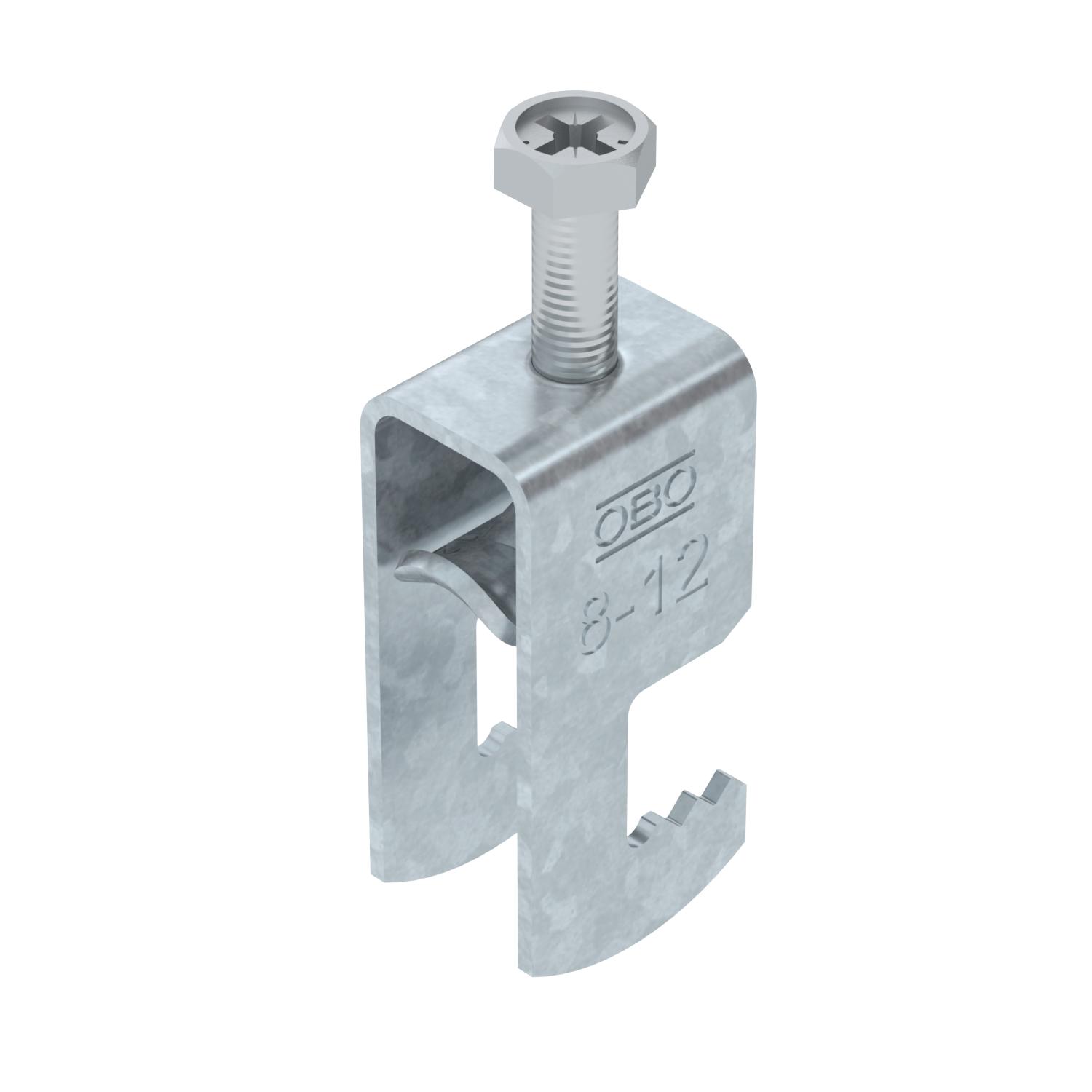

Clamp clip 2056 F-foot, 1-fold, metal pressure sleeve, FT

Item no. 1187402 | EAN 4012196853380

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Clamp clip with F-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on flat bars. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	12 mm
Clamping range D, min.	8 mm
Dimension	08-12mm
For pipe diameter, max.	12 mm
For pipe diameter, min.	8 mm
Halogen-free	yes
Length of external dimensions	28 mm
Material	Steel
Material addition	Steel
Material of trough	Steel

Max. Tightening torque	3 Nm
Mounting type	Flat profile
Number of cables/pipes	1
Plate thickness	1,5 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M6
With counter-trough	no
With metal trough	yes

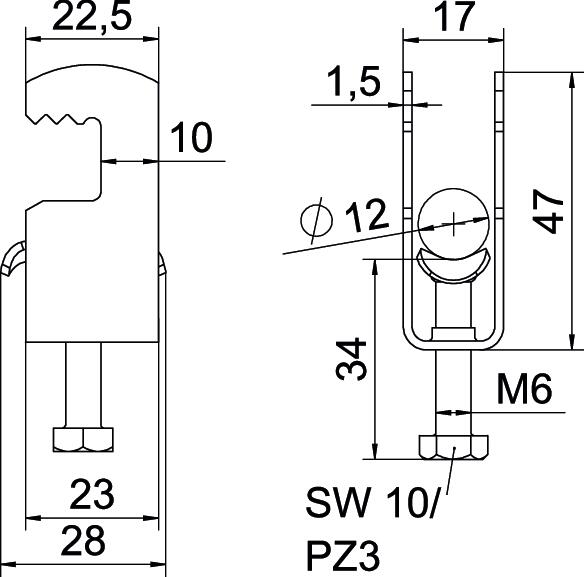

Dimensions

Dimension A	22,5 mm
Dimension B	17 mm
Dimension C	28 mm
Dimension G (mm)	M6
Dimension H	47 mm

Dimension L	34 mm
Dimension t	1,5 mm
Height	47 mm
Length	22,5 mm
Width	17 mm

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-F1-M-12 FT	8 mm	12 mm	3 Nm	1187402	piece	100 piece
BS-F1-M-16 FT	12 mm	16 mm	3 Nm	1187408	piece	100 piece
BS-F1-M-22 FT	16 mm	22 mm	3 Nm	1187414	piece	100 piece
BS-F1-M-28 FT	22 mm	28 mm	3 Nm	1187420	piece	100 piece
BS-F1-M-34 FT	28 mm	34 mm	3 Nm	1187426	piece	100 piece
BS-F1-M-40 FT	34 mm	40 mm	3 Nm	1187432	piece	100 piece
BS-F1-M-46 FT	40 mm	46 mm	5 Nm	1187438	piece	100 piece
BS-F1-M-52 FT	46 mm	52 mm	5 Nm	1187444	piece	100 piece
BS-F1-M-58 FT	52 mm	58 mm	5 Nm	1187450	piece	50 piece
BS-F1-M-64 FT	58 mm	64 mm	5 Nm	1187456	piece	50 piece
