Clamp clip 2056 H-foot, 1-fold, metal pressure sleeve, A2

Item no. 1186156 | EAN 4012196848997

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

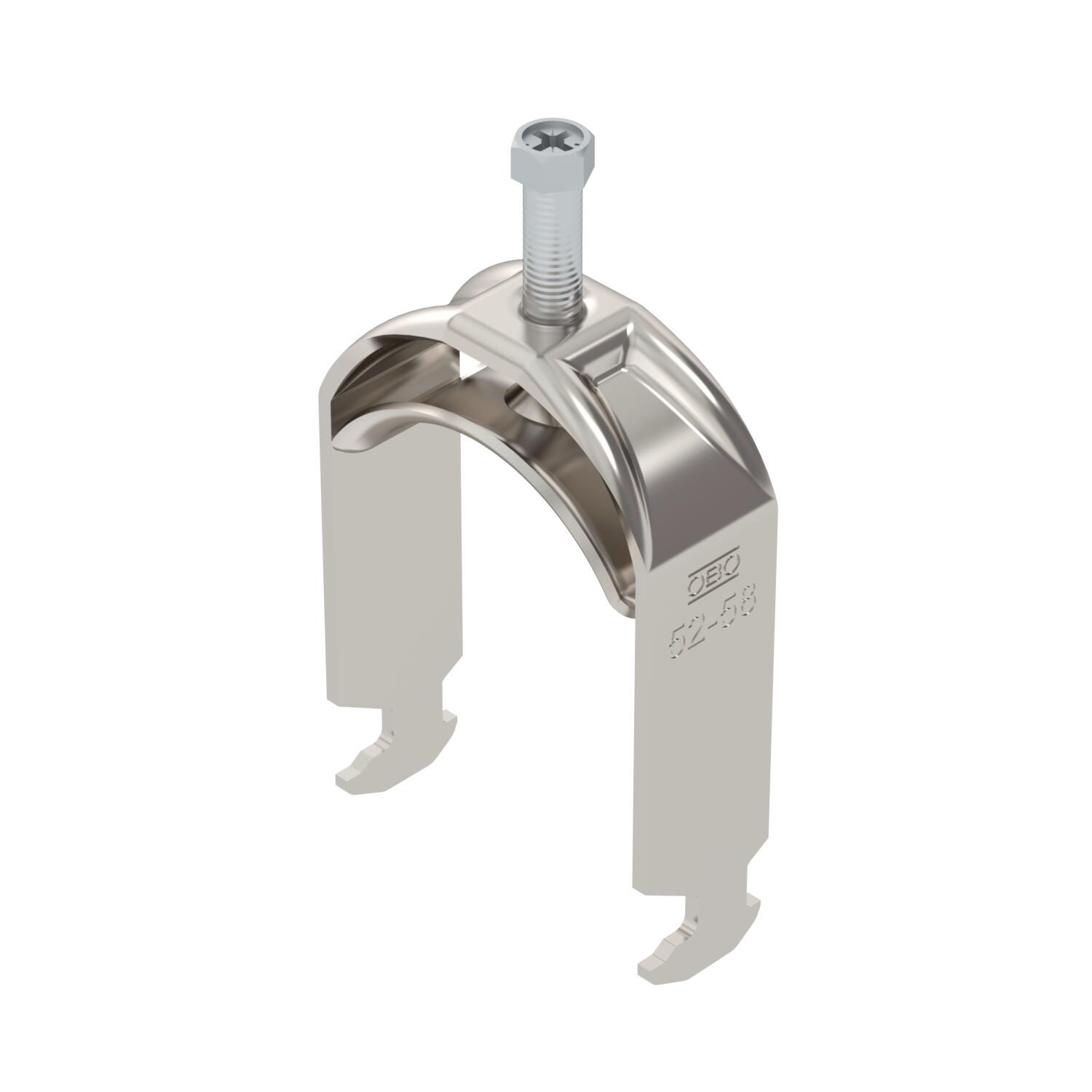

Clamp clip with hammerhead foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	58 mm
Clamping range D, min.	52 mm
Dimension	52-58mm
For pipe diameter, max.	58 mm
For pipe diameter, min.	52 mm
for rail with slot width (with interval), max.	17 mm
for rail with slot width (with interval), min.	16 mm
Halogen-free	yes
Length of external dimensions	33 mm
Maintain electrical functions	yes
Material	Stainless steel
Material addition	Rustproof steel
Material of trough	Rustproof steel

Material quality of trough	Stainless steel 304 (1.4301)
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	2,5 mm
Slot width	10 mm
Surface	Bright, treated
Surface addition	Untreated
Thread	M8
With counter-trough	no
With metal trough	yes
With plastic trough	no

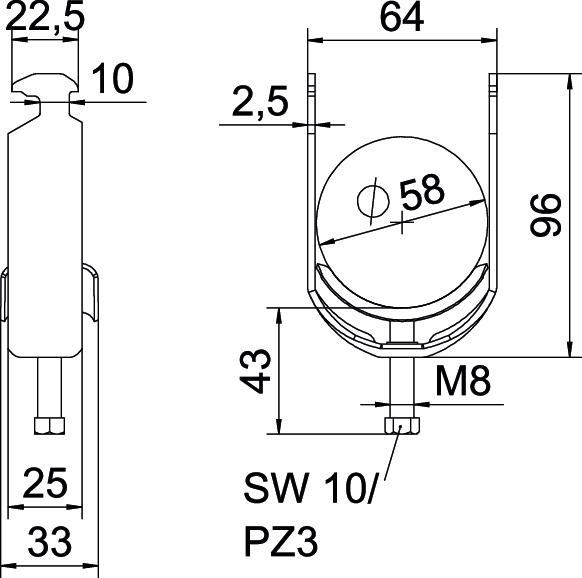

Dimensions

Dimension A	25 mm
Dimension B	64 mm
Dimension C	33 mm
Dimension G (mm)	M8
Dimension H	96 mm

Dimension L	43 mm
Dimension t	2,5 mm
Height	96 mm
Length	25 mm
Width	64 mm

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-H1-M-12 A2	8 mm	12 mm	3 Nm	1186102	piece	50 piece
BS-H1-M-16 A2	12 mm	16 mm	3 Nm	1186109	piece	50 piece
BS-H1-M-22 A2	16 mm	22 mm	3 Nm	1186116	piece	50 piece
BS-H1-M-28 A2	22 mm	28 mm	3 Nm	1186122	piece	25 piece
BS-H1-M-34 A2	28 mm	34 mm	3 Nm	1186129	piece	25 piece
BS-H1-M-40 A2	34 mm	40 mm	3 Nm	1186136	piece	25 piece
BS-H1-M-46 A2	40 mm	46 mm	5 Nm	1186142	piece	25 piece
BS-H1-M-52 A2	46 mm	52 mm	5 Nm	1186149	piece	25 piece
BS-H1-M-58 A2	52 mm	58 mm	5 Nm	1186156	piece	15 piece
BS-H1-M-64 A2	58 mm	64 mm	5 Nm	1186162	piece	15 piece
BS-H1-M-70 A2	64 mm	70 mm	5 Nm	1186169	piece	15 piece
BS-H1-M-76 A2	70 mm	76 mm	5 Nm	1186176	piece	10 piece
