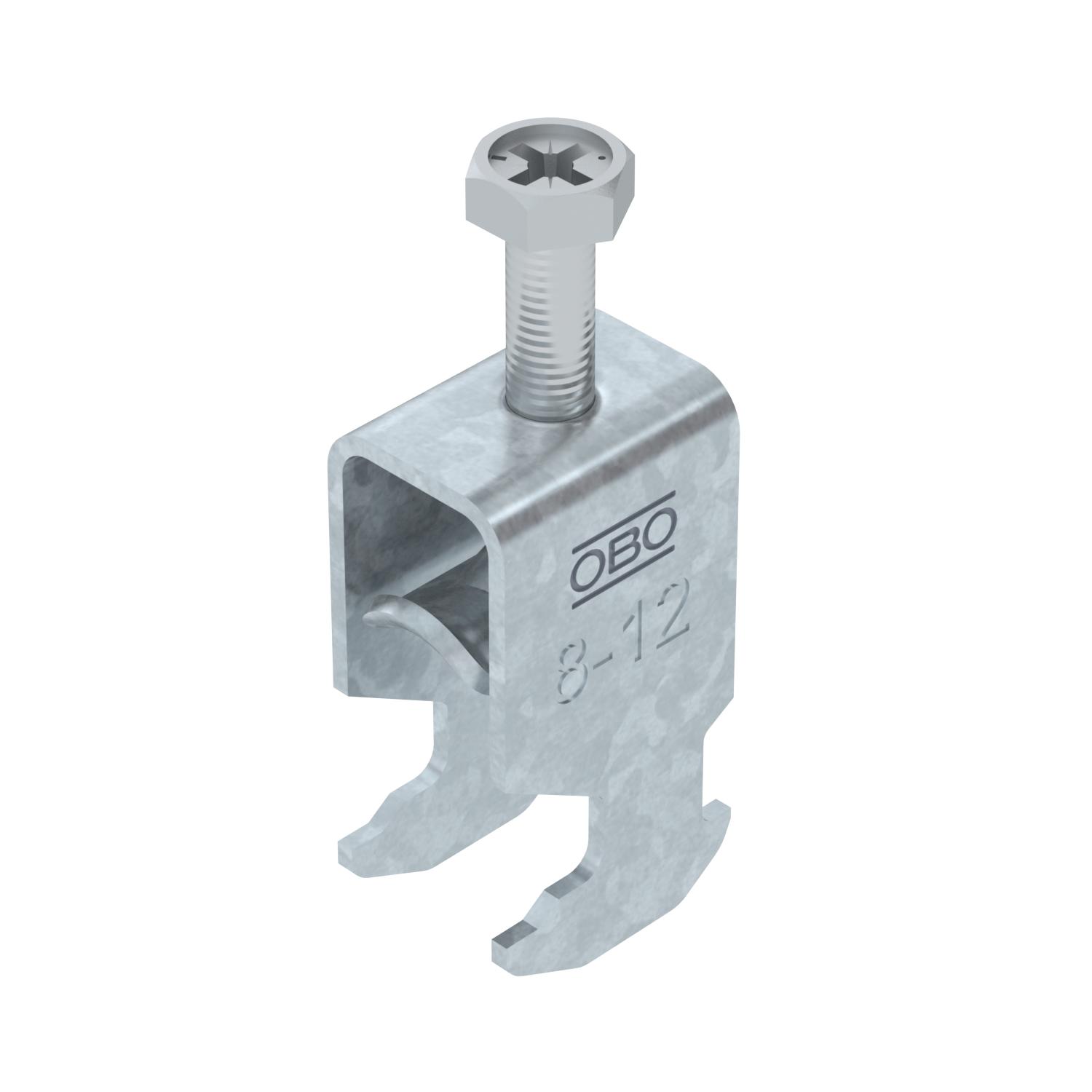

Clamp clip 2056 H-foot, 1-fold, metal pressure sleeve, FT

Item no. 1186002 | EAN 4012196846900

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Clamp clip with hammerhead foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. The counter-sleeve must be ordered separately.

Technical data

Technical data

Clamping range D, max.	12 mm
Clamping range D, min.	8 mm
Dimension	08-12mm
For pipe diameter, max.	12 mm
For pipe diameter, min.	8 mm
for rail with slot width (with interval), max.	17 mm
for rail with slot width (with interval), min.	16 mm
Halogen-free	yes
Length of external dimensions	28 mm
Maintain electrical functions	yes
Material	Steel
Material addition	Steel

Material of trough	Steel
Max. Tightening torque	3 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	1,5 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M6
With counter-trough	no
With metal trough	yes
With plastic trough	no

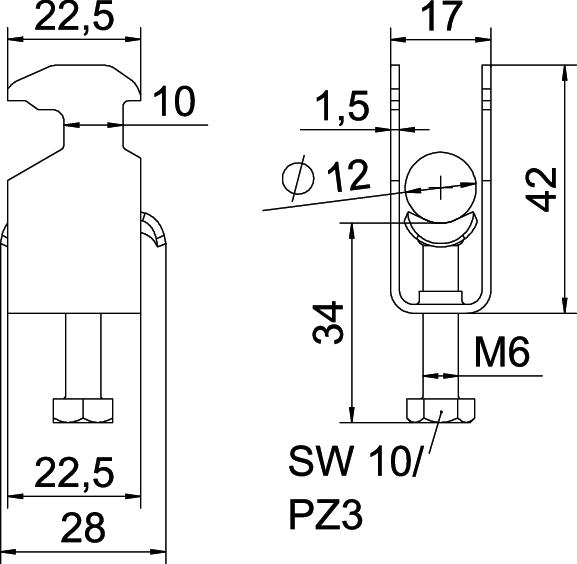

Dimensions

Dimension A	22,5 mm
Dimension B	17 mm
Dimension C	28 mm
Dimension G (mm)	M6
Dimension H	42 mm

Dimension L	34 mm
Dimension t	1,5 mm
Height	42 mm
Length	22,5 mm
Width	17 mm

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-H1-M-12 FT	8 mm	12 mm	3 Nm	1186002	piece	100 piece
BS-H1-M-16 FT	12 mm	16 mm	3 Nm	1186009	piece	100 piece
BS-H1-M-22 FT	16 mm	22 mm	3 Nm	1186016	piece	100 piece
BS-H1-M-28 FT	22 mm	28 mm	3 Nm	1186022	piece	100 piece
BS-H1-M-34 FT	28 mm	34 mm	3 Nm	1186029	piece	100 piece
BS-H1-M-40 FT	34 mm	40 mm	3 Nm	1186036	piece	100 piece
BS-H1-M-46 FT	40 mm	46 mm	5 Nm	1186042	piece	100 piece
BS-H1-M-52 FT	46 mm	52 mm	5 Nm	1186049	piece	100 piece
BS-H1-M-58 FT	52 mm	58 mm	5 Nm	1186056	piece	100 piece
BS-H1-M-64 FT	58 mm	64 mm	5 Nm	1186062	piece	100 piece
BS-H1-M-70 FT	64 mm	70 mm	5 Nm	1186069	piece	50 piece
BS-H1-M-76 FT	70 mm	76 mm	5 Nm	1186076	piece	25 piece
BS-H1-M-82 FT	76 mm	82 mm	5 Nm	1186082	piece	25 piece
BS-H1-M-90 FT	82 mm	90 mm	5 Nm	1186089	piece	25 piece
BS-H1-M-100 FT	90 mm	100 mm	5 Nm	1186097	piece	25 piece
