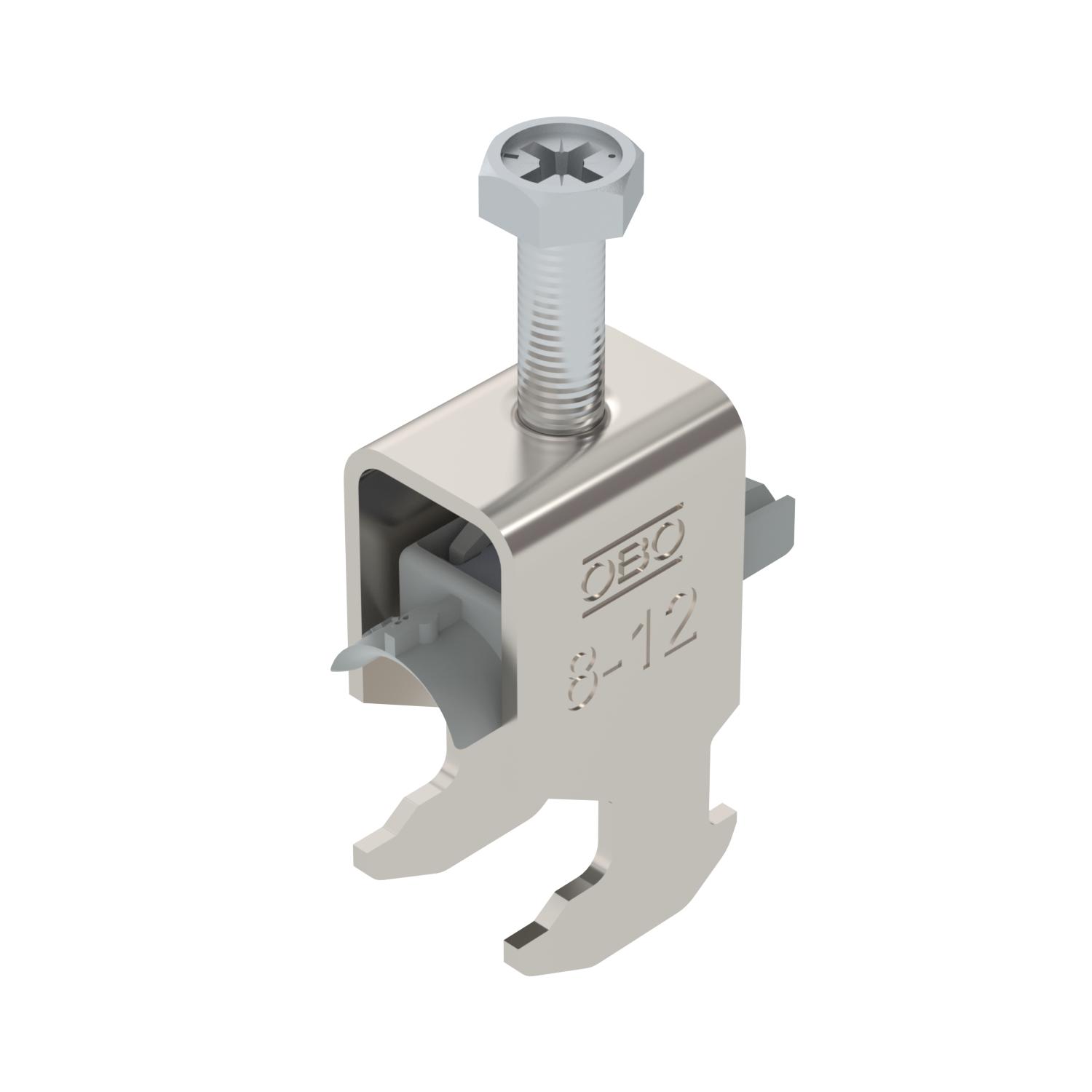

Clamp clip 2056 H-foot, 1-fold, plastic pressure sleeve, A2

Item no. 1186302 | EAN 4012196847617

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Clamp clip with hammerhead foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	12 mm
Clamping range D, min.	8 mm
Dimension	08-12mm
For pipe diameter, max.	12 mm
For pipe diameter, min.	8 mm
for rail with slot width (with interval), max.	17 mm
for rail with slot width (with interval), min.	16 mm
Halogen-free	yes
Length of external dimensions	34 mm
Material	Stainless steel
Material addition	Rustproof steel
Material of trough	Plastic

Material quality of trough	Polypropylene
Max. Tightening torque	3 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	1,5 mm
Slot width	10 mm
Surface	Bright, treated
Surface addition	Untreated
Thread	M6
With counter-trough	no
With plastic trough	yes

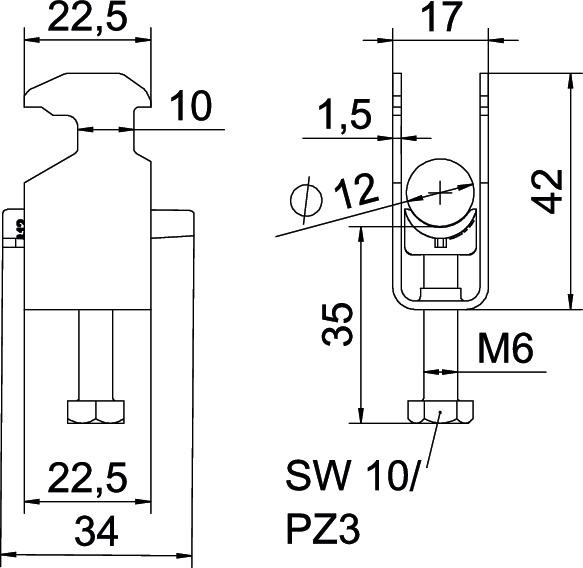

Dimensions

Dimension A	22,5 mm
Dimension B	17 mm
Dimension C	34 mm
Dimension G (mm)	M6
Dimension H	42 mm

Dimension L	35 mm
Dimension t	1,5 mm
Height	42 mm
Length	22,5 mm
Width	17 mm

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-H1-K-12 A2	8 mm	12 mm	3 Nm	1186302	piece	50 piece
BS-H1-K-16 A2	12 mm	16 mm	3 Nm	1186309	piece	50 piece
BS-H1-K-22 A2	16 mm	22 mm	3 Nm	1186316	piece	50 piece
BS-H1-K-28 A2	22 mm	28 mm	3 Nm	1186322	piece	50 piece
BS-H1-K-34 A2	28 mm	34 mm	3 Nm	1186329	piece	50 piece
BS-H1-K-40 A2	34 mm	40 mm	3 Nm	1186336	piece	25 piece
BS-H1-K-46 A2	40 mm	46 mm	5 Nm	1186342	piece	25 piece
BS-H1-K-52 A2	46 mm	52 mm	5 Nm	1186349	piece	25 piece
BS-H1-K-58 A2	52 mm	58 mm	5 Nm	1186356	piece	25 piece
BS-H1-K-64 A2	58 mm	64 mm	5 Nm	1186362	piece	15 piece
BS-H1-K-70 A2	64 mm	70 mm	5 Nm	1186369	piece	15 piece
BS-H1-K-76 A2	70 mm	76 mm	5 Nm	1186376	piece	10 piece
