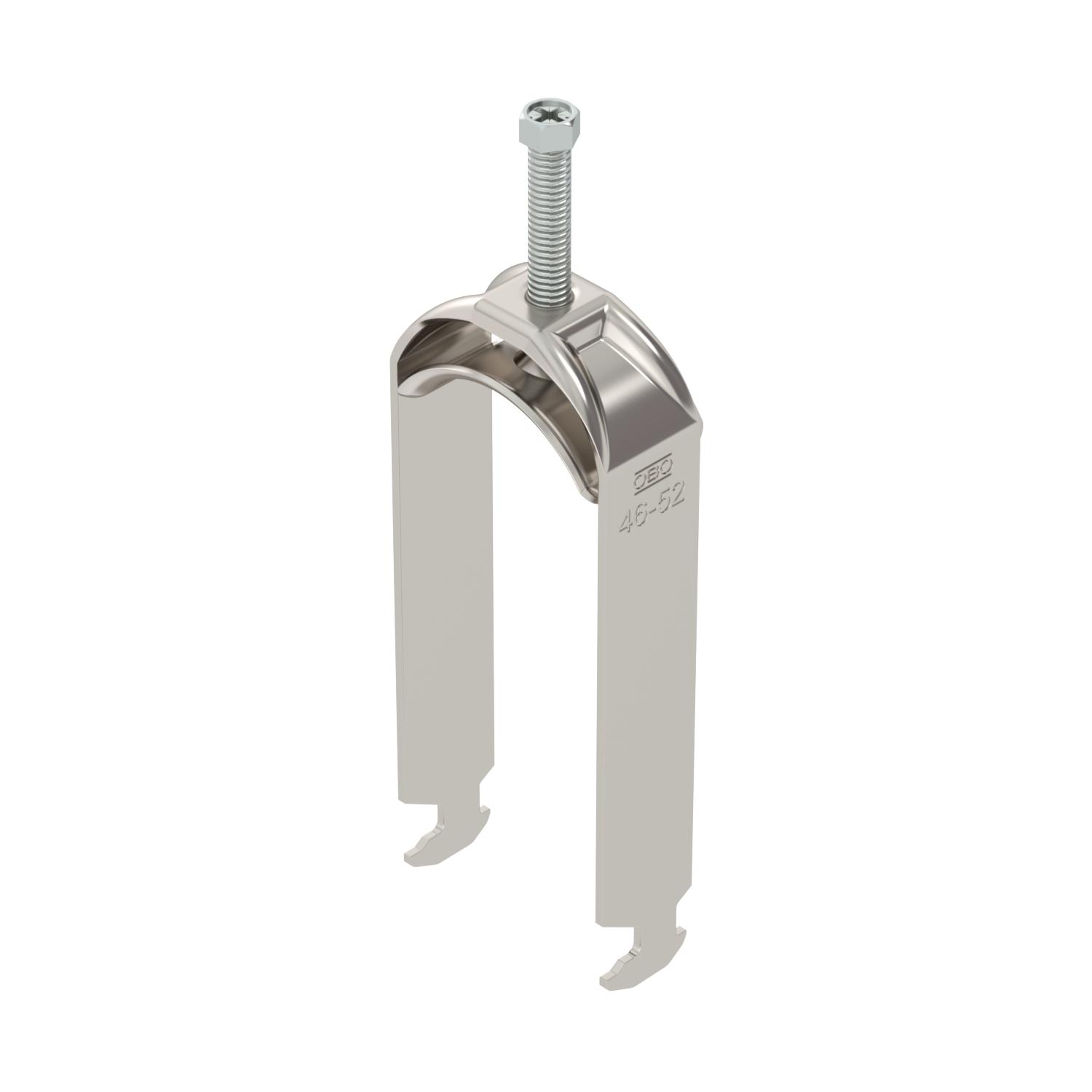

Clamp clip 2056 H-foot, 2-fold, metal pressure sleeve, A2

Item no. 1186150 | EAN 4012196848980

Product description

Product description

Clamp clip with hammerhead foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 2 single cables on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 16–17 mm
  • Clamp clip for C profile rail, slot width 16–17 mm
  • Function maintenance class E30
  • Function maintenance class E90
Technical data

Technical data

Clamping range D, max. 52 mm
Clamping range D, min. 46 mm
Dimension 46-52mm
For pipe diameter, max. 52 mm
For pipe diameter, min. 46 mm
for rail with slot width (with interval), max. 17 mm
for rail with slot width (with interval), min. 16 mm
Halogen-free yes
Length of external dimensions 33 mm
Material Stainless steel
Material addition Rustproof steel
Material of trough Rustproof steel
Material quality of trough Stainless steel 304 (1.4301)
Max. Tightening torque 5 Nm
Mounting type Profile rail
Number of cables/pipes 2
Plate thickness 2 mm
Slot width 10 mm
Surface Bright, treated
Surface addition Untreated
Thread M8
With counter-trough no
With metal trough yes
With plastic trough no

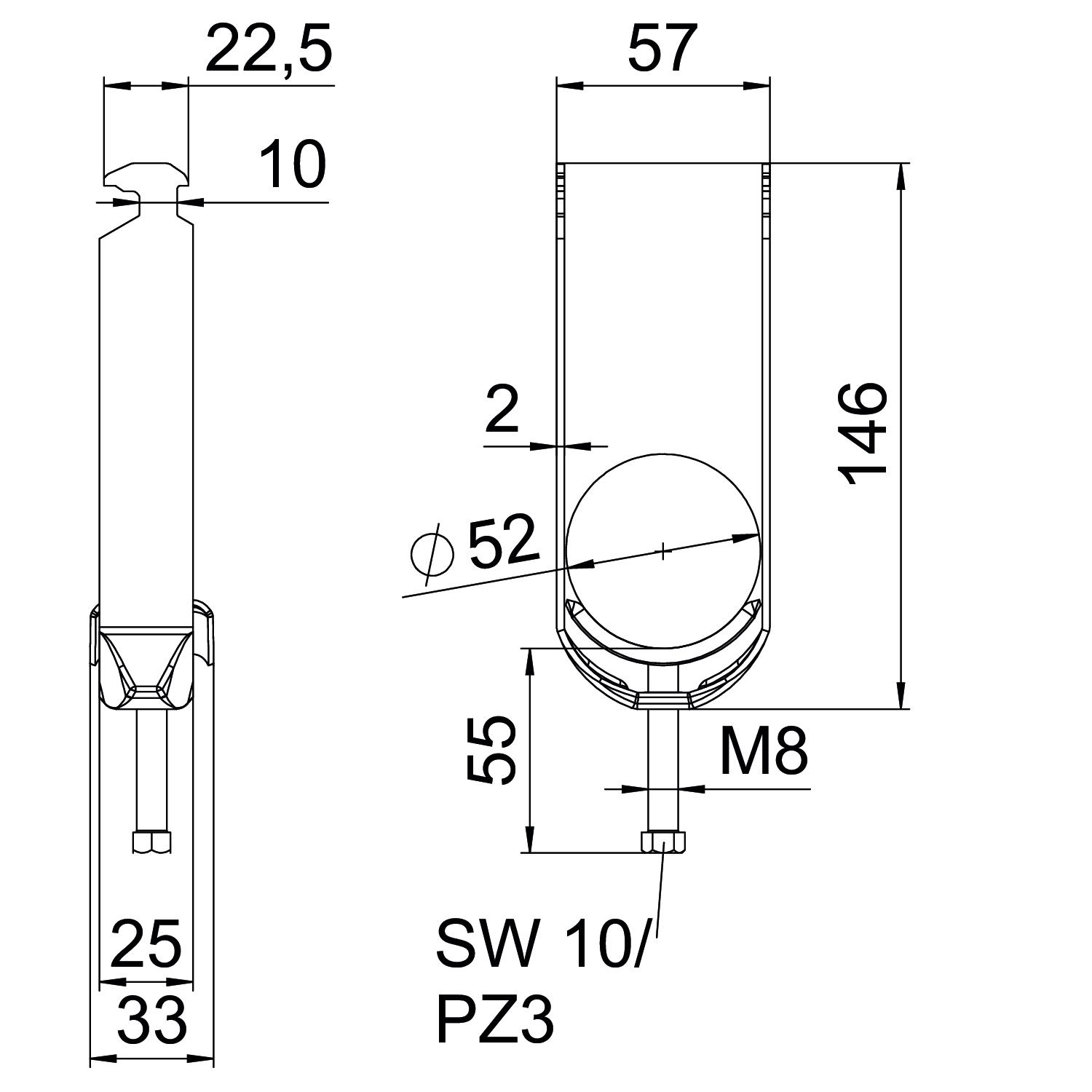

Dimensions

Dimension A 25 mm
Dimension B 57 mm
Dimension C 33 mm
Dimension G (mm) M8
Dimension H 146 mm
Dimension L 55 mm
Dimension t 2 mm
Height 146 mm
Length 25 mm
Width 57 mm
All types

All types

Types Clamping range D, min. Clamping range D, max. Max. Tightening torque Item no. Quantity SSU
BS-H2-M-12 A2 8 mm 12 mm 3 Nm 1186103
50 piece
BS-H2-M-16 A2 12 mm 16 mm 3 Nm 1186110
50 piece
BS-H2-M-22 A2 16 mm 22 mm 3 Nm 1186117
50 piece
BS-H2-M-28 A2 22 mm 28 mm 3 Nm 1186123
50 piece
BS-H2-M-34 A2 28 mm 34 mm 3 Nm 1186130
50 piece
BS-H2-M-40 A2 34 mm 40 mm 3 Nm 1186137
25 piece
BS-H2-M-46 A2 40 mm 46 mm 5 Nm 1186143
25 piece
BS-H2-M-52 A2 46 mm 52 mm 5 Nm 1186150
25 piece
BS-H2-M-58 A2 52 mm 58 mm 5 Nm 1186157
25 piece
BS-H2-M-64 A2 58 mm 64 mm 5 Nm 1186163
15 piece
