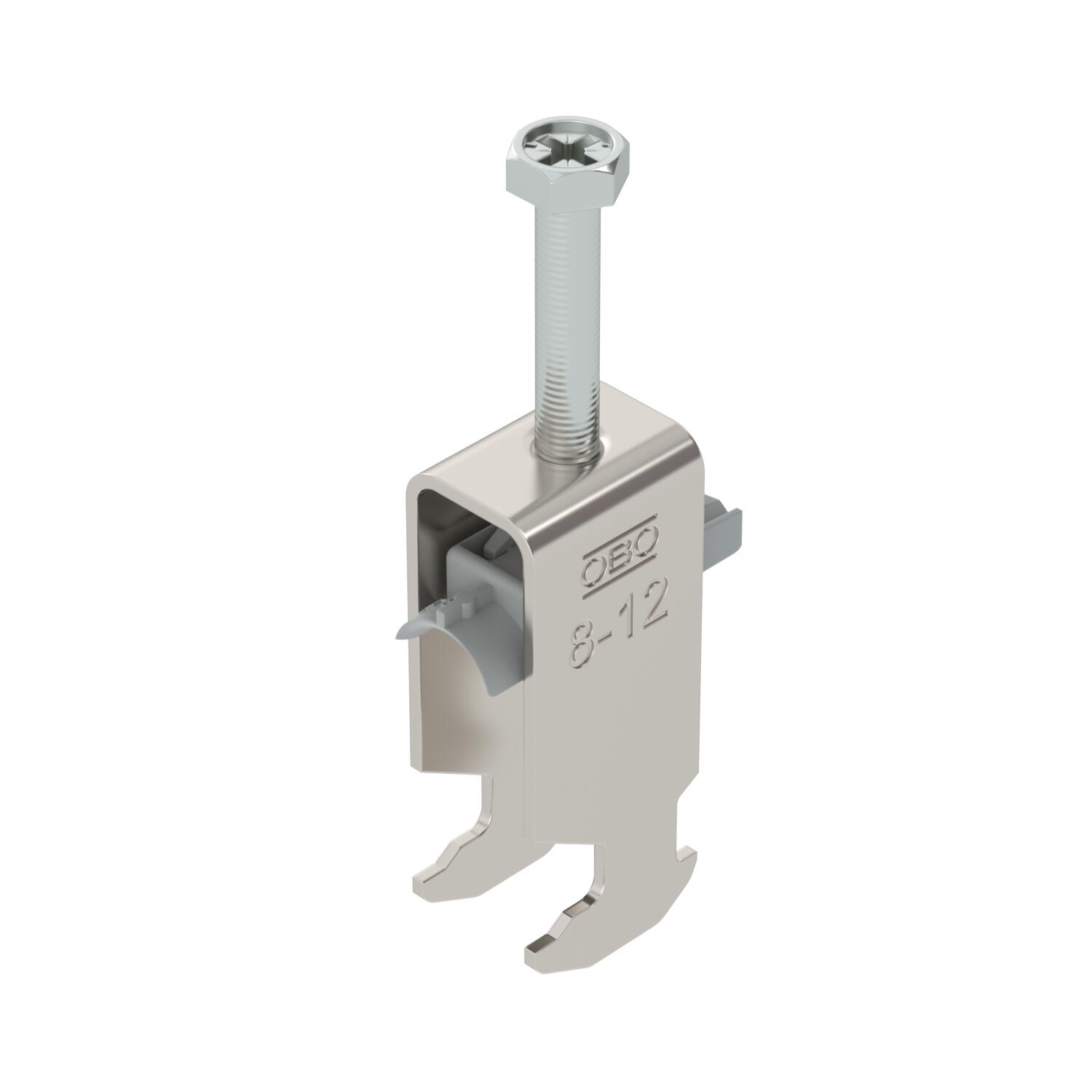

Clamp clip 2056 H-foot, 2-fold, plastic pressure sleeve, A2

Item no. 1186303 | EAN 4012196847624

Product description

Product description

Clamp clip with hammerhead foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 2 single cables on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 16–17 mm
  • Clamp clip for C profile rail, slot width 16–17 mm
Technical data

Technical data

Clamping range D, max. 12 mm
Clamping range D, min. 8 mm
Dimension 08-12mm
For pipe diameter, max. 12 mm
For pipe diameter, min. 8 mm
for rail with slot width (with interval), max. 17 mm
for rail with slot width (with interval), min. 16 mm
Halogen-free yes
Length of external dimensions 34 mm
Material Stainless steel
Material addition Rustproof steel
Material of trough Plastic
Material quality of trough Polypropylene
Max. Tightening torque 3 Nm
Mounting type Profile rail
Number of cables/pipes 2
Plate thickness 1,5 mm
Slot width 10 mm
Surface Bright, treated
Surface addition Untreated
Thread M6
With counter-trough no
With metal trough no
With plastic trough yes

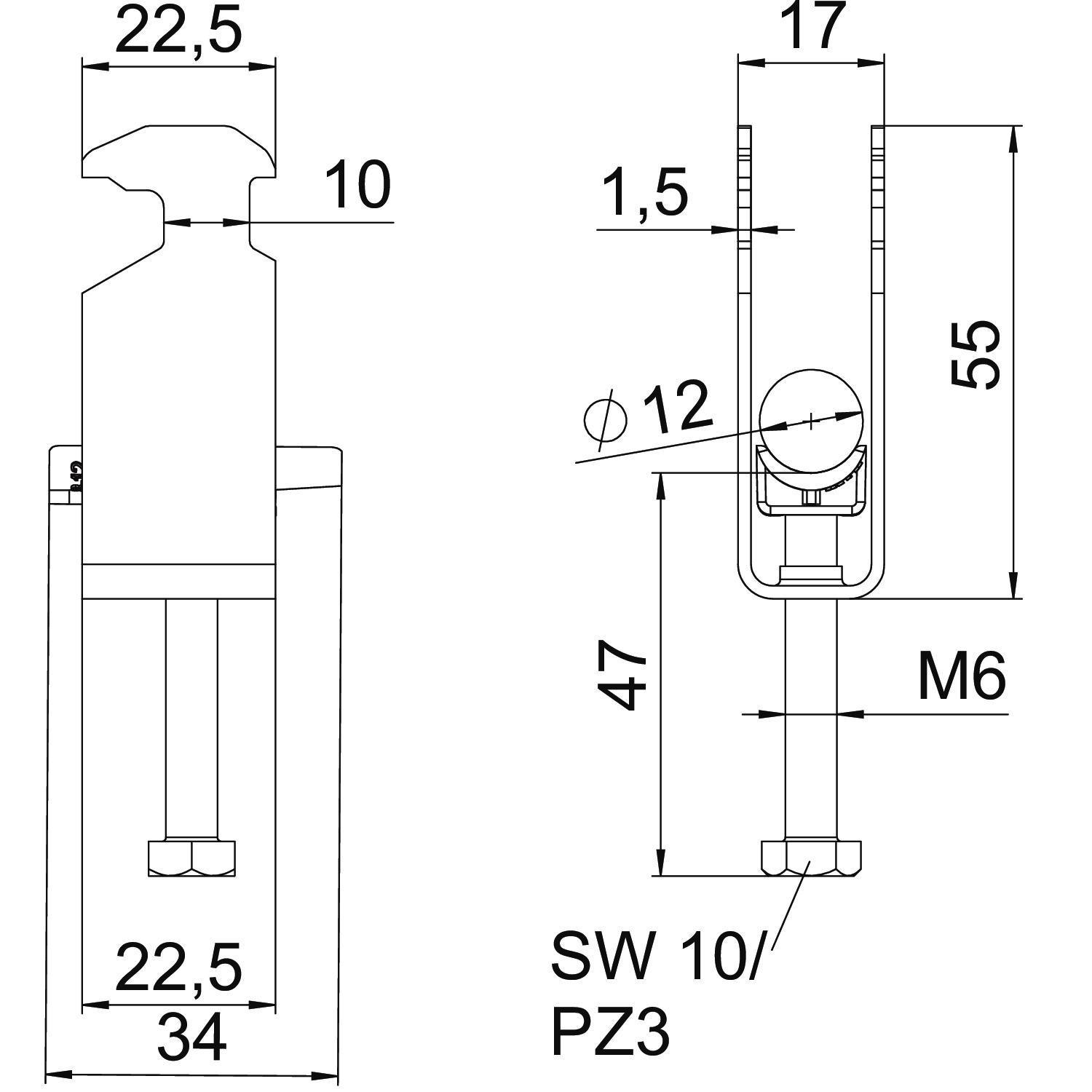

Dimensions

Dimension A 22,5 mm
Dimension B 17 mm
Dimension C 34 mm
Dimension G (mm) M6
Dimension H 55 mm
Dimension L 47 mm
Dimension t 1,5 mm
Height 55 mm
Length 22,5 mm
Width 17 mm
All types

All types

Types Clamping range D, min. Clamping range D, max. Max. Tightening torque Item no. Quantity SSU
BS-H2-K-12 A2 8 mm 12 mm 3 Nm 1186303
50 piece
BS-H2-K-16 A2 12 mm 16 mm 3 Nm 1186310
50 piece
BS-H2-K-22 A2 16 mm 22 mm 3 Nm 1186317
50 piece
BS-H2-K-28 A2 22 mm 28 mm 3 Nm 1186323
50 piece
BS-H2-K-34 A2 28 mm 34 mm 3 Nm 1186330
50 piece
BS-H2-K-40 A2 34 mm 40 mm 3 Nm 1186337
25 piece
BS-H2-K-46 A2 40 mm 46 mm 5 Nm 1186343
25 piece
BS-H2-K-52 A2 46 mm 52 mm 5 Nm 1186350
25 piece
BS-H2-K-58 A2 52 mm 58 mm 5 Nm 1186357
25 piece
BS-H2-K-64 A2 58 mm 64 mm 5 Nm 1186363
15 piece
