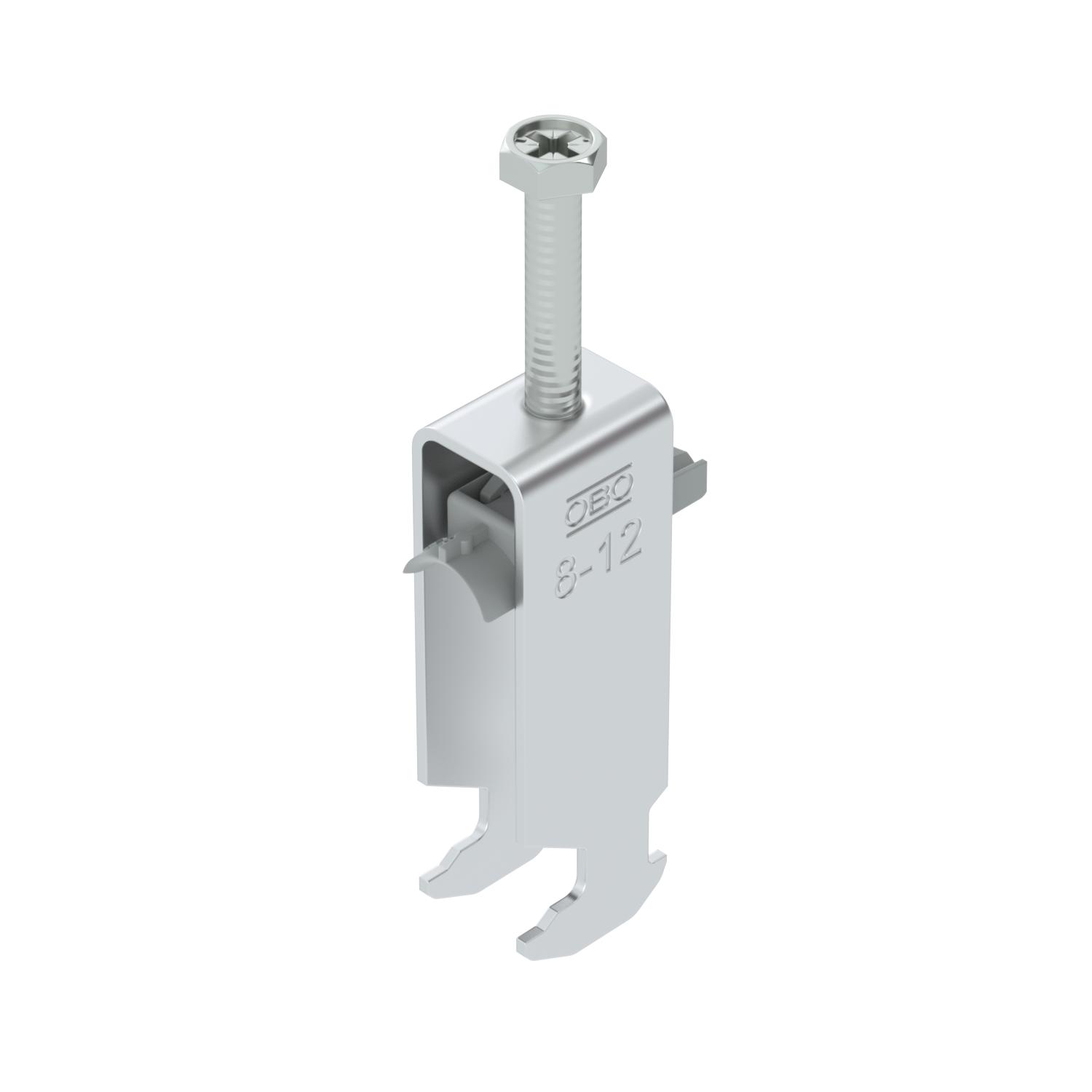

Clamp clip 2056 H-foot, 3-fold, plastic pressure sleeve, AI

Item no. 1186404 | EAN 4012196848133

Product description

Product description

Clamp clip with hammerhead foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 3 single cables on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 16–17 mm
  • Clamp clip for C profile rail, slot width 16–17 mm
Technical data

Technical data

Clamping range D, max. 12 mm
Clamping range D, min. 8 mm
Dimension 08-12mm
For pipe diameter, max. 12 mm
For pipe diameter, min. 8 mm
for rail with slot width (with interval), max. 17 mm
for rail with slot width (with interval), min. 16 mm
Halogen-free yes
Length of external dimensions 34 mm
Material Aluminium
Material addition Aluminium
Material of trough Plastic
Material quality of trough Polypropylene
Max. Tightening torque 3 Nm
Mounting type Profile rail
Number of cables/pipes 3
Plate thickness 1,5 mm
Slot width 10 mm
Surface addition Untreated
Thread M6
With counter-trough no
With metal trough no
With plastic trough yes

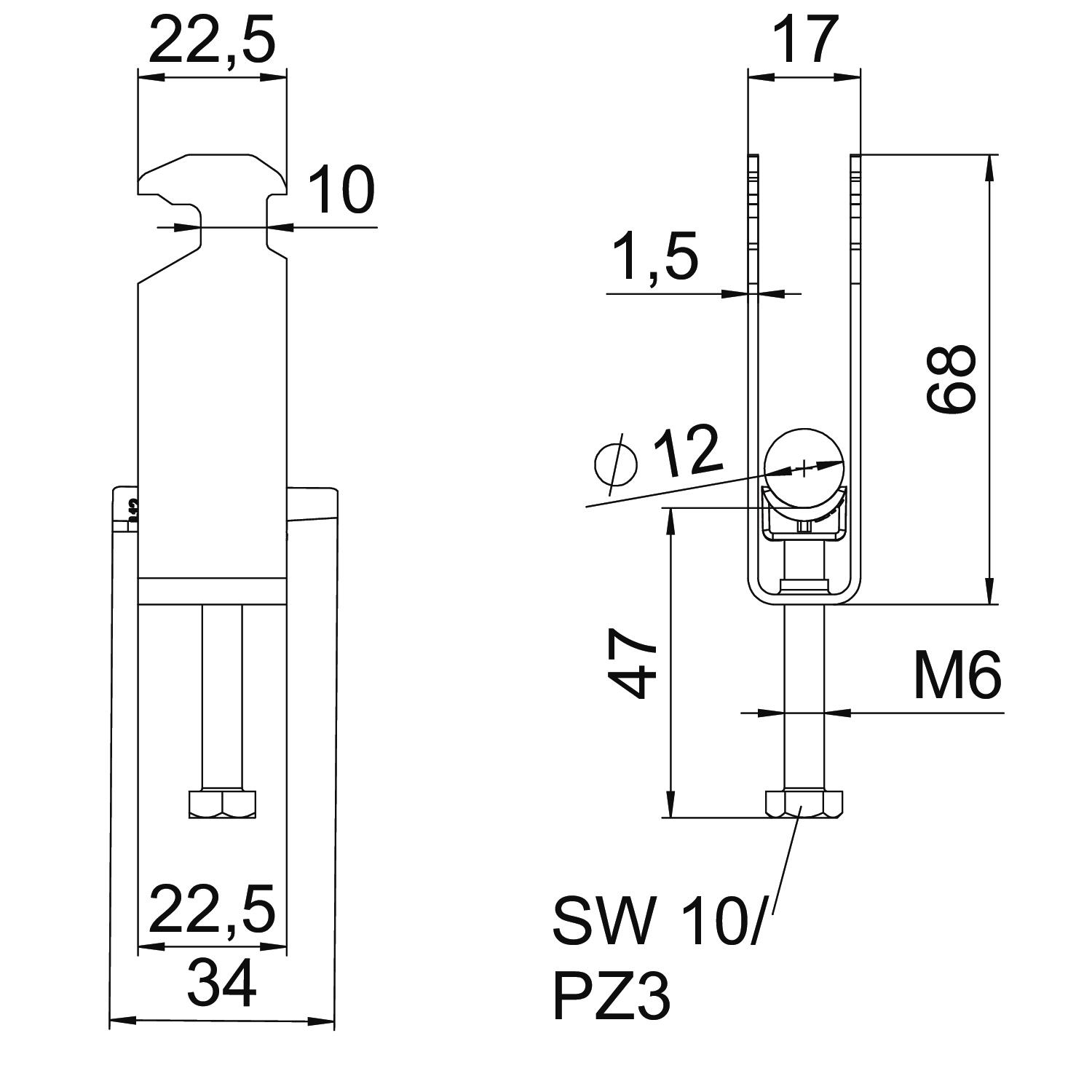

Dimensions

Dimension A 22,5 mm
Dimension B 17 mm
Dimension C 34 mm
Dimension G (mm) M6
Dimension H 68 mm
Dimension L 47 mm
Dimension t 1,5 mm
Height 68 mm
Length 22,5 mm
Width 17 mm
All types

All types

Types Clamping range D, min. Clamping range D, max. Max. Tightening torque Item no. Quantity SSU
BS-H3-K-12 ALU 8 mm 12 mm 3 Nm 1186404
50 piece
BS-H3-K-16 ALU 12 mm 16 mm 3 Nm 1186411
50 piece
BS-H3-K-22 ALU 16 mm 22 mm 2 Nm 1186418
50 piece
BS-H3-K-28 ALU 22 mm 28 mm 2 Nm 1186424
50 piece
BS-H3-K-34 ALU 28 mm 34 mm 2 Nm 1186431
50 piece
