- Product description
-
Product description

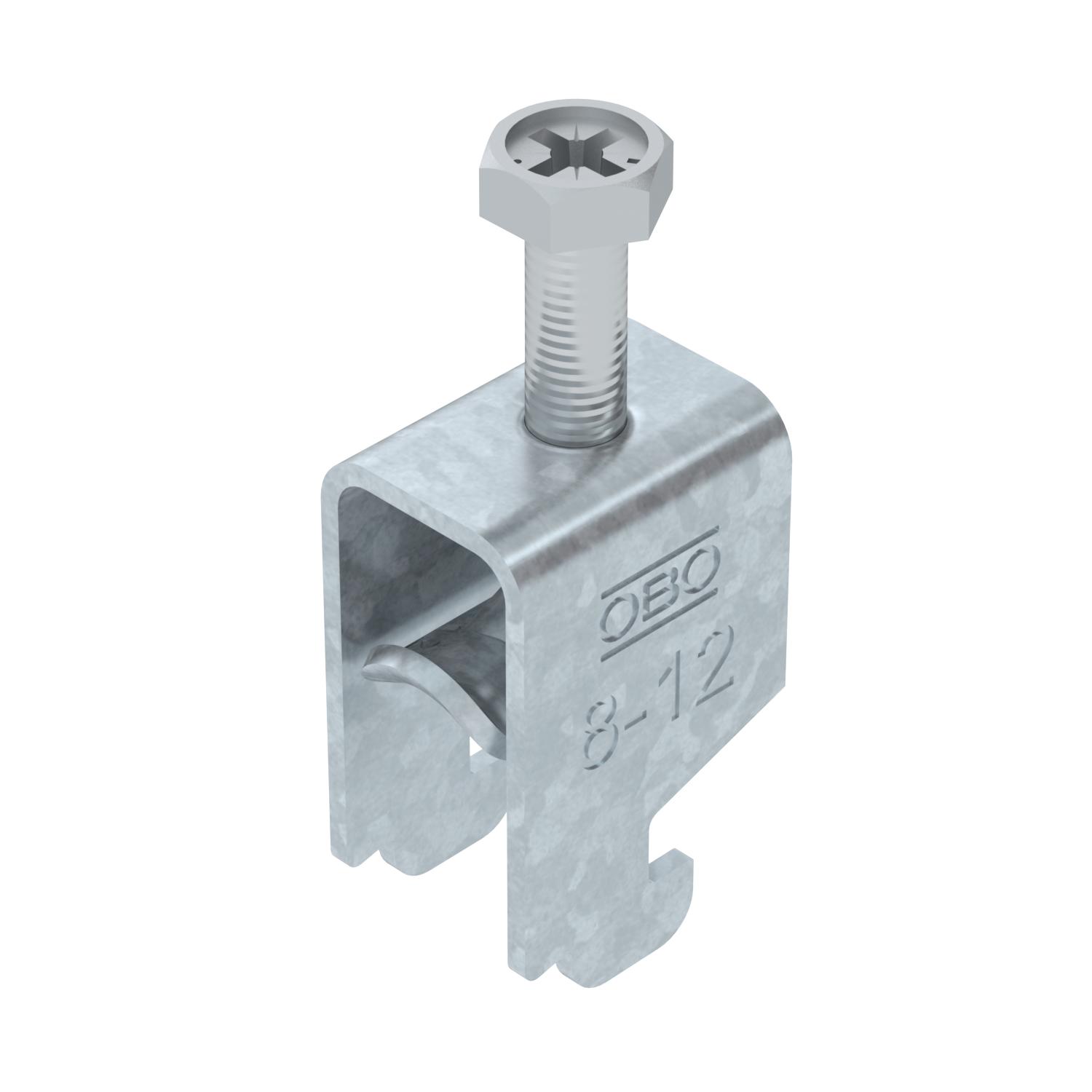

Clamp clip with N-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 11‒12 mm With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.
- Technical data
-
Technical data
Clamping range D, max. 12 mm Clamping range D, min. 8 mm Dimension 08-12mm For pipe diameter, max. 12 mm For pipe diameter, min. 8 mm for rail with slot width (with interval), max. 12 mm for rail with slot width (with interval), min. 11 mm Halogen-free yes Length of external dimensions 28 mm Material Steel Material addition Steel Material of trough Steel Max. Tightening torque 3 Nm Mounting type Profile rail Number of cables/pipes 1 Plate thickness 1,5 mm Slot width 10 mm Surface Hot-dip galvanised Surface addition hot galvanised Thread M6 With counter-trough no With metal trough yes Dimensions

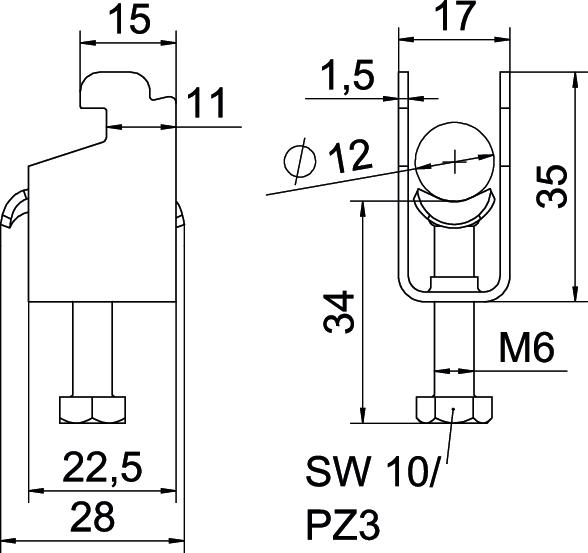

Dimension A 22 mm Dimension B 17 mm Dimension C 28 mm Dimension G (mm) M6 Dimension H 35 mm Dimension L 34 mm Dimension t 1,5 mm Height 35 mm Length 22,5 mm Width 17 mm - All types
-
All types
- Downloads
-
Data sheet BS-N1-M-12 FT / 1187002 , 0.09MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity BS-N1-M-12 FT / 1187002 , 0.15MB , pdfREACH Declaration of conformity BS-N1-M-12 FT / 1187002 , 0.12MB , pdfRoHS Declaration of conformity BS-N1-M-12 FT / 1187002 , 0.12MB , pdfMounting instructions Bügelschellen N-Fuß Metall , 1.96MB , pdf
