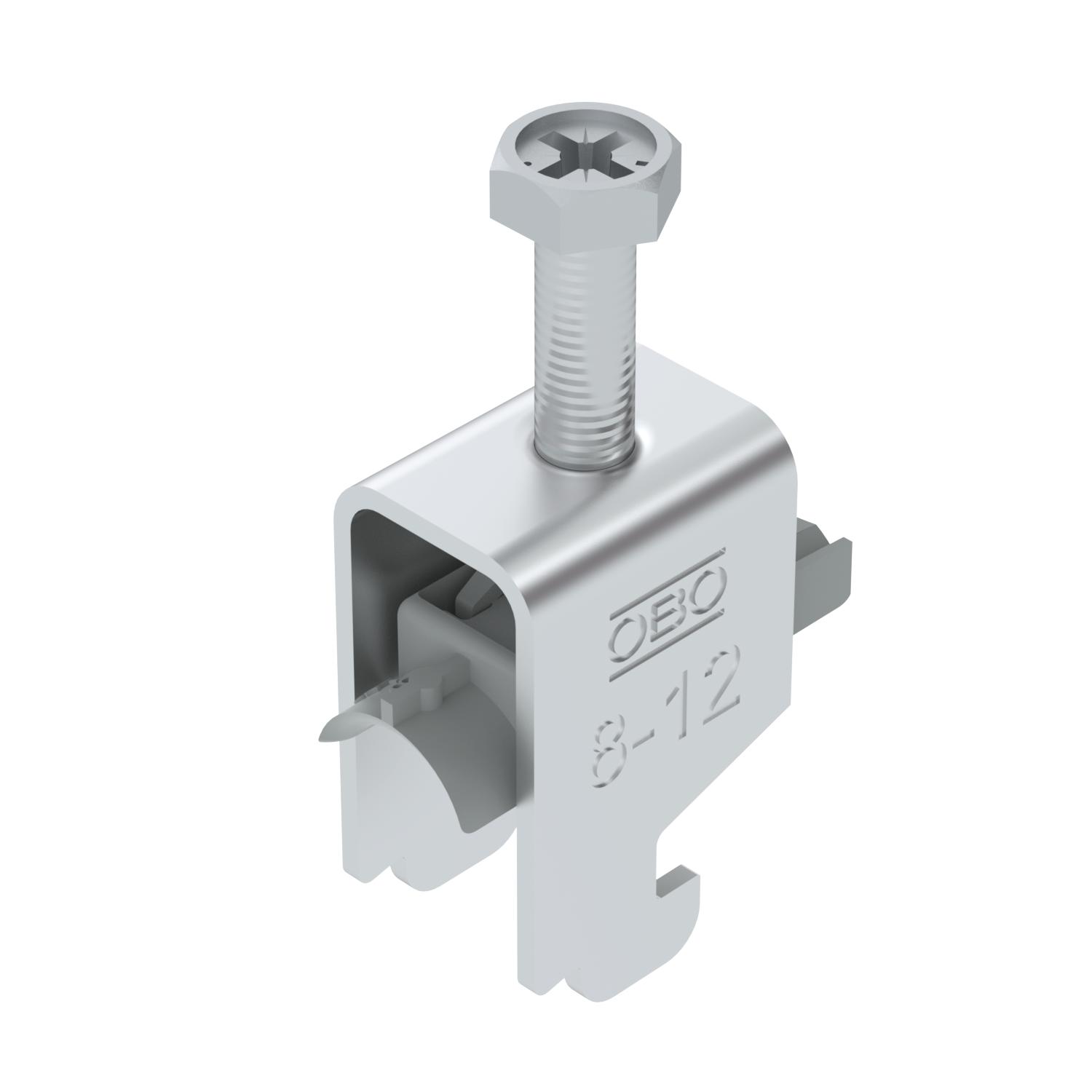

Clamp clip 2056 N-foot, 1-fold, plastic pressure sleeve, Al

Item no. 1187302 | EAN 4012196853069

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque	2 Nm

Product description

Product description

Clamp clip with N-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 11‒12 mm With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	12 mm
Clamping range D, min.	8 mm
Dimension	08-12mm
For pipe diameter, max.	12 mm
For pipe diameter, min.	8 mm
for rail with slot width (with interval), max.	12 mm
for rail with slot width (with interval), min.	11 mm
Halogen-free	yes
Length of external dimensions	34 mm
Material	Aluminium
Material addition	Aluminium

Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	2 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	1,5 mm
Slot width	10 mm
Surface addition	Untreated
Thread	M6
With counter-trough	no
With plastic trough	yes

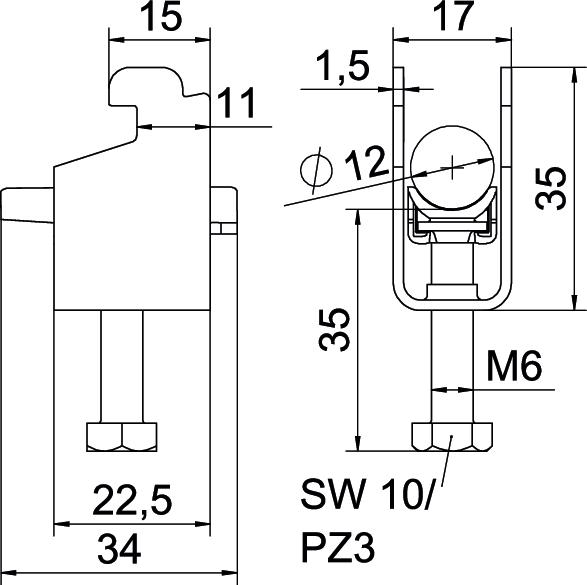

Dimensions

Dimension A	22,5 mm
Dimension B	17 mm
Dimension C	34 mm
Dimension G (mm)	M6
Dimension H	35 mm

Dimension L	35 mm
Dimension t	1,5 mm
Height	35 mm
Length	22,5 mm
Width	17 mm

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-N1-K-12 ALU	8 mm	12 mm	2 Nm	1187302	piece	50 piece
BS-N1-K-16 ALU	12 mm	16 mm	2 Nm	1187308	piece	50 piece
BS-N1-K-22 ALU	16 mm	22 mm	2 Nm	1187314	piece	50 piece
BS-N1-K-28 ALU	22 mm	28 mm	2 Nm	1187320	piece	50 piece
BS-N1-K-34 ALU	28 mm	34 mm	2 Nm	1187326	piece	50 piece
BS-N1-K-40 ALU	34 mm	40 mm	2 Nm	1187332	piece	50 piece
BS-N1-K-46 ALU	40 mm	46 mm	2 Nm	1187338	piece	50 piece
BS-N1-K-52 ALU	46 mm	52 mm	2 Nm	1187344	piece	50 piece
BS-N1-K-58 ALU	52 mm	58 mm	2 Nm	1187350	piece	50 piece
