Clamp clip, 2056 RS foot, single, metal pressure sleeve, FT 16 | 22 | 3

Clamp clip, 2056 RS foot, single, metal pressure sleeve, FT

Item no. 1158349 | EAN 4012197366063

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

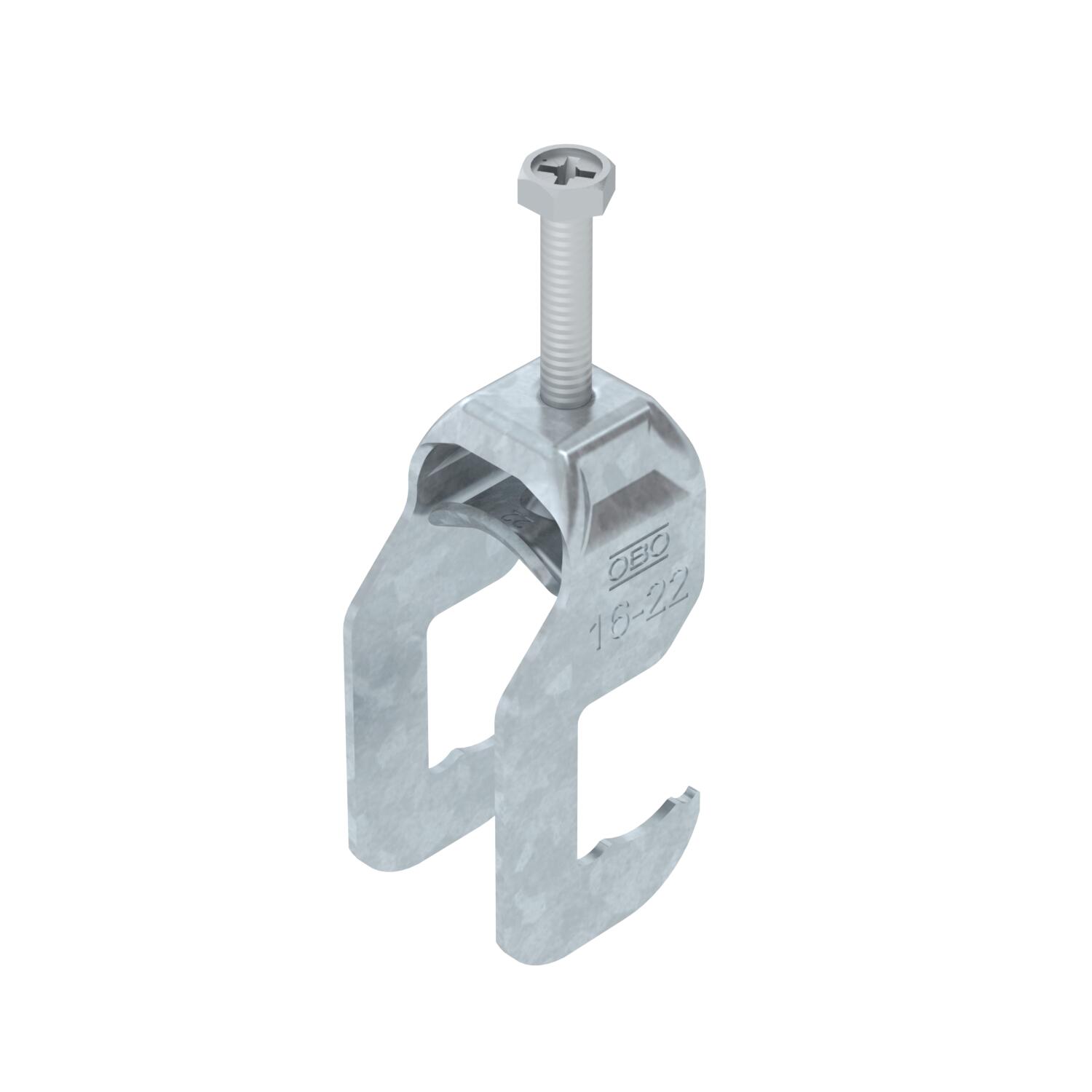

Clamp clip with RS foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on round profiles or pipes. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for all round profile irons or pipes with diameters up to 22 mm. Suitable for mounting indoors and outdoors. We recommend the use of a counter-trough.

Technical data

Technical data

Clamping range D, max.	22 mm
Clamping range D, min.	16 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,2059 kg CO2e / 1 Piece
Dimension	16-22

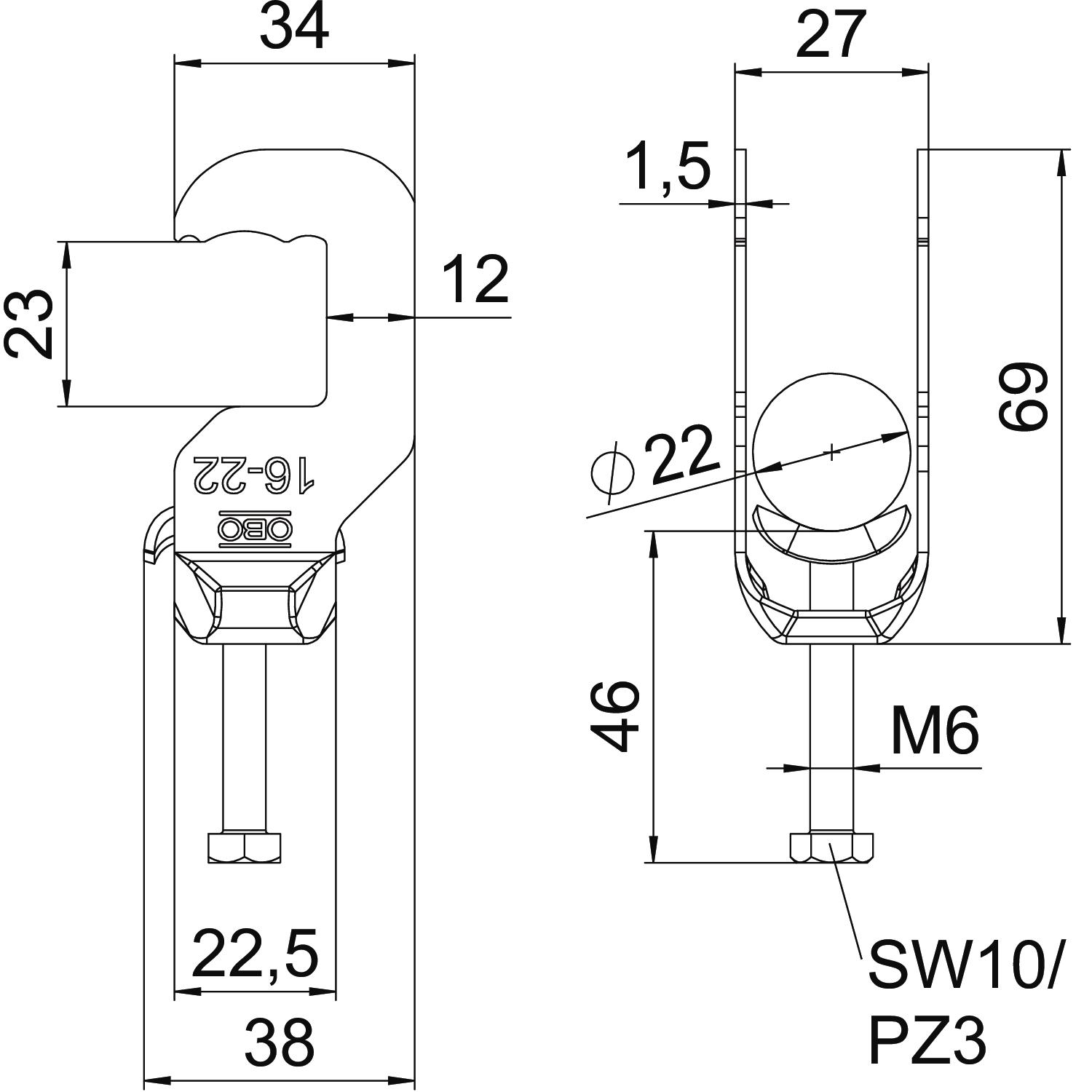

Dimension A	34 mm
Dimension B	27 mm
Dimension C	38 mm
Dimension E	12 mm
Dimension G (mm)	M6
Dimension H	69 mm
Dimension L	46 mm
Dimension t	1,5 mm
For pipe diameter, max.	22 mm
For pipe diameter, min.	16 mm
Halogen-free	yes
Height	69 mm

Length	33,5 mm
Length of external dimensions	38 mm
Material	Steel
Material addition	Steel
Material of trough	Steel
Max. Tightening torque	3 Nm
Mounting type	Round profile
Number of cables/pipes	1
Plate thickness	1,5 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M6
Width	27 mm
With counter-trough	no
With metal trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-RS1-M-12 FT	8 mm	12 mm	3 Nm	1158343	piece	100 piece
BS-RS1-M-16 FT	12 mm	16 mm	3 Nm	1158345	piece	100 piece
BS-RS1-M-22 FT	16 mm	22 mm	3 Nm	1158349	piece	100 piece
BS-RS1-M-28 FT	22 mm	28 mm	3 Nm	1158353	piece	100 piece
BS-RS1-M-34 FT	28 mm	34 mm	3 Nm	1158357	piece	100 piece
BS-RS1-M-40 FT	34 mm	40 mm	3 Nm	1158361	piece	100 piece
BS-RS1-M-46 FT	40 mm	46 mm	5 Nm	1158365	piece	100 piece
BS-RS1-M-52 FT	46 mm	52 mm	5 Nm	1158369	piece	100 piece
BS-RS1-M-58 FT	52 mm	58 mm	5 Nm	1158373	piece	100 piece
BS-RS1-M-64 FT	58 mm	64 mm	5 Nm	1158377	piece	100 piece
