Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, A4 8 | 12 | 3

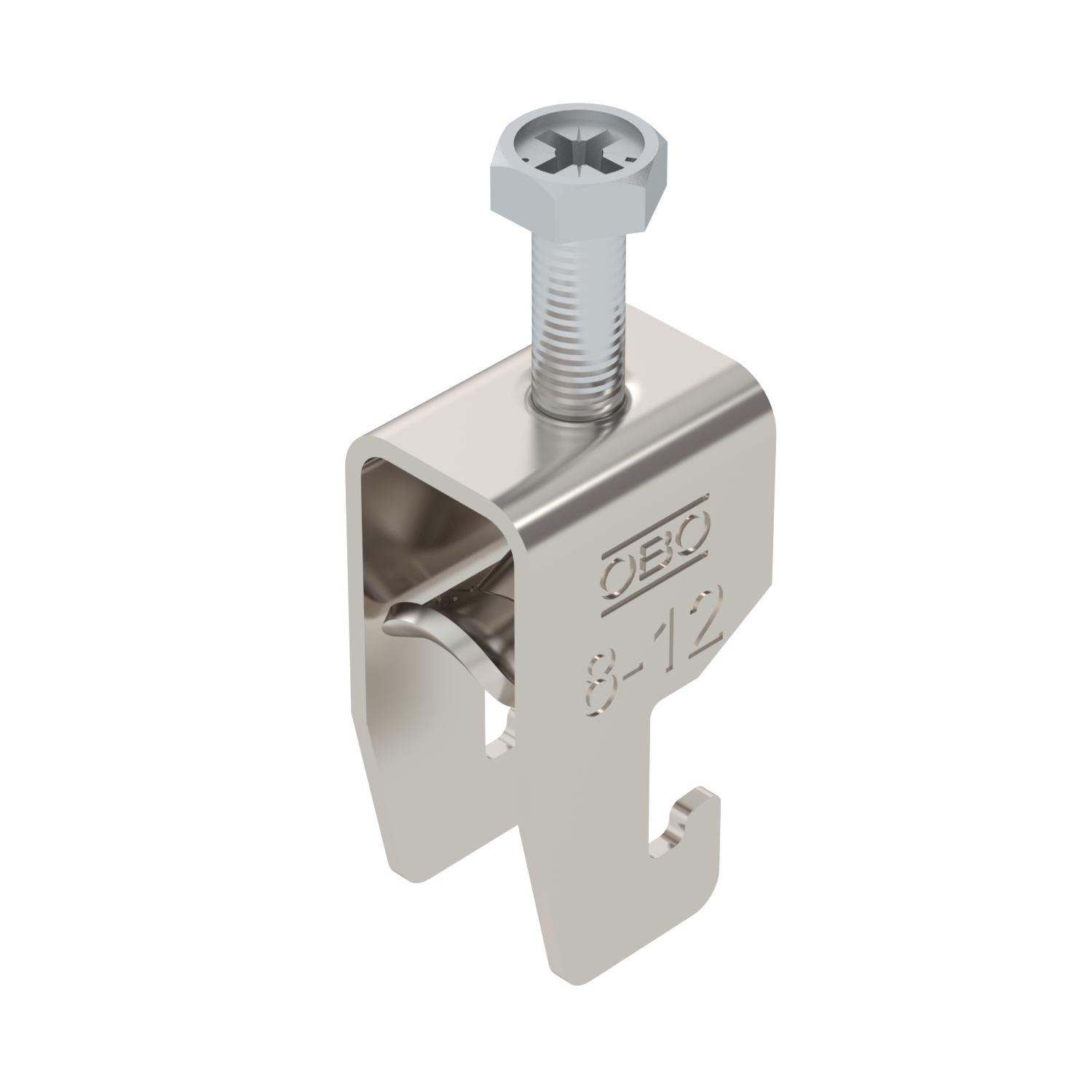

Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, A4

Item no. 1186602 | EAN 4012196850259

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Clamp clip with U-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	12 mm
Clamping range D, min.	8 mm
Dimension	08-12mm
For pipe diameter, max.	12 mm
For pipe diameter, min.	8 mm
for rail with slot width (with interval), max.	22 mm
for rail with slot width (with interval), min.	18 mm
Halogen-free	yes
Length of external dimensions	28 mm
Material	Stainless steel
Material addition	Rustproof steel

Material of trough	Rustproof steel
Max. Tightening torque	3 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	1,5 mm
Slot width	10 mm
Surface	Bright, treated
Surface addition	Untreated
Thread	M6
With counter-trough	no
With metal trough	yes

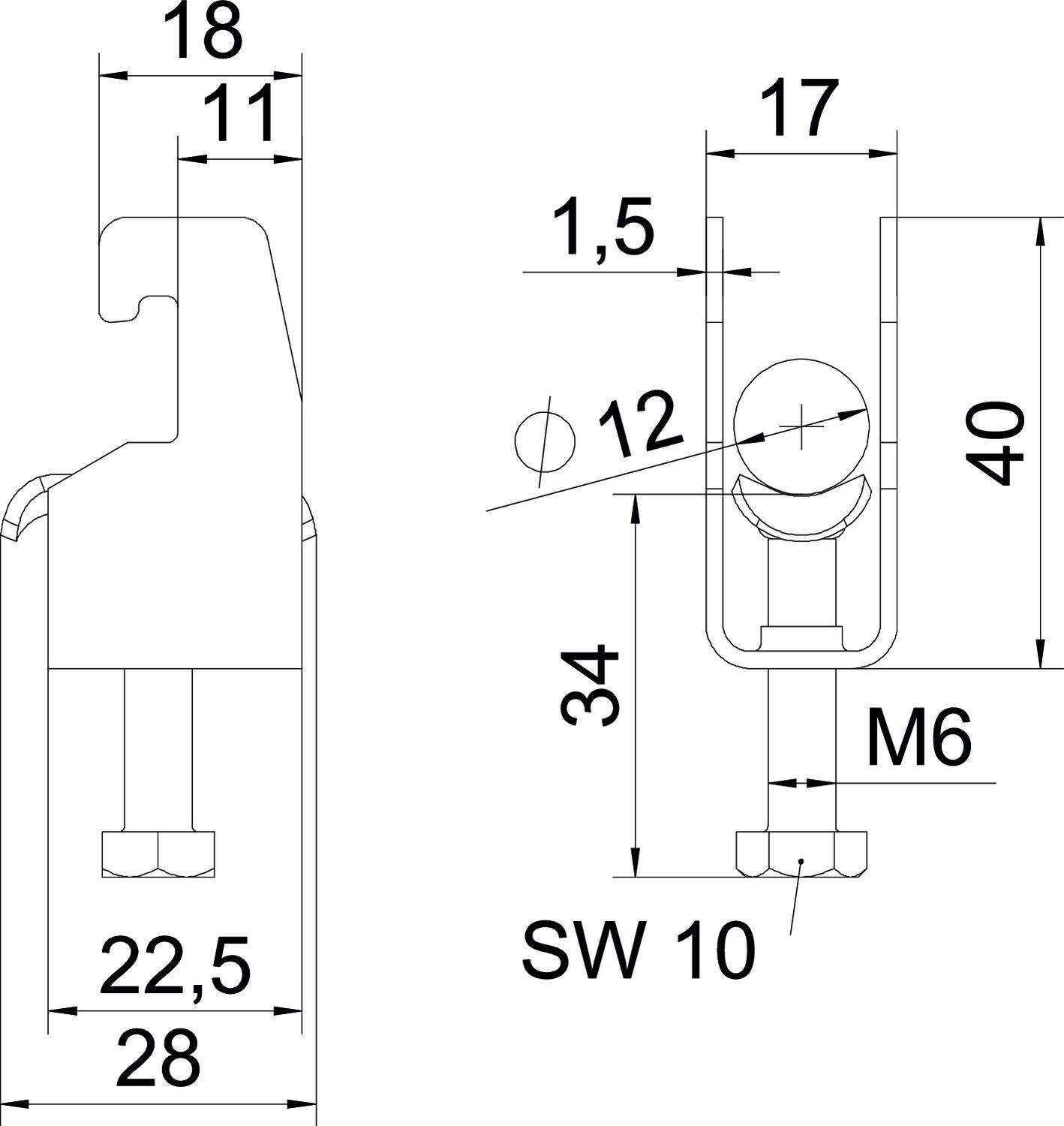

Dimensions

Dimension A	22,5 mm
Dimension B	17 mm
Dimension C	28 mm
Dimension G (mm)	M6
Dimension H	40 mm

Dimension L	34 mm
Dimension t	1,5 mm
Height	40 mm
Length	22,5 mm
Width	17 mm

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-U1-M-12 A4	8 mm	12 mm	3 Nm	1186602	piece	100 piece
BS-U1-M-16 A4	12 mm	16 mm	3 Nm	1186609	piece	100 piece
BS-U1-M-22 A4	16 mm	22 mm	3 Nm	1186616	piece	100 piece
BS-U1-M-28 A4	22 mm	28 mm	3 Nm	1186622	piece	100 piece
BS-U1-M-34 A4	28 mm	34 mm	3 Nm	1186629	piece	100 piece
BS-U1-M-40 A4	34 mm	40 mm	3 Nm	1186636	piece	100 piece
BS-U1-M-46 A4	40 mm	46 mm	5 Nm	1186642	piece	100 piece
BS-U1-M-52 A4	46 mm	52 mm	5 Nm	1186649	piece	100 piece
BS-U1-M-58 A4	52 mm	58 mm	5 Nm	1186656	piece	100 piece
BS-U1-M-64 A4	58 mm	64 mm	5 Nm	1186662	piece	100 piece
BS-U1-M-70 A4	64 mm	70 mm	5 Nm	1186669	piece	50 piece
BS-U1-M-76 A4	70 mm	76 mm	5 Nm	1186676	piece	25 piece
