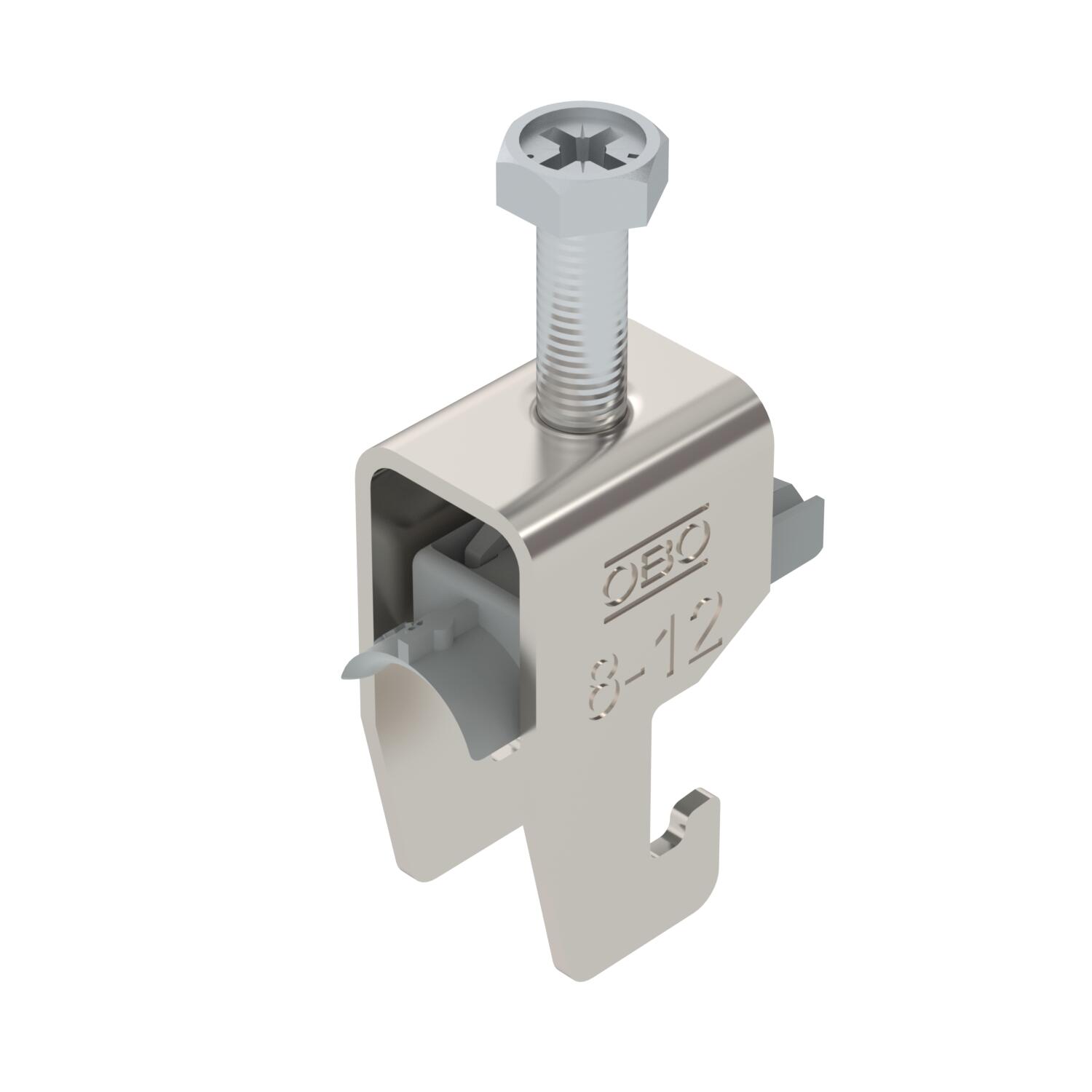

Clamp clip 2056 U-foot, 1-fold, plastic pressure sleeve, A2

Item no. 1186802 | EAN 4012196851270

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Clamp clip with U-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	12 mm
Clamping range D, min.	8 mm
Dimension	08-12mm
For pipe diameter, max.	12 mm
For pipe diameter, min.	8 mm
for rail with slot width (with interval), max.	22 mm
for rail with slot width (with interval), min.	18 mm
Halogen-free	yes
Length of external dimensions	34 mm
Material	Stainless steel
Material addition	Rustproof steel
Material of trough	Plastic

Material quality of trough	Polypropylene
Max. Tightening torque	3 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	1,5 mm
Slot width	10 mm
Surface	Bright, treated
Surface addition	Untreated
Thread	M6
With counter-trough	no
With metal trough	no
With plastic trough	yes

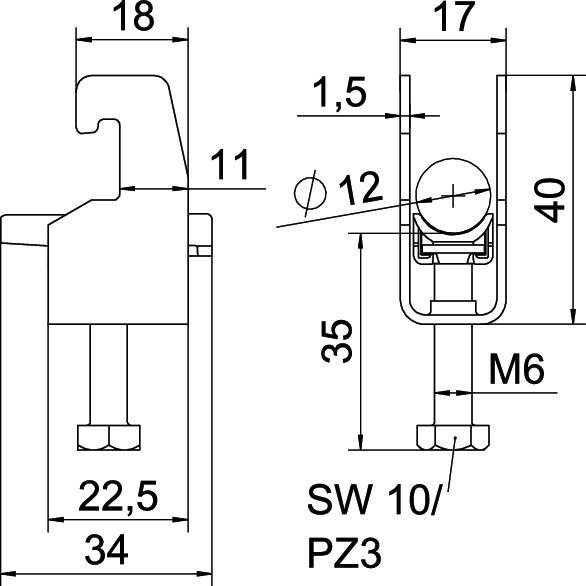

Dimensions

Dimension A	22,5 mm
Dimension B	17 mm
Dimension C	34 mm
Dimension G (mm)	M6
Dimension H	40 mm

Dimension L	35 mm
Dimension t	1,5 mm
Height	40 mm
Length	22,5 mm
Width	17 mm

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-U1-K-12 A2	8 mm	12 mm	3 Nm	1186802	piece	50 piece
BS-U1-K-16 A2	12 mm	16 mm	3 Nm	1186809	piece	50 piece
BS-U1-K-22 A2	16 mm	22 mm	3 Nm	1186816	piece	50 piece
BS-U1-K-28 A2	22 mm	28 mm	3 Nm	1186822	piece	50 piece
BS-U1-K-34 A2	28 mm	34 mm	3 Nm	1186829	piece	50 piece
BS-U1-K-40 A2	34 mm	40 mm	3 Nm	1186836	piece	25 piece
BS-U1-K-46 A2	40 mm	46 mm	5 Nm	1186842	piece	25 piece
BS-U1-K-52 A2	46 mm	52 mm	5 Nm	1186849	piece	25 piece
BS-U1-K-58 A2	52 mm	58 mm	5 Nm	1186856	piece	25 piece
BS-U1-K-64 A2	58 mm	64 mm	5 Nm	1186862	piece	15 piece
BS-U1-K-70 A2	64 mm	70 mm	5 Nm	1186869	piece	15 piece
BS-U1-K-76 A2	70 mm	76 mm	5 Nm	1186876	piece	10 piece
