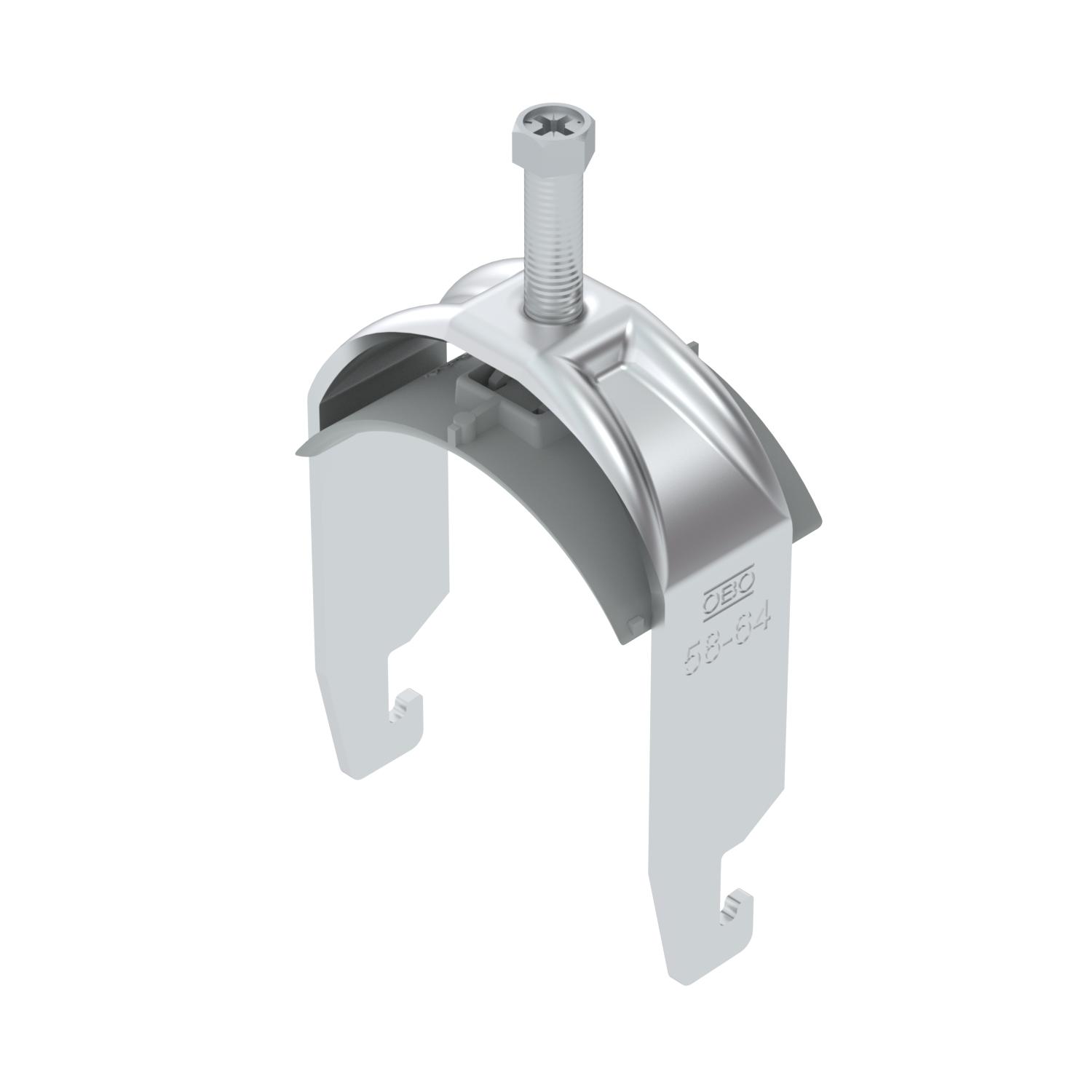

Clamp clip 2056 U-foot, 1-fold, plastic pressure sleeve, AI

Item no. 1186962 | EAN 4012196852123

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque	2 Nm

Product description

Product description

Clamp clip with U-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	64 mm
Clamping range D, min.	58 mm
Dimension	58-64mm
For pipe diameter, max.	64 mm
For pipe diameter, min.	58 mm
for rail with slot width (with interval), max.	22 mm
for rail with slot width (with interval), min.	18 mm
Halogen-free	yes
Length of external dimensions	40 mm
Material	Aluminium
Material addition	Aluminium

Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	2 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	2,5 mm
Slot width	10 mm
Surface addition	Untreated
Thread	M8
With counter-trough	no
With plastic trough	yes

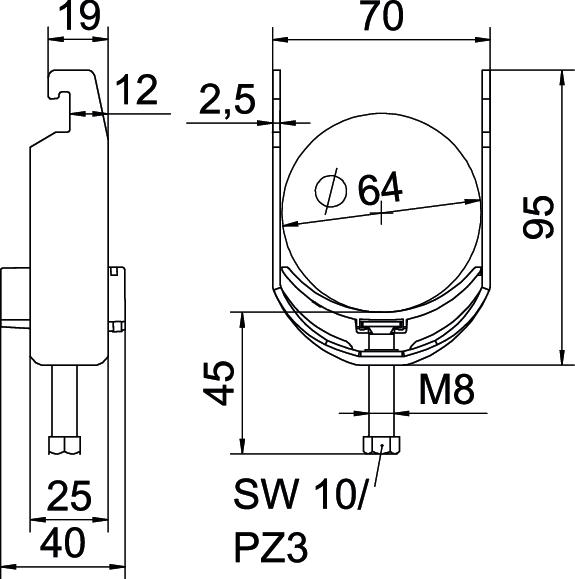

Dimensions

Dimension A	25 mm
Dimension B	70 mm
Dimension C	40 mm
Dimension G (mm)	M8
Dimension H	95 mm

Dimension L	45 mm
Dimension t	2,5 mm
Height	95 mm
Length	25 mm
Width	70 mm

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-U1-K-12 ALU	8 mm	12 mm	2 Nm	1186902	piece	50 piece
BS-U1-K-16 ALU	12 mm	16 mm	2 Nm	1186909	piece	50 piece
BS-U1-K-22 ALU	16 mm	22 mm	2 Nm	1186916	piece	50 piece
BS-U1-K-28 ALU	22 mm	28 mm	2 Nm	1186922	piece	50 piece
BS-U1-K-34 ALU	28 mm	34 mm	2 Nm	1186929	piece	50 piece
BS-U1-K-40 ALU	34 mm	40 mm	2 Nm	1186936	piece	50 piece
BS-U1-K-46 ALU	40 mm	46 mm	2 Nm	1186942	piece	50 piece
BS-U1-K-52 ALU	46 mm	52 mm	2 Nm	1186949	piece	50 piece
BS-U1-K-58 ALU	52 mm	58 mm	2 Nm	1186956	piece	50 piece
BS-U1-K-64 ALU	58 mm	64 mm	2 Nm	1186962	piece	50 piece
BS-U1-K-70 ALU	64 mm	70 mm	2 Nm	1186969	piece	50 piece
BS-U1-K-76 ALU	70 mm	76 mm	2 Nm	1186976	piece	50 piece
