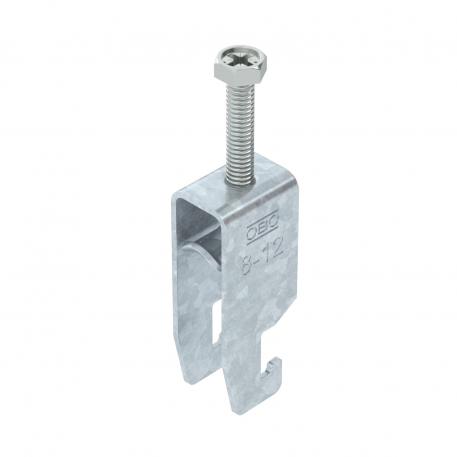

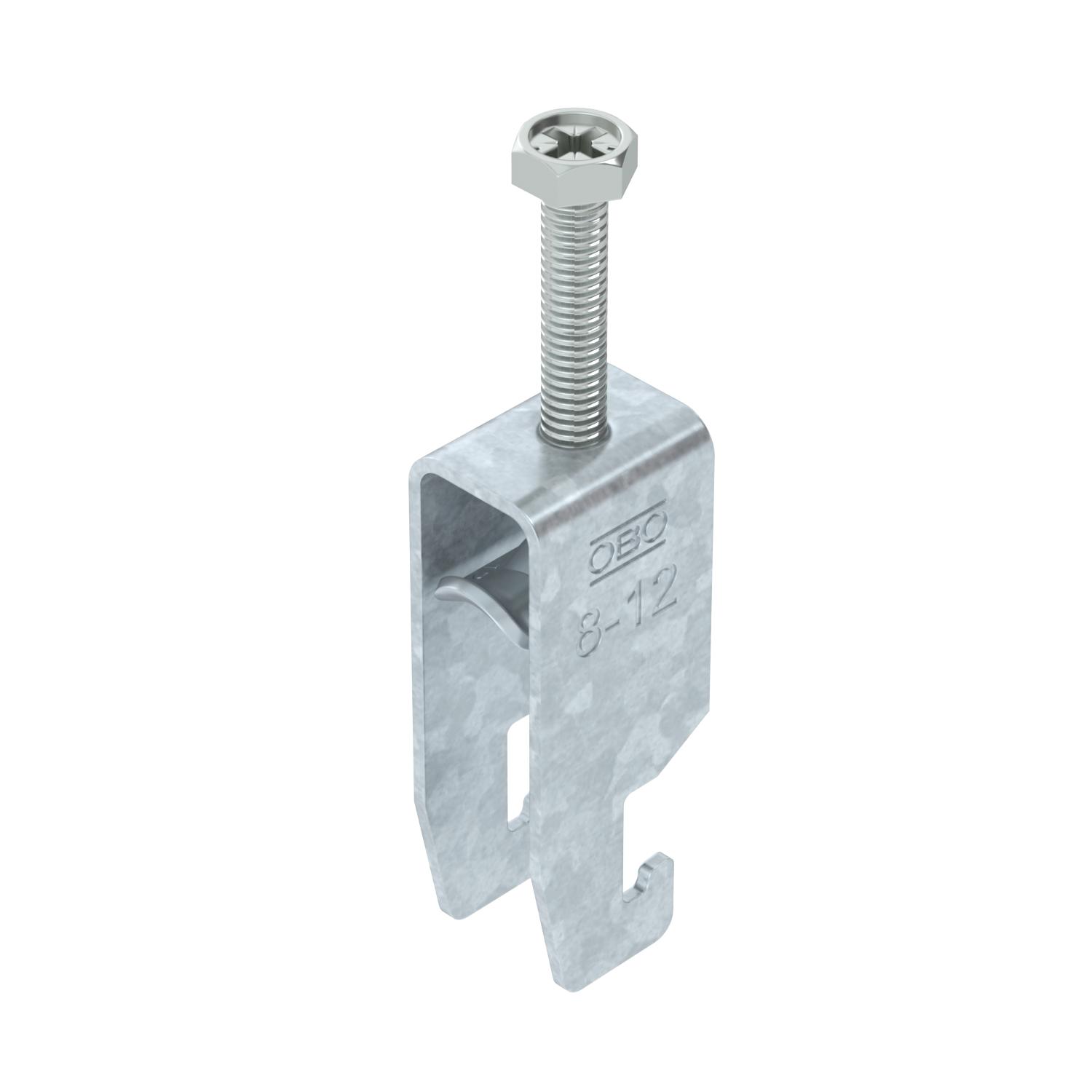

Clamp clip 2056 U-foot, 2-fold, metal pressure sleeve, FT

Item no. 1186503 | EAN 4012196849789

Product description

Product description

Clamp clip with U-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 2 single cables on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 18 mm
  • Slot width 22 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
Technical data

Technical data

Clamping range D, max. 12 mm
Clamping range D, min. 8 mm
Dimension 08-12mm
For pipe diameter, max. 12 mm
For pipe diameter, min. 8 mm
for rail with slot width (with interval), max. 22 mm
for rail with slot width (with interval), min. 18 mm
Halogen-free yes
Length of external dimensions 28 mm
Maintain electrical functions yes
Material Steel
Material addition Steel
Material of trough Steel
Max. Tightening torque 3 Nm
Mounting type Profile rail
Number of cables/pipes 2
Plate thickness 1,5 mm
Slot width 10 mm
Surface Hot-dip galvanised
Surface addition hot galvanised
Thread M6
With counter-trough no
With metal trough yes
With plastic trough no

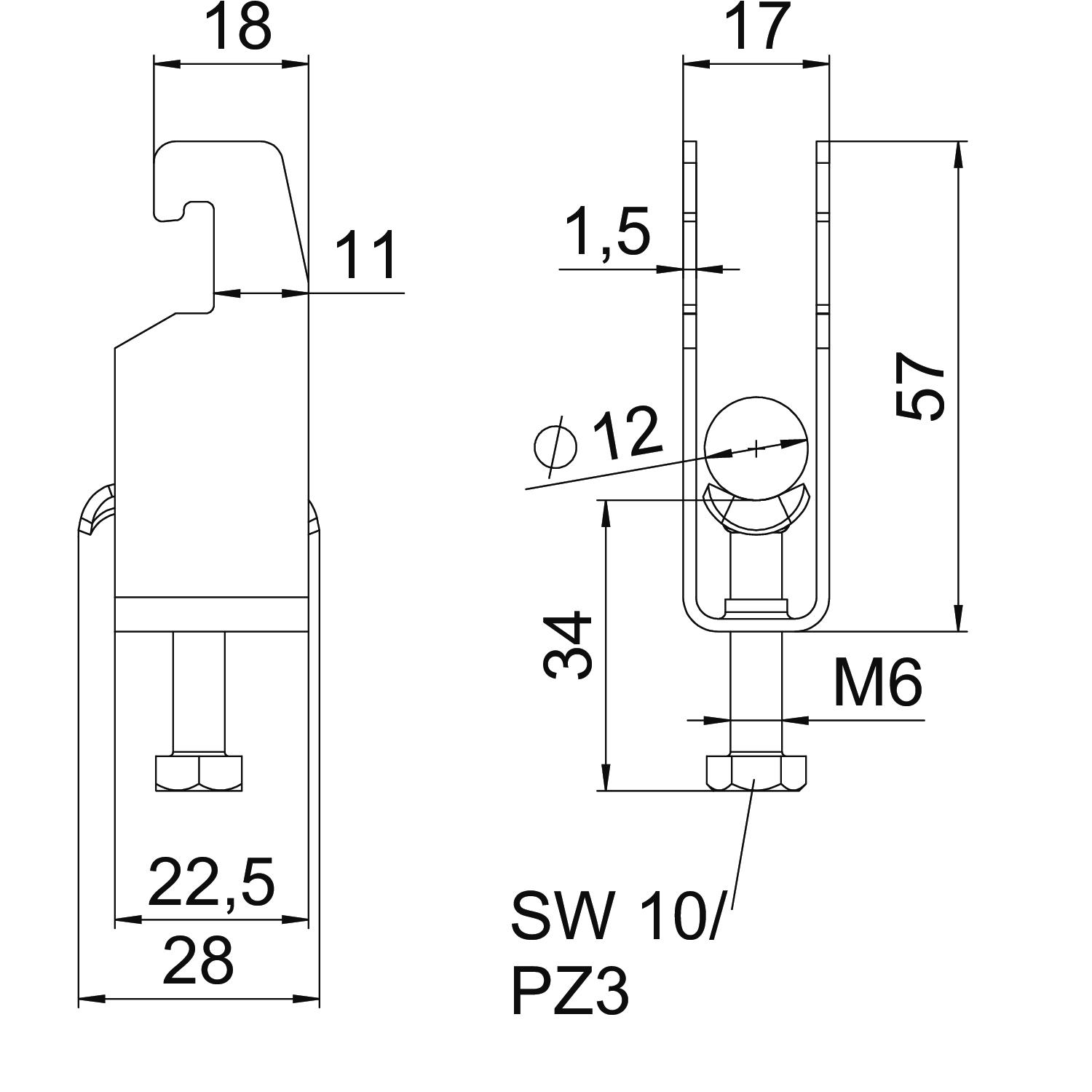

Dimensions

Dimension A 22,5 mm
Dimension B 17 mm
Dimension C 28 mm
Dimension G (mm) M6
Dimension H 57 mm
Dimension L 46 mm
Dimension t 1,5 mm
Height 57 mm
Length 22,5 mm
Width 17 mm
All types

All types

Types Clamping range D, min. Clamping range D, max. Max. Tightening torque Item no. Quantity SSU
BS-U2-M-12 FT 8 mm 12 mm 3 Nm 1186503
50 piece
BS-U2-M-16 FT 12 mm 16 mm 3 Nm 1186510
50 piece
BS-U2-M-22 FT 16 mm 22 mm 3 Nm 1186517
50 piece
BS-U2-M-28 FT 22 mm 28 mm 3 Nm 1186523
50 piece
BS-U2-M-34 FT 28 mm 34 mm 3 Nm 1186530
50 piece
BS-U2-M-40 FT 34 mm 40 mm 3 Nm 1186537
50 piece
BS-U2-M-46 FT 40 mm 46 mm 5 Nm 1186543
50 piece
BS-U2-M-52 FT 46 mm 52 mm 5 Nm 1186550
50 piece
BS-U2-M-58 FT 52 mm 58 mm 5 Nm 1186557
50 piece
BS-U2-M-64 FT 58 mm 64 mm 5 Nm 1186563
50 piece
