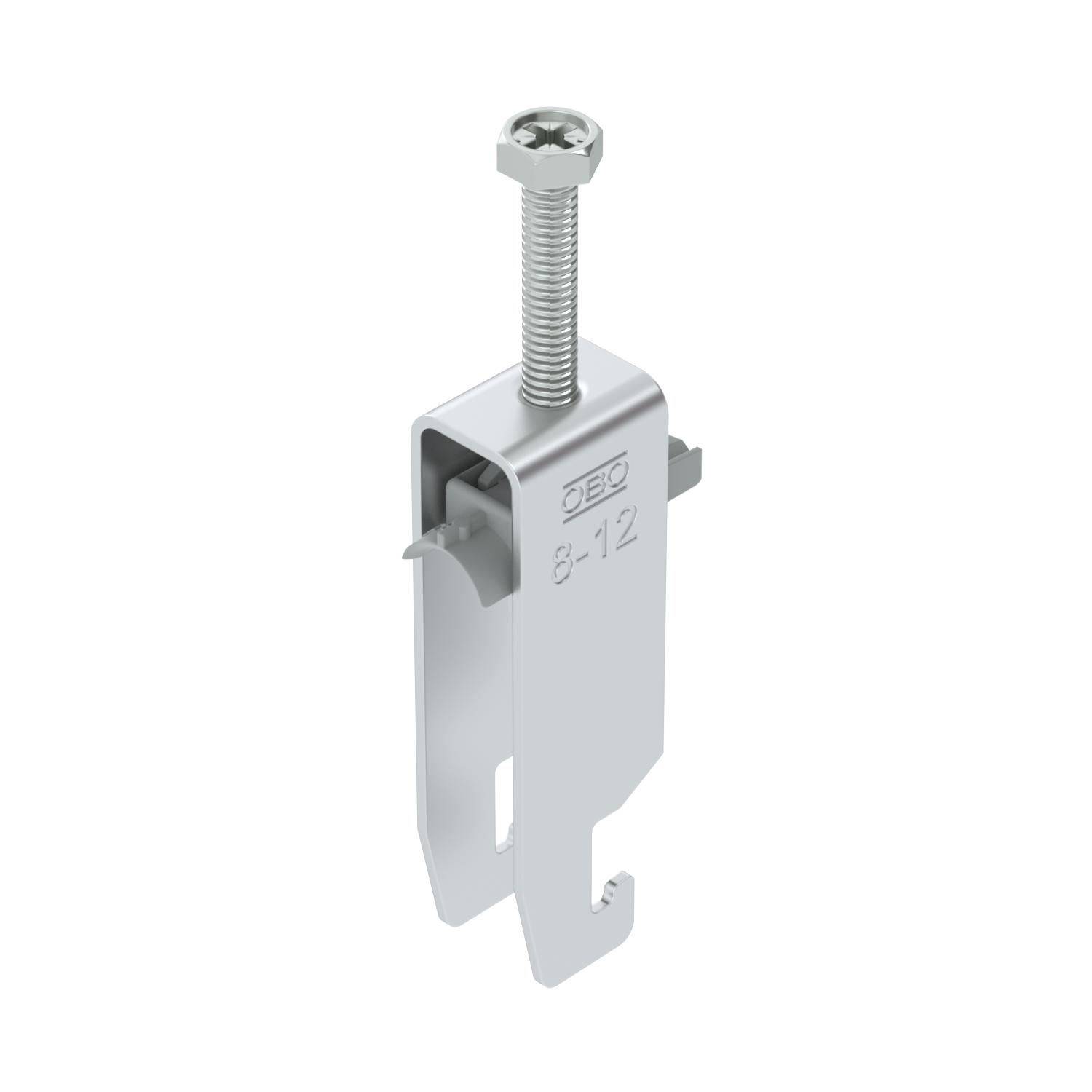

Clamp clip 2056 U-foot, 3-fold, plastic pressure sleeve, AI

Item no. 1186904 | EAN 4012196851799

3 Nm
Product description

Product description

Clamp clip with U-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 3 single cables on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 18 mm
  • Slot width 22 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
Technical data

Technical data

Clamping range D, max. 12 mm
Clamping range D, min. 8 mm
Dimension 08-12mm
For pipe diameter, max. 12 mm
For pipe diameter, min. 8 mm
for rail with slot width (with interval), max. 22 mm
for rail with slot width (with interval), min. 18 mm
Halogen-free yes
Length of external dimensions 34 mm
Material Aluminium
Material addition Aluminium
Material of trough Plastic
Material quality of trough Polypropylene
Max. Tightening torque 3 Nm
Mounting type Profile rail
Number of cables/pipes 3
Plate thickness 1,5 mm
Slot width 10 mm
Surface addition Untreated
Thread M6
With counter-trough no
With metal trough no
With plastic trough yes

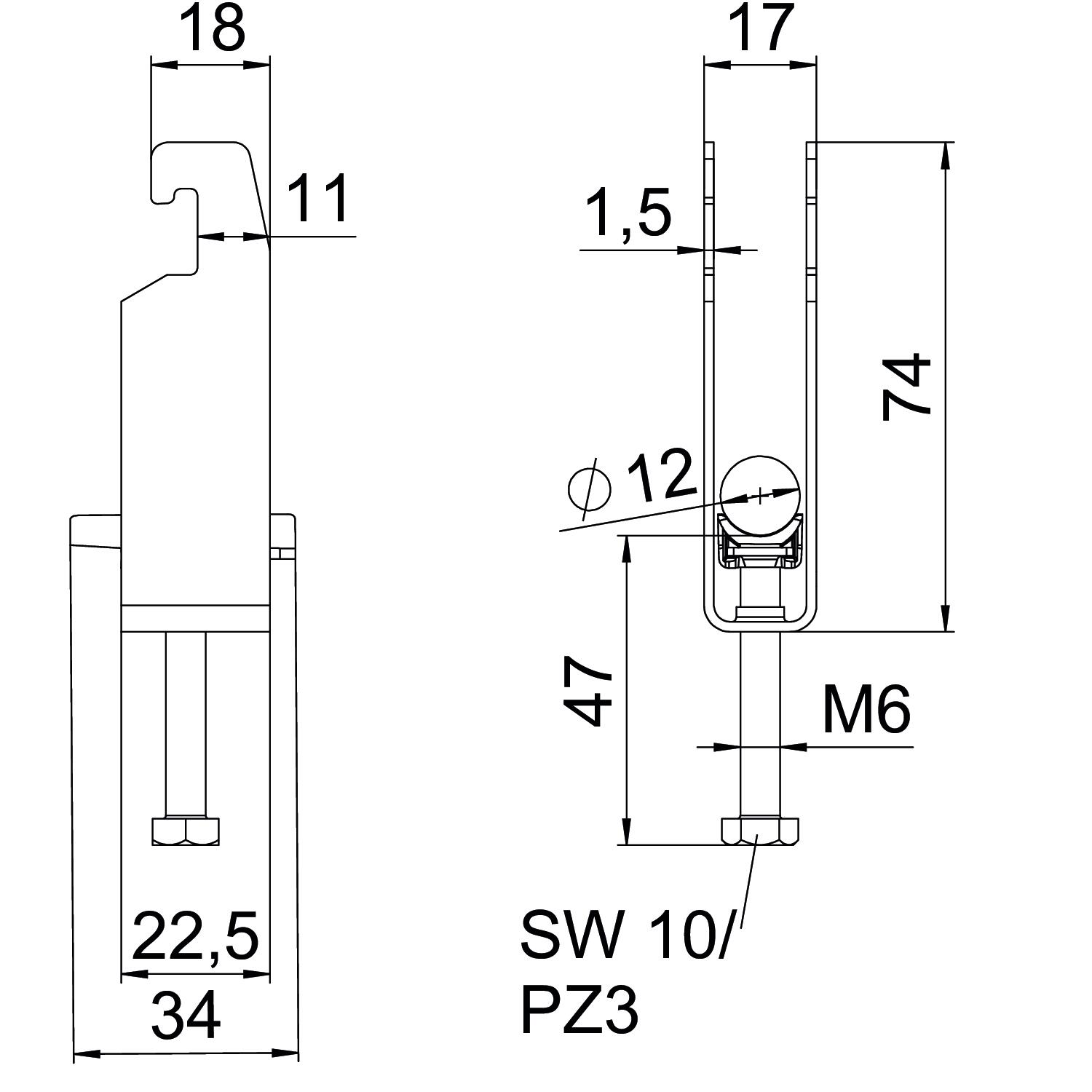

Dimensions

Dimension A 22,5 mm
Dimension B 17 mm
Dimension C 34 mm
Dimension G (mm) M6
Dimension H 74 mm
Dimension L 47 mm
Dimension t 1,5 mm
Height 74 mm
Length 22,5 mm
Width 17 mm
All types

All types

Types Clamping range D, min. Clamping range D, max. Max. Tightening torque Item no. Quantity SSU
BS-U3-K-12 ALU 8 mm 12 mm 3 Nm 1186904
50 piece
BS-U3-K-16 ALU 12 mm 16 mm 3 Nm 1186911
50 piece
BS-U3-K-22 ALU 16 mm 22 mm 3 Nm 1186918
50 piece
BS-U3-K-28 ALU 22 mm 28 mm 3 Nm 1186924
50 piece
BS-U3-K-34 ALU 28 mm 34 mm 3 Nm 1186931
50 piece
