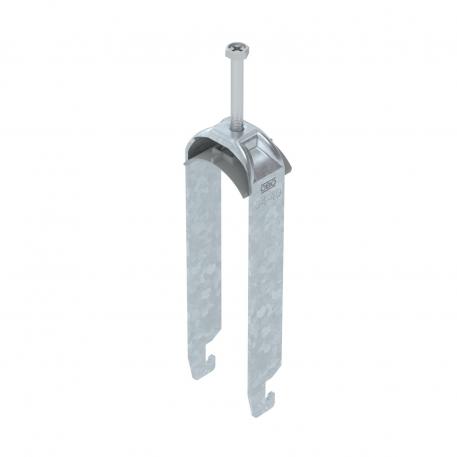

Clamp clip 2056 U-foot, 3-fold, plastic pressure sleeve, FT

Item no. 1186738 | EAN 4012196850983

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Clamp clip with U-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 3 single cables on a C-profile rail. For slot width 18 mm or 22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	40 mm
Clamping range D, min.	34 mm
Dimension	34-40mm
For pipe diameter, max.	40 mm
For pipe diameter, min.	34 mm
for rail with slot width (with interval), max.	22 mm
for rail with slot width (with interval), min.	18 mm
Halogen-free	yes
Length of external dimensions	34 mm
Material	Steel
Material addition	Steel
Material of trough	Plastic

Material quality of trough	Polypropylene
Max. Tightening torque	3 Nm
Mounting type	Profile rail
Number of cables/pipes	3
Plate thickness	2 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M6
With counter-trough	no
With plastic trough	yes

Dimensions

Dimension A	22,5 mm
Dimension B	45 mm
Dimension C	34 mm
Dimension G (mm)	M6
Dimension H	161 mm

Dimension L	59 mm
Dimension t	2 mm
Height	161 mm
Length	22,5 mm
Width	45 mm

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-U3-K-12 FT	8 mm	12 mm	3 Nm	1186704	piece	50 piece
BS-U3-K-16 FT	12 mm	16 mm	3 Nm	1186711	piece	50 piece
BS-U3-K-22 FT	16 mm	22 mm	3 Nm	1186718	piece	50 piece
BS-U3-K-28 FT	22 mm	28 mm	3 Nm	1186724	piece	50 piece
BS-U3-K-34 FT	28 mm	34 mm	3 Nm	1186731	piece	50 piece
BS-U3-K-40 FT	34 mm	40 mm	3 Nm	1186738	piece	50 piece
BS-U3-K-46 FT	40 mm	46 mm	5 Nm	1186744	piece	50 piece
