Clamp clip 2056 W-foot, 1-fold, plastic pressure sleeve, FT 46 | 52 | 5

Clamp clip 2056 W-foot, 1-fold, plastic pressure sleeve, FT

Item no. 1187744 | EAN 4012196854455

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

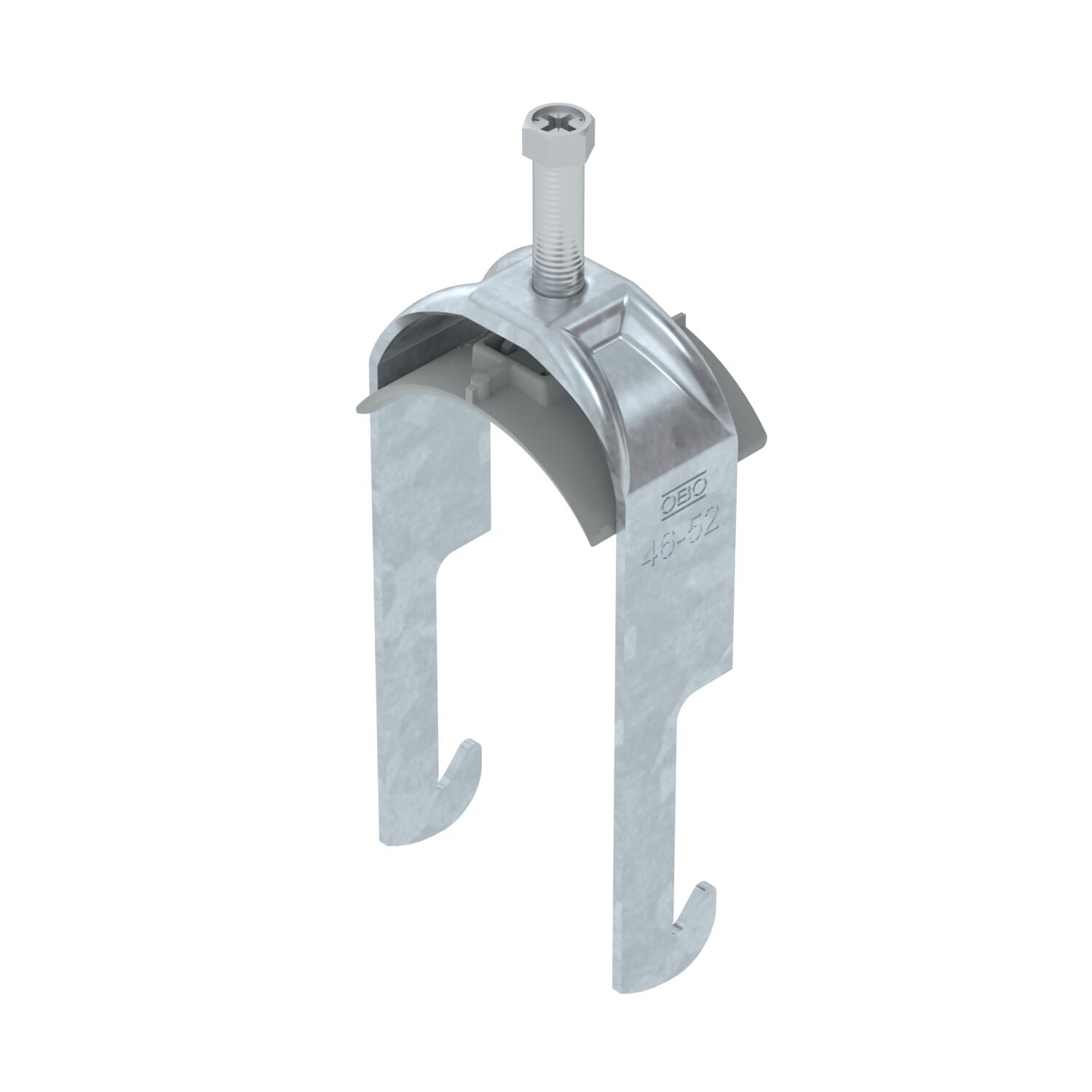

Clamp clip with W-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on angle irons with shaft length 40 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	52 mm
Clamping range D, min.	46 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,283 kg CO2e / 1 Piece

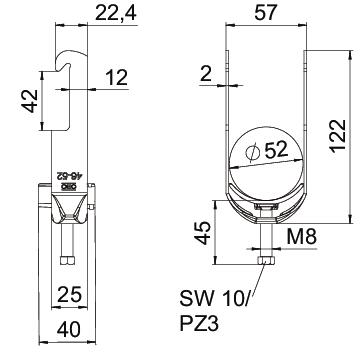

Dimension	46-52mm
Dimension A	25 mm
Dimension B	57 mm
Dimension C	40 mm
Dimension G (mm)	M8
Dimension H	122 mm
Dimension L	45 mm
Dimension t	2 mm
For pipe diameter, max.	52 mm
For pipe diameter, min.	46 mm
Halogen-free	yes
Height	122 mm
Length	25 mm

Length of external dimensions	40 mm
Material	Steel
Material addition	Steel
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	5 Nm
Mounting type	Angle profile
Number of cables/pipes	1
Plate thickness	2 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M8
Width	57 mm
With counter-trough	no
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-W1-K-12 FT	8 mm	12 mm	3 Nm	1187702	piece	100 piece
BS-W1-K-16 FT	12 mm	16 mm	3 Nm	1187708	piece	100 piece
BS-W1-K-22 FT	16 mm	22 mm	3 Nm	1187714	piece	100 piece
BS-W1-K-28 FT	22 mm	28 mm	3 Nm	1187720	piece	100 piece
BS-W1-K-34 FT	28 mm	34 mm	3 Nm	1187726	piece	100 piece
BS-W1-K-40 FT	34 mm	40 mm	3 Nm	1187732	piece	100 piece
BS-W1-K-46 FT	40 mm	46 mm	5 Nm	1187738	piece	100 piece
BS-W1-K-52 FT	46 mm	52 mm	5 Nm	1187744	piece	100 piece
BS-W1-K-58 FT	52 mm	58 mm	5 Nm	1187750	piece	50 piece
BS-W1-K-64 FT	58 mm	64 mm	5 Nm	1187756	piece	50 piece
BS-W1-K-70 FT	64 mm	70 mm	5 Nm	1187762	piece	50 piece
