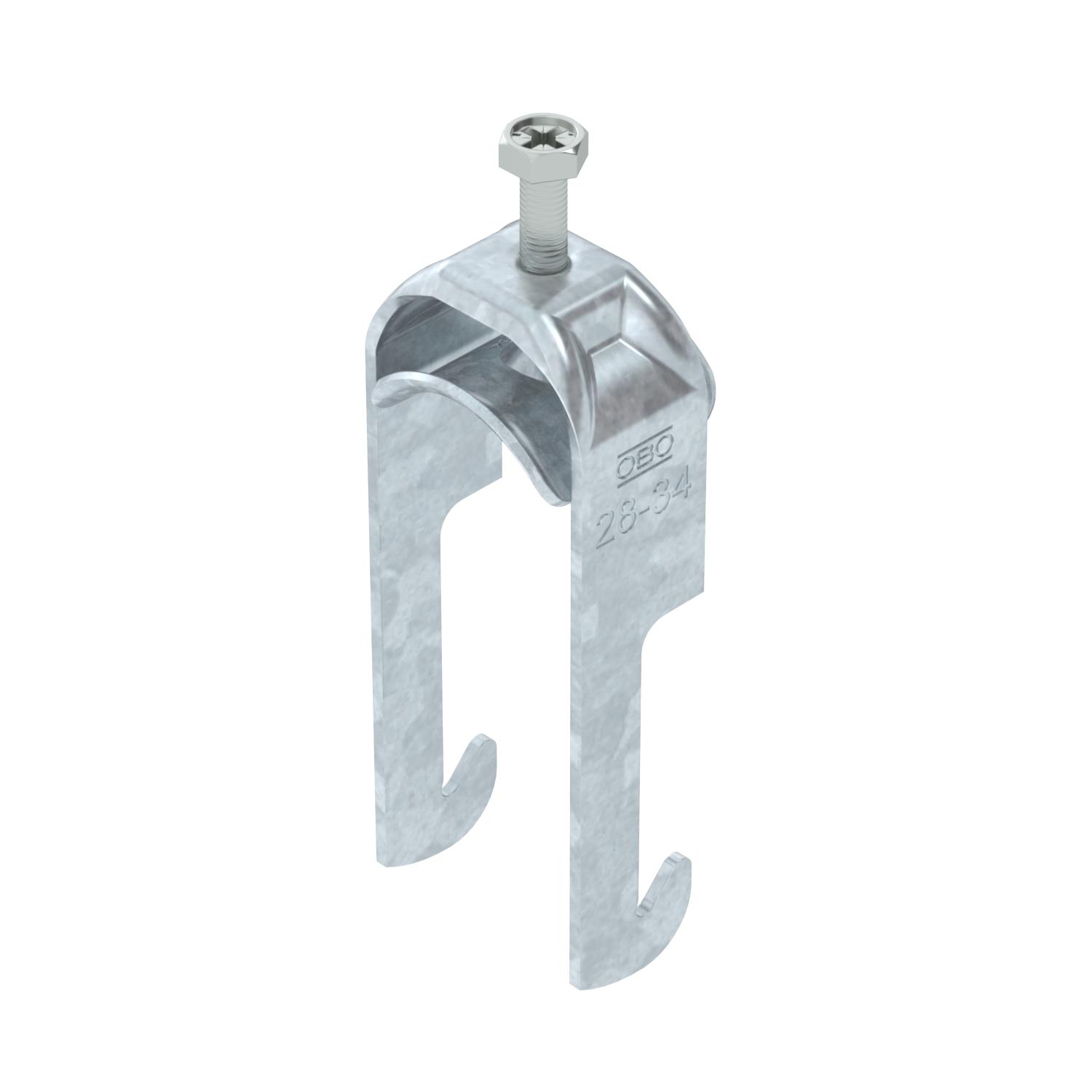

Clamp clip 2056, W-foot, single, metal pressure trough, FT 28 | 34 | 3

Clamp clip 2056, W-foot, single, metal pressure trough, FT

Item no. 1188313 | EAN 4012197416805

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Clamp clip with W-foot, metal pressure trough with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on angle irons with shaft length 40 mm. With 1-start screw thread on pressure trough, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for mounting indoors and outdoors. We recommend the use of a counter-trough.

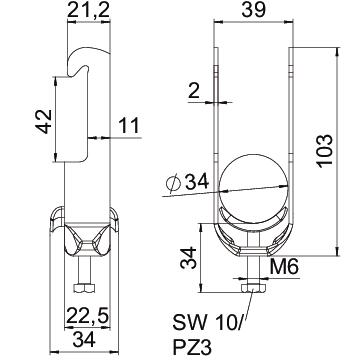

Technical data

Technical data

Clamping range D, max.	34 mm
Clamping range D, min.	28 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,2135 kg CO2e / 1 Piece
Dimension	28-34mm
Dimension A	22,5 mm
Dimension B	39 mm
Dimension C	33 mm
Dimension G (mm)	M6
Dimension H	103 mm
Dimension L	34 mm
Dimension t	2 mm
For pipe diameter, max.	34 mm
For pipe diameter, min.	28 mm
Halogen-free	yes
Height	103 mm

Length	22,5 mm
Length of external dimensions	33 mm
Material	Steel
Material addition	Steel
Max. Tightening torque	3 Nm
Mounting type	Angle profile
Number of cables/pipes	1
Plate thickness	2 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M6
Width	39 mm
With metal trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-W1-M-12 FT	8 mm	12 mm	3 Nm	1188301	piece	100 piece
BS-W1-M-16 FT	12 mm	16 mm	3 Nm	1188304	piece	100 piece
BS-W1-M-22 FT	16 mm	22 mm	3 Nm	1188307	piece	100 piece
BS-W1-M-28 FT	22 mm	28 mm	3 Nm	1188310	piece	100 piece
BS-W1-M-34 FT	28 mm	34 mm	3 Nm	1188313	piece	100 piece
BS-W1-M-40 FT	34 mm	40 mm	3 Nm	1188316	piece	100 piece
BS-W1-M-46 FT	40 mm	46 mm	5 Nm	1188319	piece	100 piece
BS-W1-M-52 FT	46 mm	52 mm	5 Nm	1188322	piece	100 piece
BS-W1-M-58 FT	52 mm	58 mm	5 Nm	1188325	piece	50 piece
BS-W1-M-64 FT	58 mm	64 mm	5 Nm	1188328	piece	50 piece
BS-W1-M-70 FT	64 mm	70 mm	5 Nm	1188331	piece	50 piece
