Clamp clip, hammer-head base, 3x single-wire connection
Item no. 1174614 | EAN 4012195500414
- Product description
-

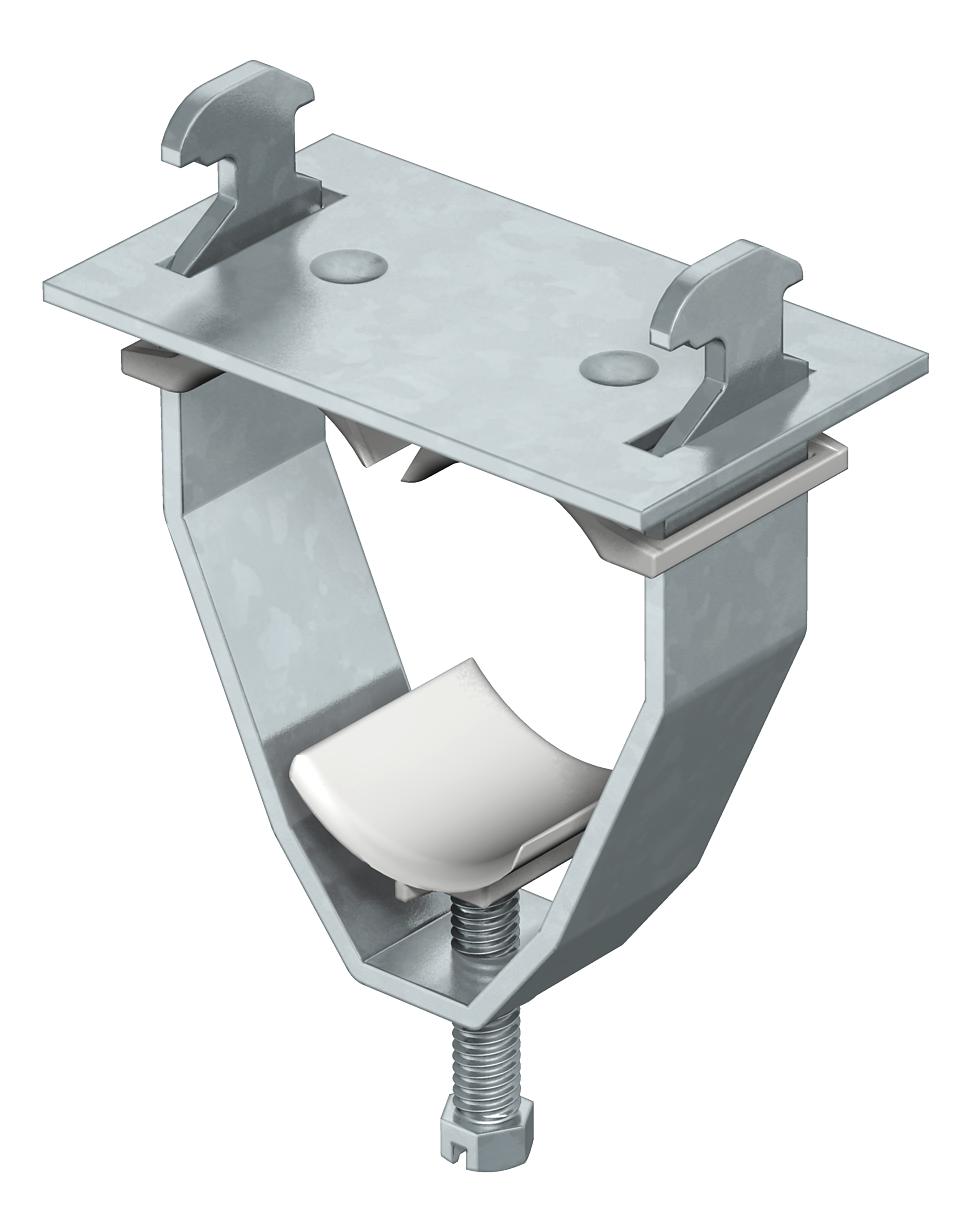

Product descriptionClip element, bolt and lock plate made of hot-dip galvanised steel, pressure and counter-trough made of polypropylene, halogen-free, light grey RAL 7035.
Delivered complete with lock plate and counter-troughs.
The clamp clips 2056/E are used for systematic routing of single-wire cables in rotary current networks. As, with this routing type, the magnetic fields counteract each other, no heating is to be feared and steel clips can be used.
2056/E is suitable for all profile rails of 16–17 mm slot width.
-
- Technical data
-
Technical data

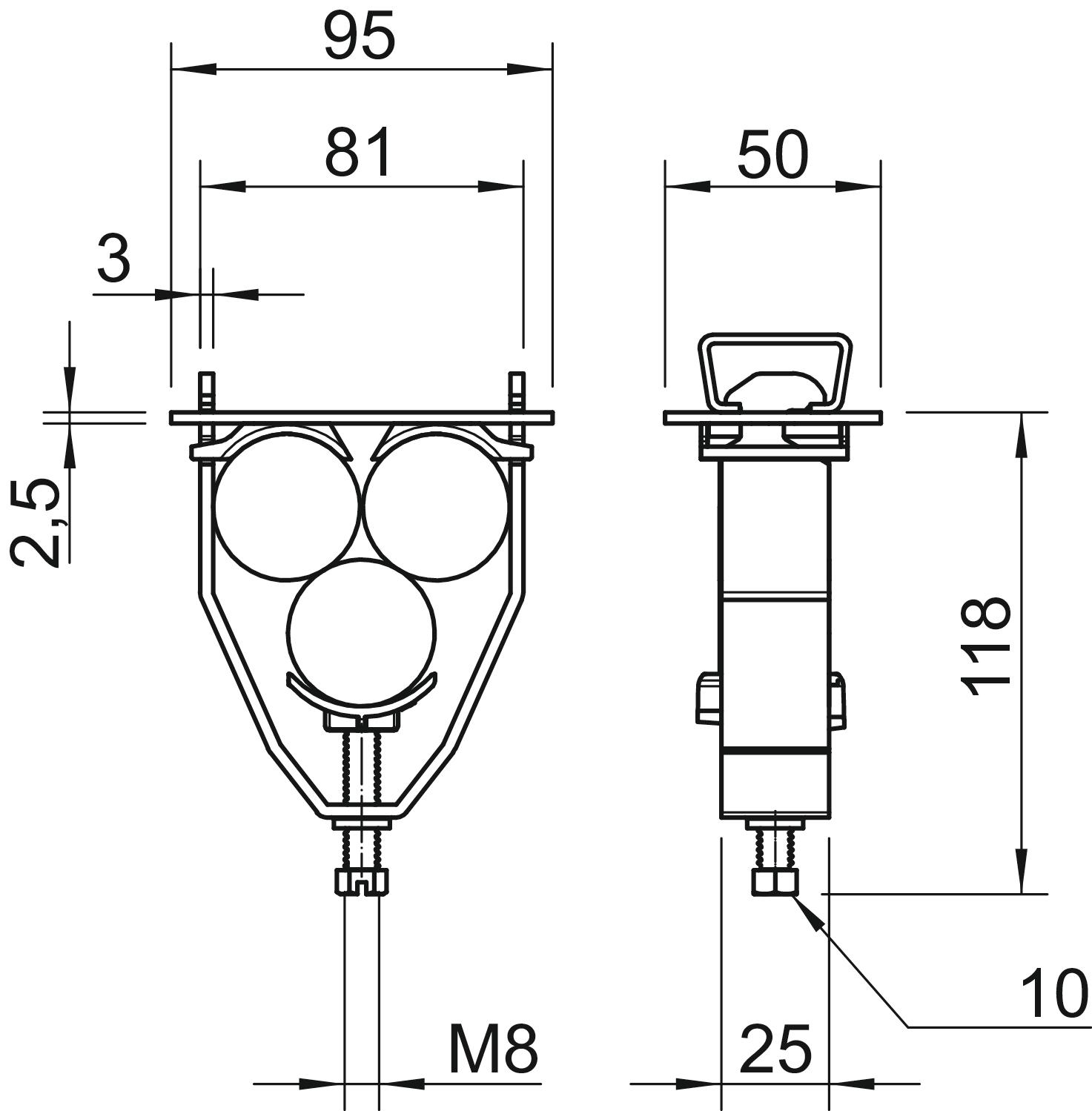

Cable diameter, max. 37 mm Cable diameter, min. 34 mm Clamping range D, max. 37 mm Clamping range D, min. 34 mm CO2 Footprint (GWP) Cradle-to-Gate 0,5952 kg CO2e / 1 Piece Dimension 34-37mm Dimension A 95 mm Dimension B 81 mm Dimension H 118 mm for rail with slot width (with interval), max. 17 mm for rail with slot width (with interval), min. 16 mm Halogen-free yes Impact-resistant no Material Steel Material addition Steel Material of counter-trough Plastic Material of trough Plastic Material quality of trough Polypropylene Max. Tightening torque 5 Nm Mounting type Profile rail Number of cables/pipes 3 Surface Hot-dip galvanised Surface addition hot galvanised With counter-trough yes With metal trough no With plastic trough yes - All types
