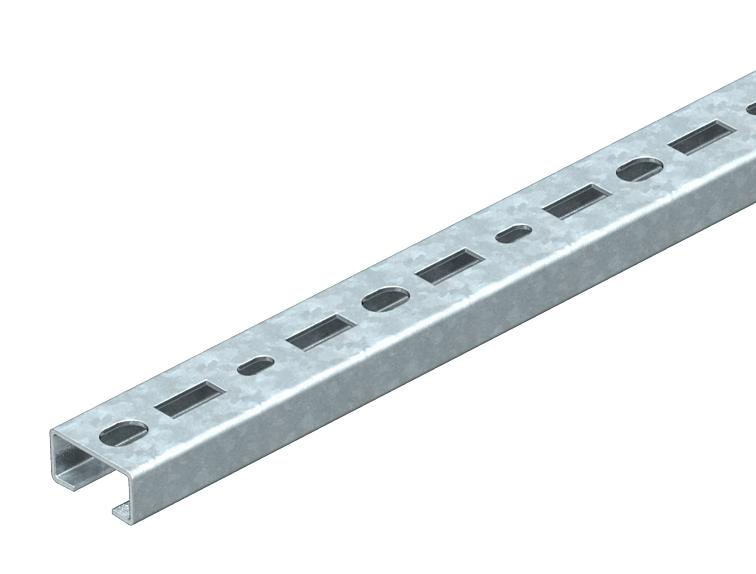

CM3015 profile rail, slot 16 mm, FT, perforated
Item no. 1109847 | EAN 4012195037330
- Product description
-
Product descriptionProfile rail, perforated, slot width 16 mm.
-
- Technical data
-
Technical data

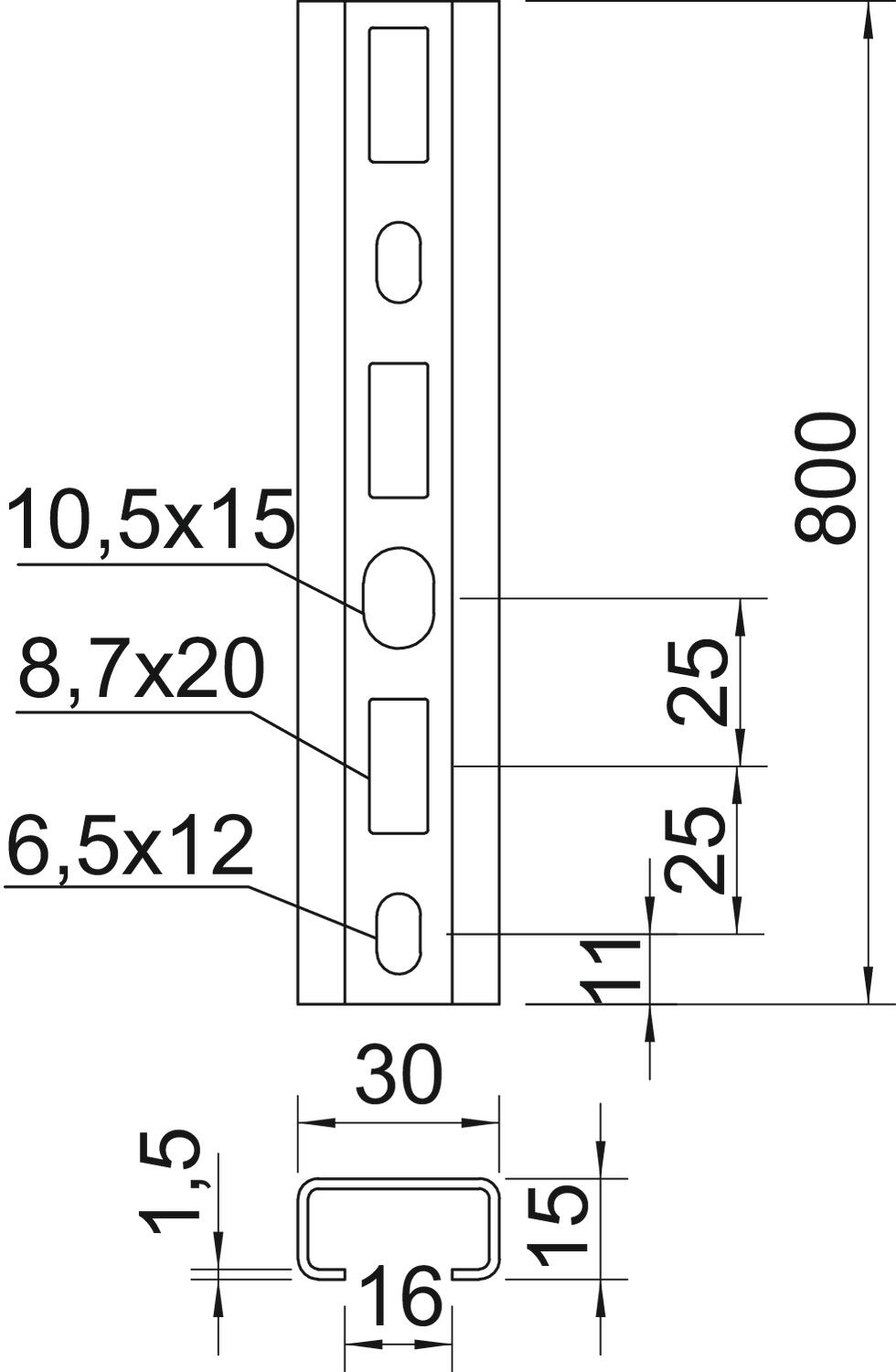

Breakable no CO2 Footprint (GWP) Cradle-to-Gate 1,2973 kg CO2e / 1 Piece Dimension 800x30x15 Dimension L 800 mm Drill hole spacing, centre 25 mm Height 15 mm Length 800 mm Maintain electrical functions no Material Steel Material thickness 1,5 mm Profile shape C profile Slot width 16 mm Static value A 0,8 cm² Static value ly 0,24 cm⁴ Static value lz 1,22 cm⁴ Static value Wy 0,29 cm³ Static value Wz 0,81 cm³ Surface Hot-dip galvanised Type of perforation Perforated back Version for Single profile Width 30 mm With perforation yes With toothing no - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Slide nut ZL
ACMSN M8 ZL 1147060 100 piece
Hammer-head bolt ZL
ACMHB M8x30 ZL 1148060 50 piece - Downloads
-
Data sheet CM3015P0800FT / 1109847 , 0.22MB , pdfBrochure Rail systems , 2.10MB , pdfEU declaration of conformity CM3015P0800FT / 1109847 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity CM3015P0800FT / 1109847 , 0.09MB , pdfREACH Declaration of conformity CM3015P0800FT / 1109847 , 0.12MB , pdfRoHS Declaration of conformity CM3015P0800FT / 1109847 , 0.12MB , pdf
