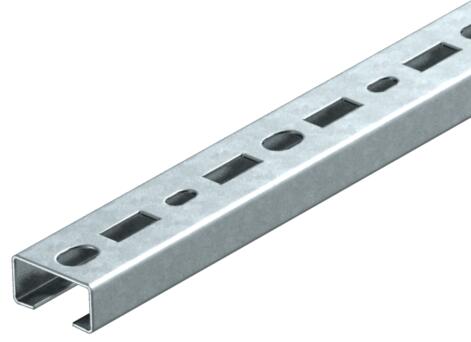

CML3518 profile rail, slot 17 mm, FT, perforated
Item no. 1104562 | EAN 4012196470877
- Product description
-
Product descriptionCentral C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.
-
- Technical data
-
Technical data

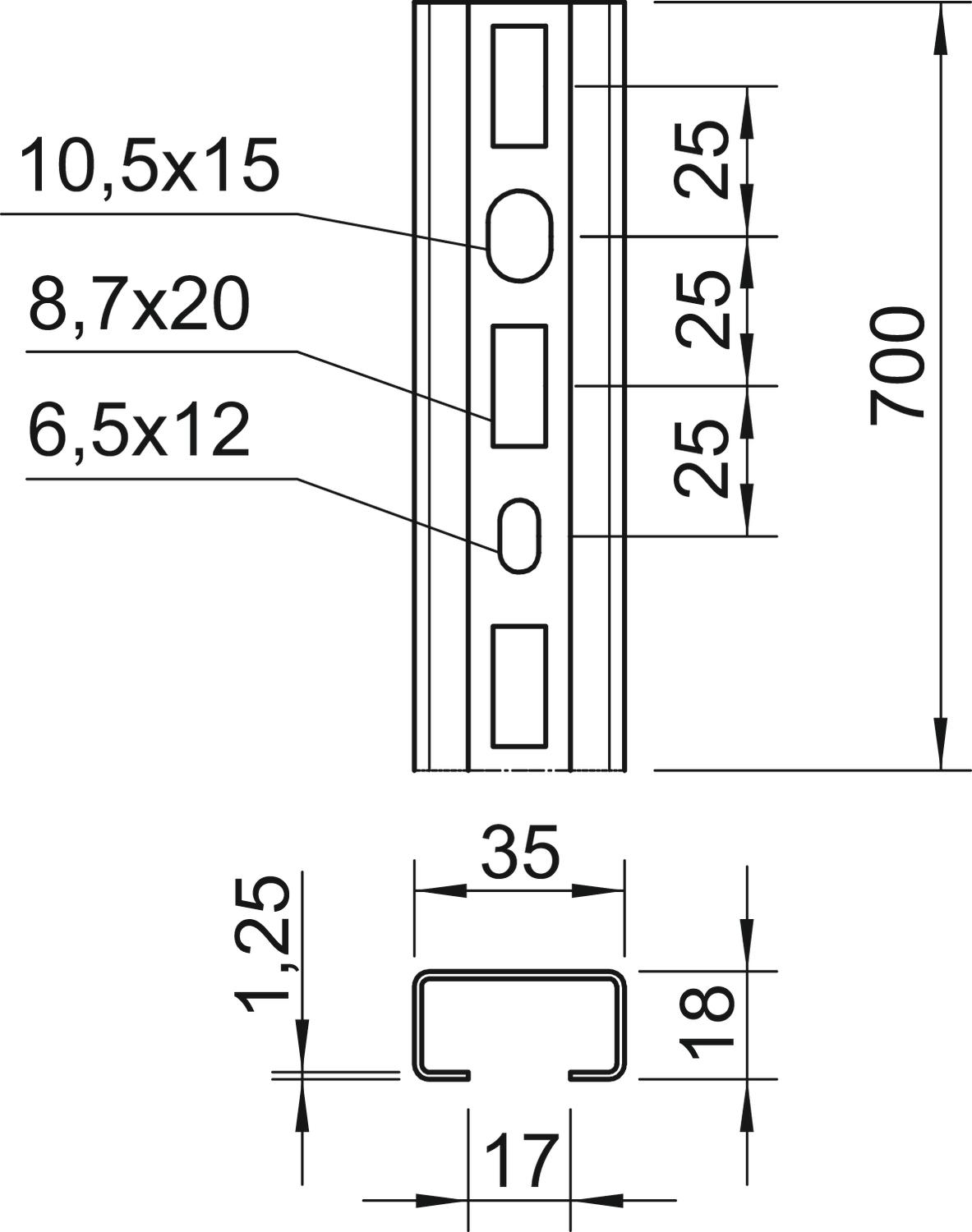

Breakable no CO2 Footprint (GWP) Cradle-to-Gate 1,2134 kg CO2e / 1 Piece Dimension 700x35x18 Dimension L 700 mm Height 18 mm Length 700 mm Maintain electrical functions yes Material Steel Material thickness 1,25 mm Profile shape C profile Rustproof steel, pickled no Slot width 17 mm Static value A 0,88 cm² Static value ly 0,41 cm⁴ Static value lz 1,81 cm⁴ Static value Wy 0,41 cm³ Static value Wz 1,03 cm³ Surface Hot-dip galvanised Type of perforation Perforated back Version for Single profile Width 35 mm With perforation yes With toothing no - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Slide nut ZL
ACMSN M8 ZL 1147060 100 piece
Hammer-head bolt ZL
ACMHB M8x30 ZL 1148060 50 piece - Downloads
-
