- Product description
-

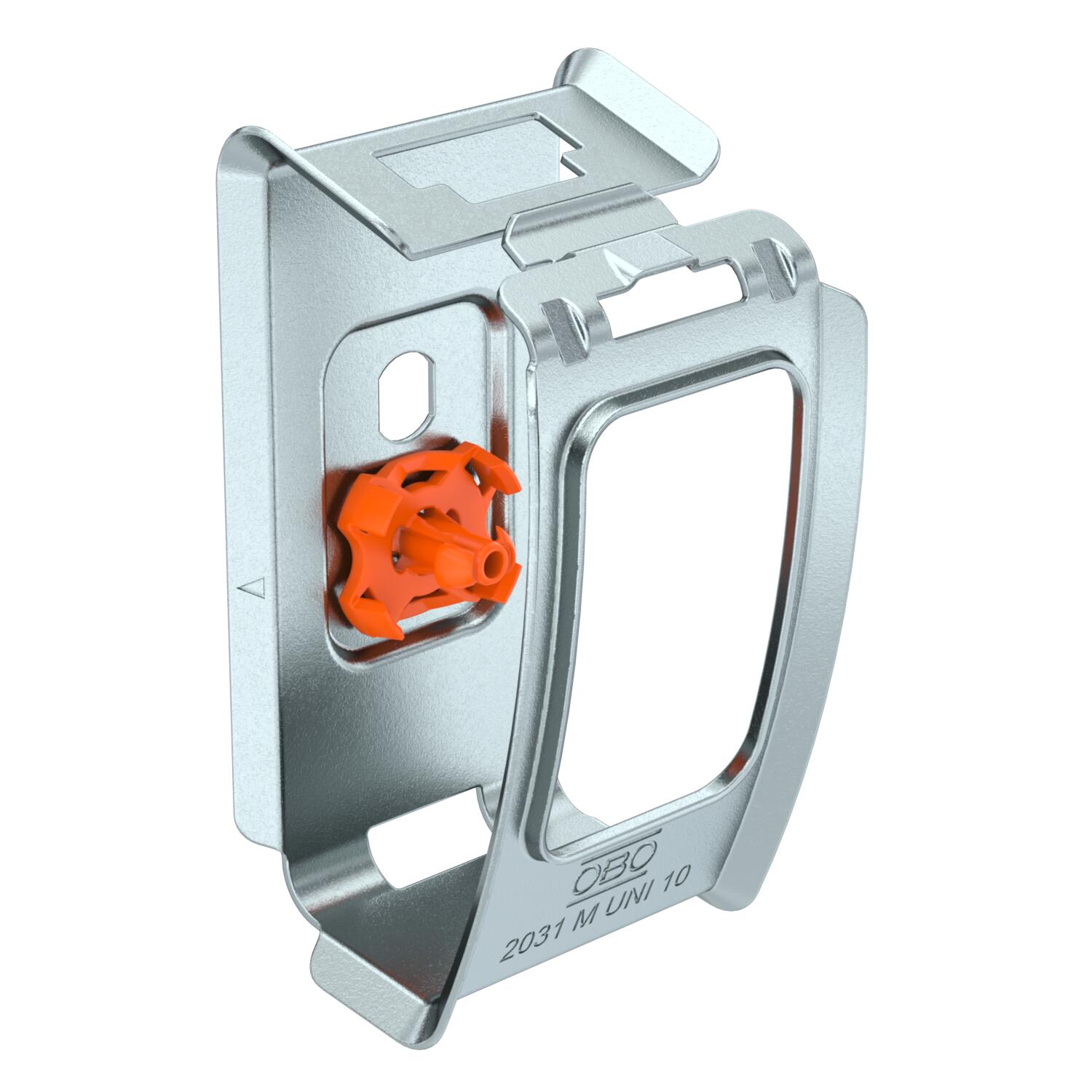

Product descriptionMetal collection clamp for laying cables on walls or ceilings. Direct fastening via a plastic adapter or via classic screw mounting through a separate fastening hole Ø 6 mm. Universal adapter for single-handed mounting with various firing tools, such as from Hilti, Würth, Spit, Bosch. High mechanical resistance also in the event of fire. Halogen-free, non-combustible. Suitable for safe mounting above fire protection ceilings. Also approved as a cable-specific variant for the maintenance of electrical functionality to DIN 4102 part 12. The lock can be opened without tools. Detailed information on the approved routing variants can be found in the appropriate testing documentation.
-
- Technical data
-
Technical data
Colour zinc Dimension 10x NYM3x1,5 Halogen-free yes Maintain electrical functions yes Material Steel No. of conductors NYM 3 x 1.5 10 Surface Strip galvanised With anchor no - All types
- Downloads
-
Catalogue Fastening materials , 19.78MB , pdfNo invitation to tender text is available for this product.
