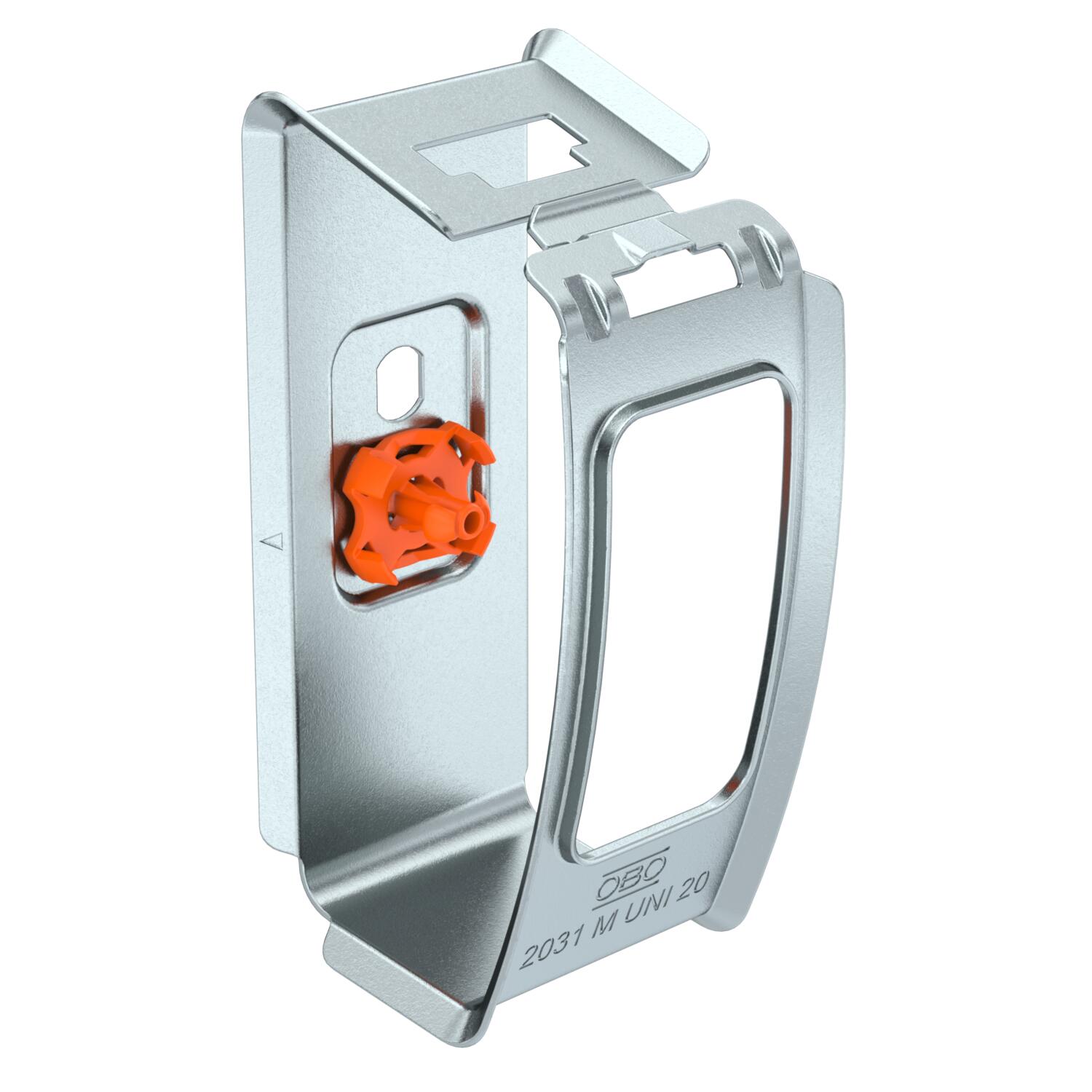

Collection clamp Grip for direct fastening

Item no. 2207214 | EAN 4012197490034

2207214 / 2031 M UNI 20 FS
20
Product description
Product description
Metal collection clamp for laying cables on walls or ceilings. Direct fastening via a plastic adapter or via classic screw mounting through a separate fastening hole Ø 6 mm. Universal adapter for single-handed mounting with various firing tools, such as from Hilti, Würth, Spit, Bosch. High mechanical resistance also in the event of fire. Halogen-free, non-combustible. Suitable for safe mounting above fire protection ceilings. Also approved as a cable-specific variant for the maintenance of electrical functionality to DIN 4102 part 12. The lock can be opened without tools. Detailed information on the approved routing variants can be found in the appropriate testing documentation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • gas-/battery-actuated setting tool
Technical data

Technical data

Colour zinc
Dimension 20x NYM3x1,5
Halogen-free yes
Maintain electrical functions yes
Material Steel
No. of conductors NYM 3 x 1.5 20
Surface Strip galvanised
With anchor no
All types

All types

Types No. of conductors NYM 3 x 1.5 Item no. Quantity SSU
2031 M UNI 20 FS 20 2207214
1 piece
