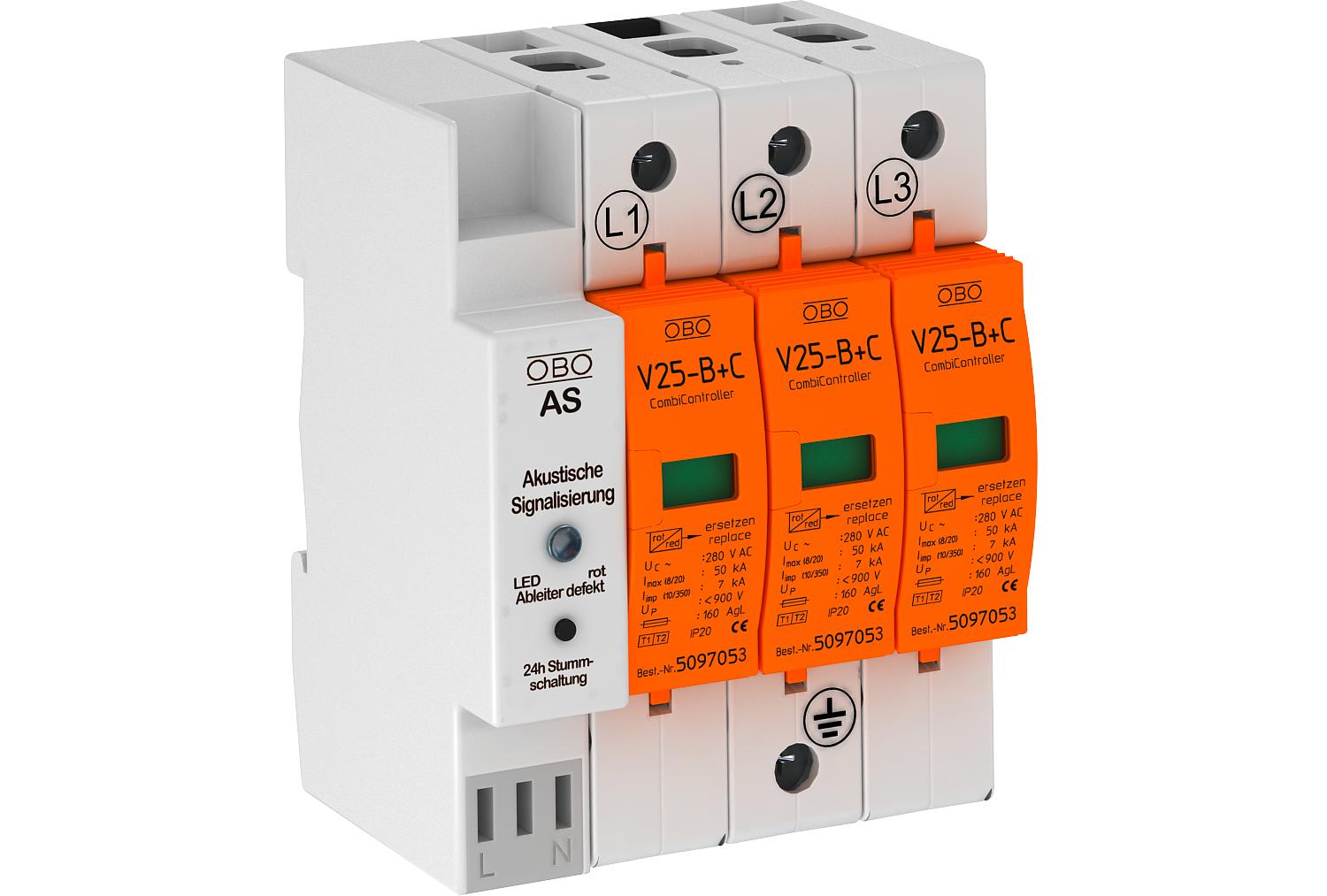

Combination arrester V25 3-pole 280 V with acoustic signalling
Item no. 5097185 | EAN 4012195945314
- Product description
-
Product description
Combination arrester consisting of lightning current and surge arrester type 1+2
• Complete unit consisting of upper part and base, pre-mounted and ready for connection
• Suitable for TN network systems
• With audible signalling for function monitoring, signal tone can be turned off with 24 h repeat
• Plug-in arrester with dynamic cut-off unit
• Visual function display
• Voltage protection level < 900 V
• Encapsulated, non-extinguishing zinc oxide varistor arrester for use in standard distributor housings
• Labelled connections
Application example: Buildings with open-wire power supply.
*Complete = cover and base
With audible alarm system
-
- Technical data
-
Technical data
Blow-out no Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Dimension 280V Lightning protection zone LPZ 0→2 Lightning surge current (10/350 μs) 7 kA Lightning surge current (10/350) 21 kA Maximum back-up fuse 160 A Maximum continuous voltage AC 280 Maximum discharge current (8/20 μs) 50 kA Network form Other Nominal discharge current (8/20 µs) 30 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole number 3 Pole version 3 Protection rating IP20 Remote signalling no Response time <25 ns Signalling on device Optical and acoustic SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II TN network form yes TN-C network form yes Version for 3-pole with AS Connectivity options
Arrester surge current (8/20 µs) [total] 90 kA Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Max. mains-side overcurrent protection 160 - All types
