Combination arrester V50, 1-pole + NPE 280 V 1+N/PE | 280 | IP66
morepic-1 morepic-2 video-1

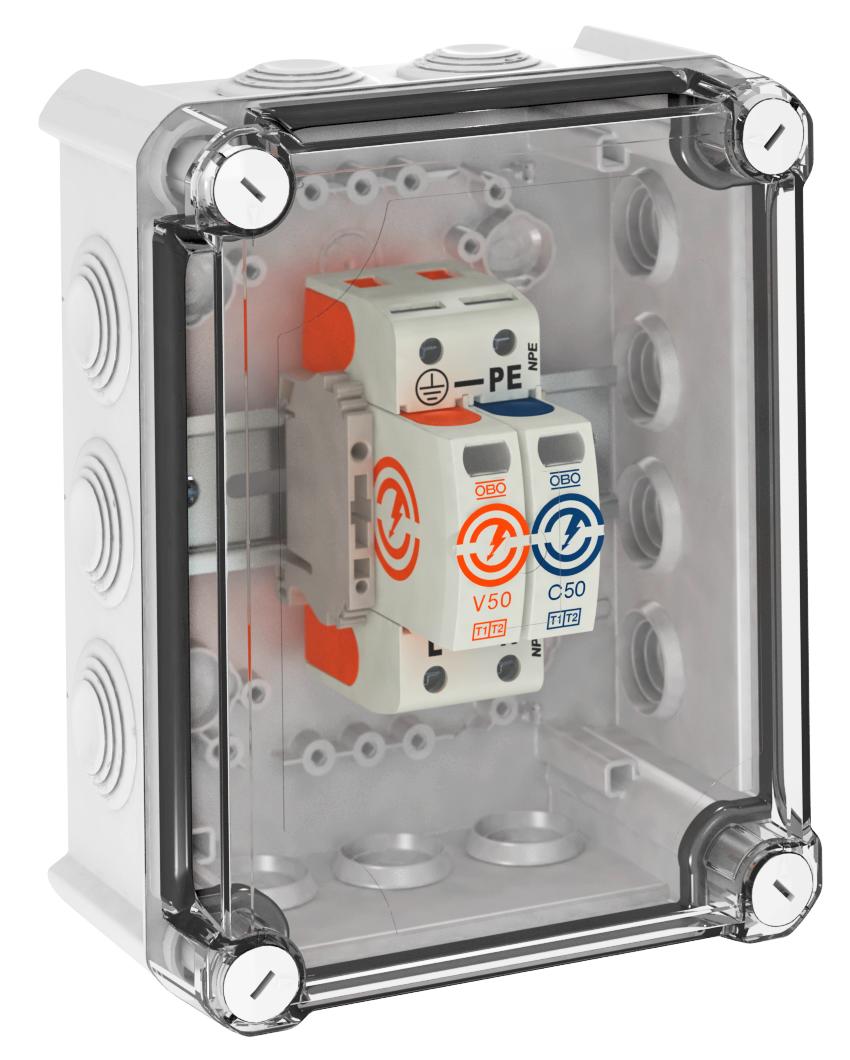

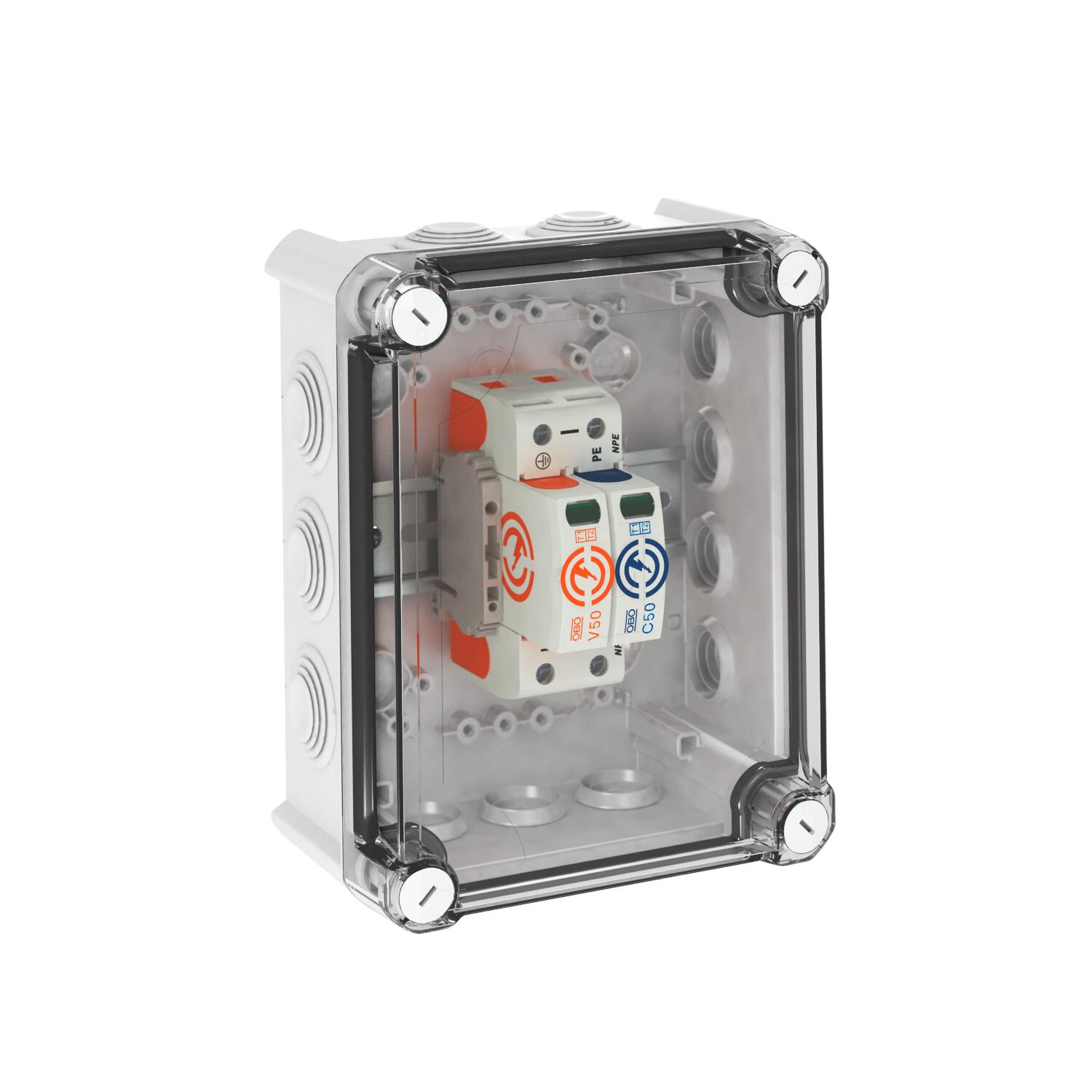

Combination arrester V50, 1-pole + NPE 280 V

Item no. 5093594 | EAN 4012196423217

280
IP66
Product description

Product description

Lightning current combination arrester, type 1+2 to DIN EN 61643-11

• For lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• Complete unit, pre-mounted and ready for connection in polycarbonate housing (IP66)
• Lightning current arresting capacity 12.5 kA (10/350) per pole and up to 50 kA (10/350) in total

Application: Lightning protection equipotential bonding for buildings of Class III and IV.

If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!




* Complete = upper part and base
  • Underwriters Laboratories Inc., USA
  • Österreichischer Verband für Elektrotechnik, Austria
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • 5-year warranty
  • Transition from LPZ 0 to LPZ 2
  • Combination protection device made of type 1 and type 2
  • Halogen-free; without chlorine, fluorine and bromine
Technical data

Technical data

Approvals VDE
Blow-out no
Conductor cross-section, flexible (fine-wire), max. 2 AWG
Conductor cross-section, flexible (fine-wire), max. 35 mm²
Conductor cross-section, flexible (fine-wire), min. 1,5 mm²
Conductor cross-section, flexible (fine-wire), min. 16 AWG
Conductor cross-section, rigid (single-wire/multiwire), max. 2 AWG
Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min. 16 AWG
Dimension 280V
Follow current quenching capacity (eff) [N-PE] 0,1 kA
Installation type Pre-mounted in the housing
Integrated back-up fuse no
Lightning surge current (10/350 μs) 12,5 kA
Lightning surge current (10/350) 25 kA
Maximum back-up fuse 160 A
Maximum continuous voltage (L-N) 280 V
Maximum continuous voltage (N-PE) 255 V
Maximum continuous voltage AC 280
Maximum continuous voltage DC 350
Maximum discharge current (8/20 μs) 50 kA
Maximum discharge current (8/20 μs) [L-N] 50 kA
Network form Other
Nominal discharge current (8/20 µs) 30 kA
Nominal discharge current (8/20 µs) [L-N] 30 kA
Nominal voltage AC (50/60 Hz) 230 V
Operating temperature, max. 80 °C
Operating temperature, min. -40 °C
Pole number 1
Pole version 1+N/PE
Protection rating IP66
Remote signalling no
Residual voltage [L-N] @ 12.5 kA 1 kV
Response time <25 ns
Signalling on device Visual
SPD to EN 61643-11 Type 1+2
SPD to IEC 61643-1 Class I+II
TN network form yes
TN-C-S network form yes
TN-S network form yes
Torque 4 Nm
TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms 1200 V
TT network form yes

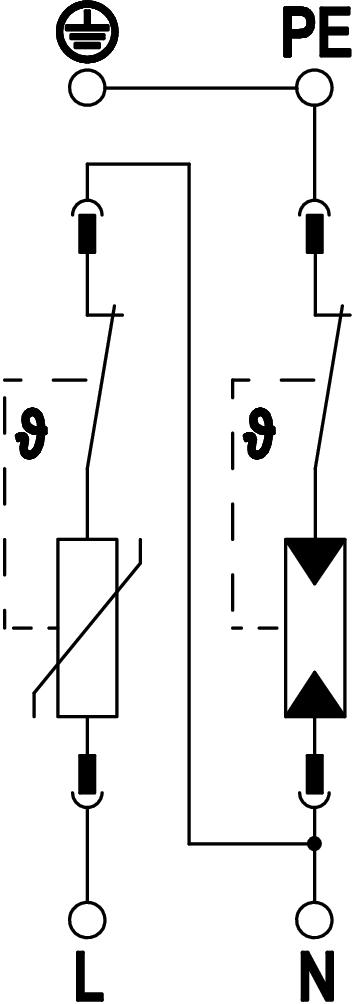

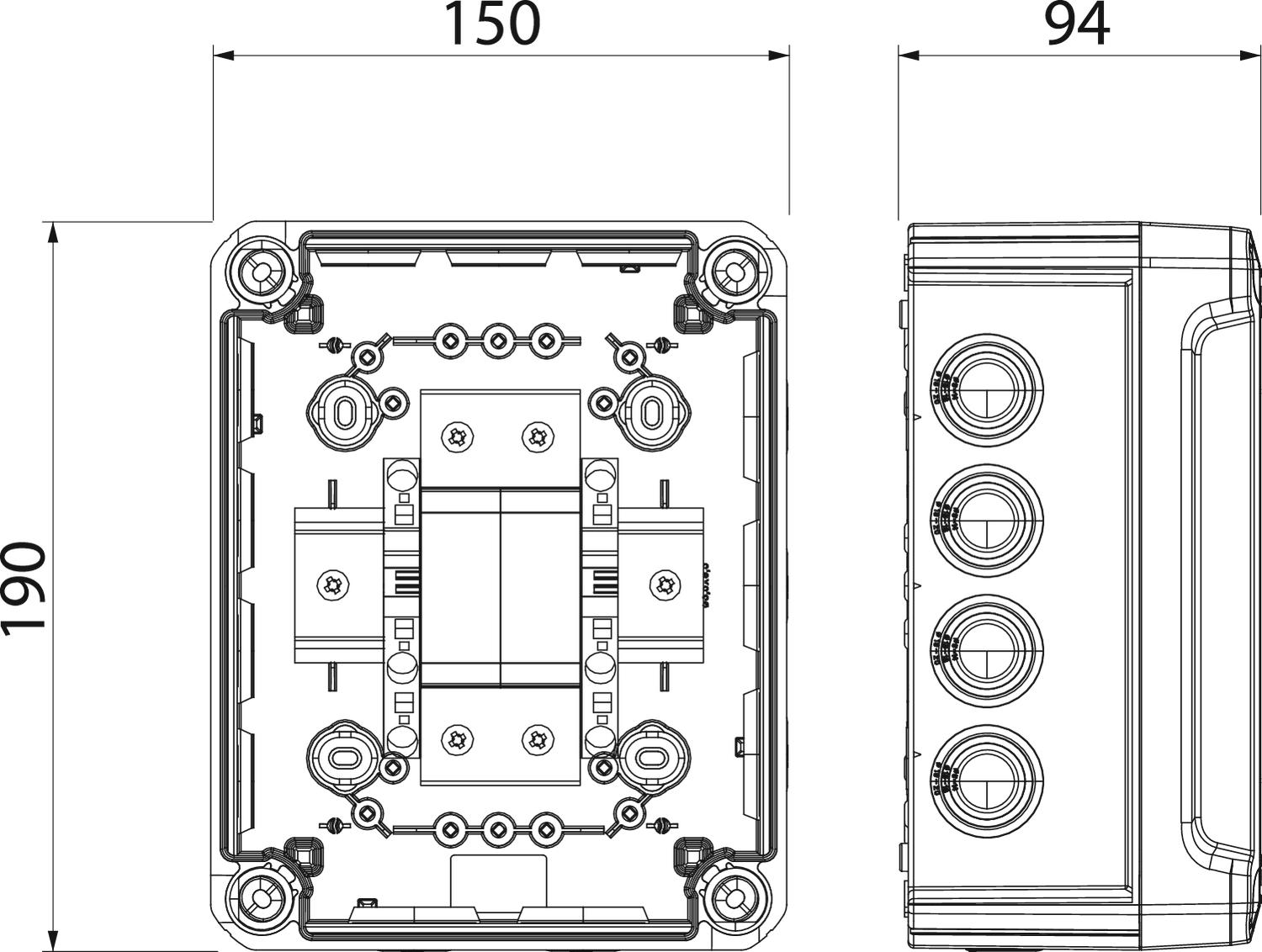

Dimensions

Minimum distance 1,5 mm

Connectivity options

Arrester surge current (8/20 µs) [total] 50 kA
Conductor cross-section, rigid (single-wire/multiwire), min. 1,5 mm²
Connection cross-section, FM terminals, max. 16 AWG
Connection cross-section, FM terminals, max. 1,5 mm²
Connection cross-section, FM terminals, min. 21 AWG
Connection cross-section, FM terminals, min. 0,5 mm²
Max. mains-side overcurrent protection 160 A gL/gG
Protection level [L-N] ≤1,3
Residual voltage [L-N] @ 1 kA 0,7 kV
Residual voltage [L-N] @ 5 kA 0,8 kV
Short-circuit resistance for max. mains-side overcurrent protection 50 kA eff
SPD to UL 1449 Type 4
TOV voltage [L-N] ‒ fail safe mode ‒ 120 min. 440 V
TOV voltage [L-N] ‒ withstand mode ‒ 5 s 335 V
All types

All types

Types Pole version Maximum continuous voltage AC Protection rating Item no. Quantity SSU
VG-V50-1+NPE-280 1+N/PE 280 IP66 5093594
1 piece
VG-V50-3+NPE-280 3+N/PE 280 IP66 5093596
1 piece
