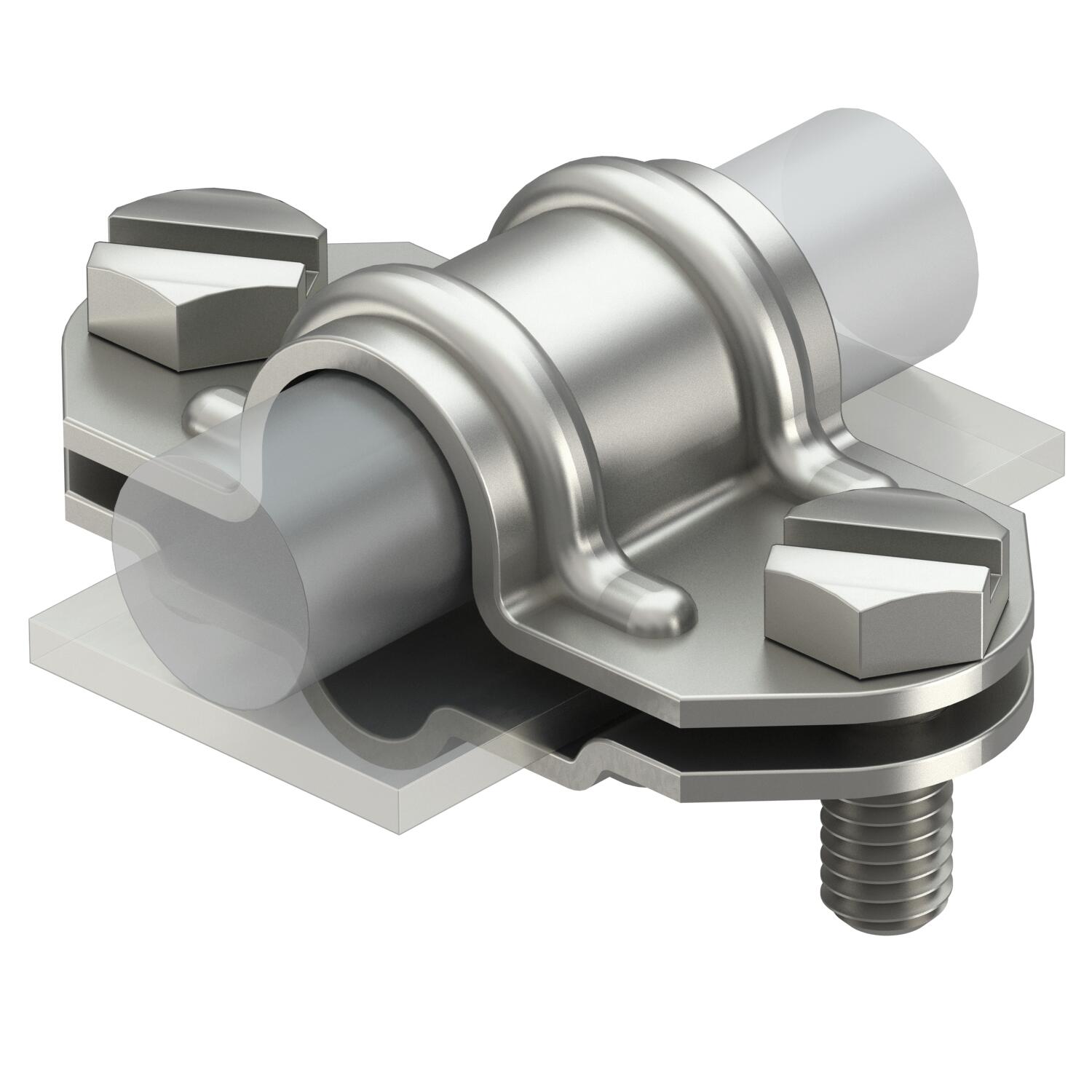

Connection clip for earth rod ø16
Item no. 5001610 | EAN 4012197460259
- Product description
-
Product description• Complies with the requirements according to VDE 0185-305-3 (IEC/ EN 62305-3)
• Suitable for connecting round conductor Rd 8-10 or flat conductor to FL 30 to earth rod ø16
• Mounted with 2 hexagonal bolts M8 x 20
-
- Technical data
-
Technical data
Clamping range, max. 10 mm Clamping range, min. 8 mm Earthing connection diameter 16 mm Fit Rd 8-10/FL30 x 16 mm for earth rods 16 mm Length 70 mm Suitable for round conductor diameters, max. 10 mm Suitable for round conductor diameters, min. 8 mm Type Connection clip Width 30 mm - All types
- Downloads
-
Data sheet 226 V4A / 5001610 , 0.15MB , pdfREACH Declaration of conformity 226 V4A / 5001610 , 0.13MB , pdfRoHS Declaration of conformity 226 V4A / 5001610 , 0.13MB , pdfNo invitation to tender text is available for this product.
