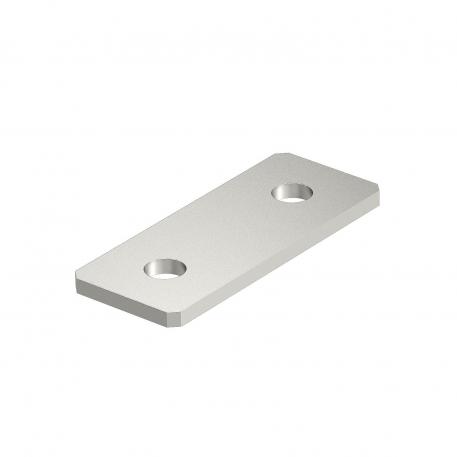

Connection plate with 2 holes A4

Item no. 1124725 | EAN 4012195805144

1124725 / GMS 2 VP A4
100 mm
40 mm
Product description
Product description
Connection plate with two holes for straight connection of profile rails 41 x 41 mm and 41 x 21 mm.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,5529 kg CO2e / 1 Piece

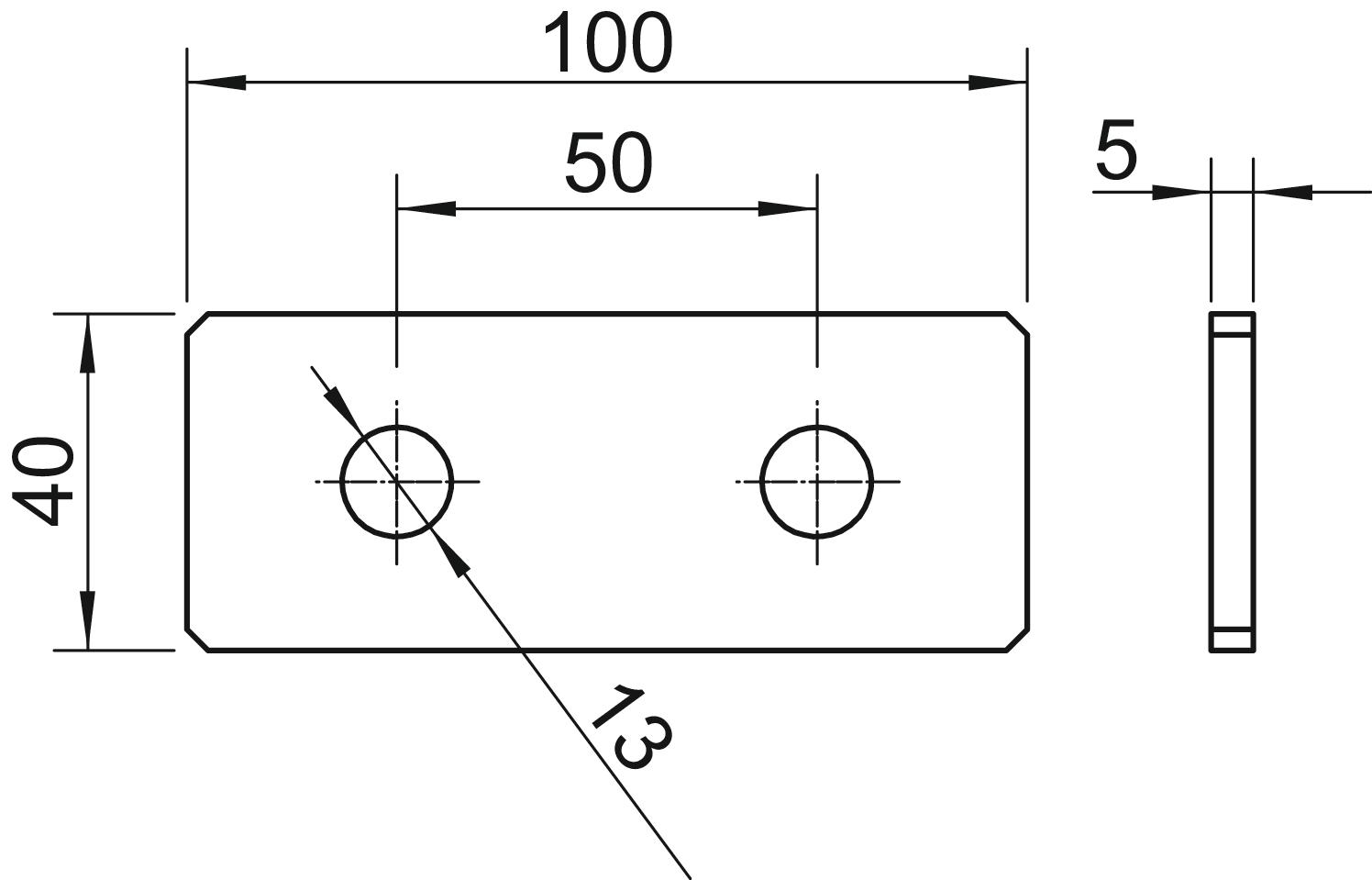

Dimension 100x40x4
Height 4 mm
Hole size 13 mm
Length 100 mm
Material Stainless steel 1.4571
Material thickness 4 mm
Rustproof steel, pickled no
Suitable for profile shapes C profile
Surface Bright, treated
Version for With continuous perforation 13 mm
Width 40 mm
With screw accessories no
All types

All types

Types Length Width Item no. Quantity SSU
GMS 2 VP A4 100 mm 40 mm 1124725
10 piece
Downloads

Download

Download

EU declaration of conformity GMS 2 VP A4 / 1124725 , 0.06MB , pdf
Download
REACH Declaration of conformity GMS 2 VP A4 / 1124725 , 0.12MB , pdf
Download
RoHS Declaration of conformity GMS 2 VP A4 / 1124725 , 0.12MB , pdf
Download

GMS 2 VP A4 / 1124725
