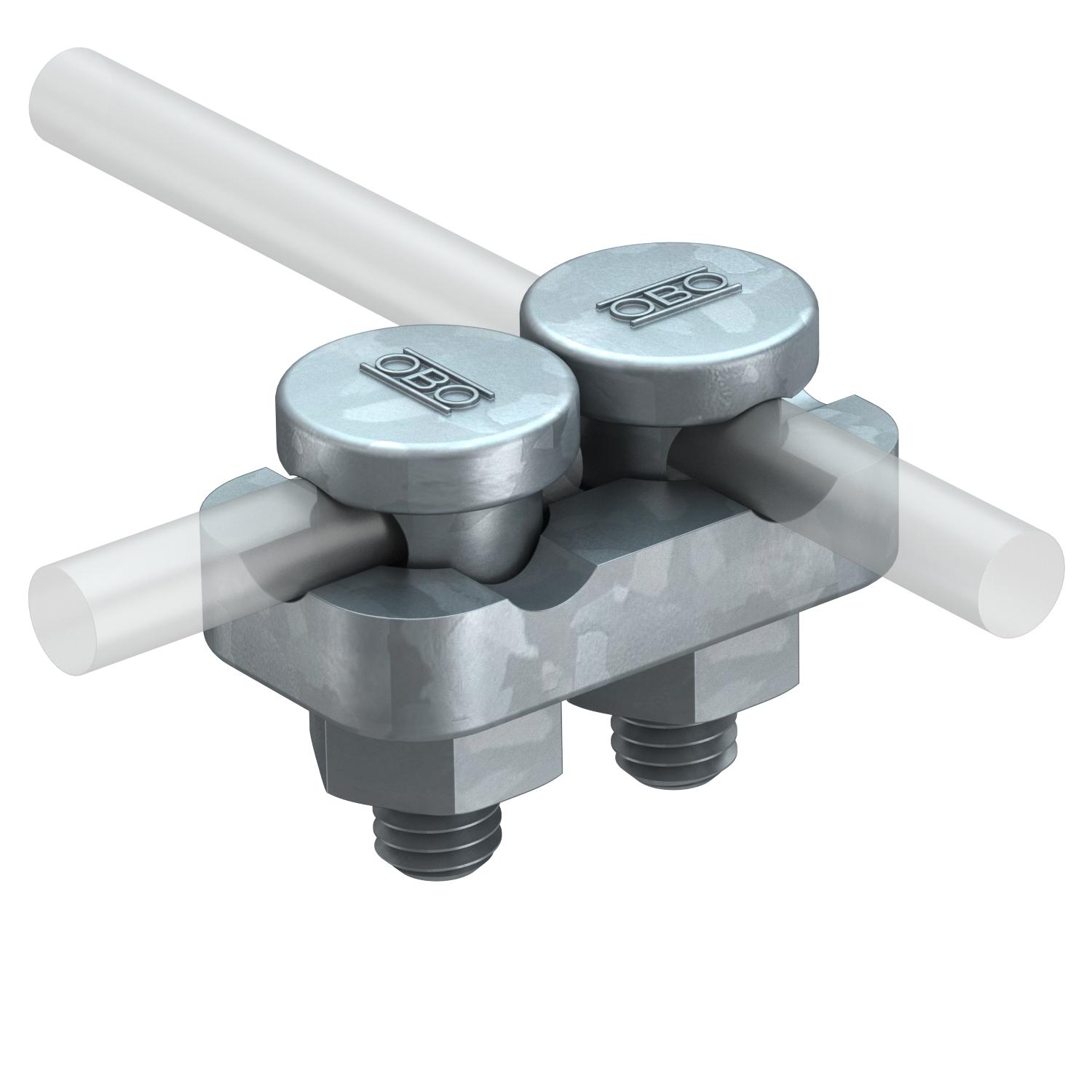

Connector Rd 8−10 mm, double
Item no. 5304202 | EAN 4012195416050
- Product description
-
Product description
• With 2 fix contact clamping screws, nut and serrated washer
• Including pre-mounted connecting pressure piece, die-cast zinc or copper-plated die-cast zinc
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data

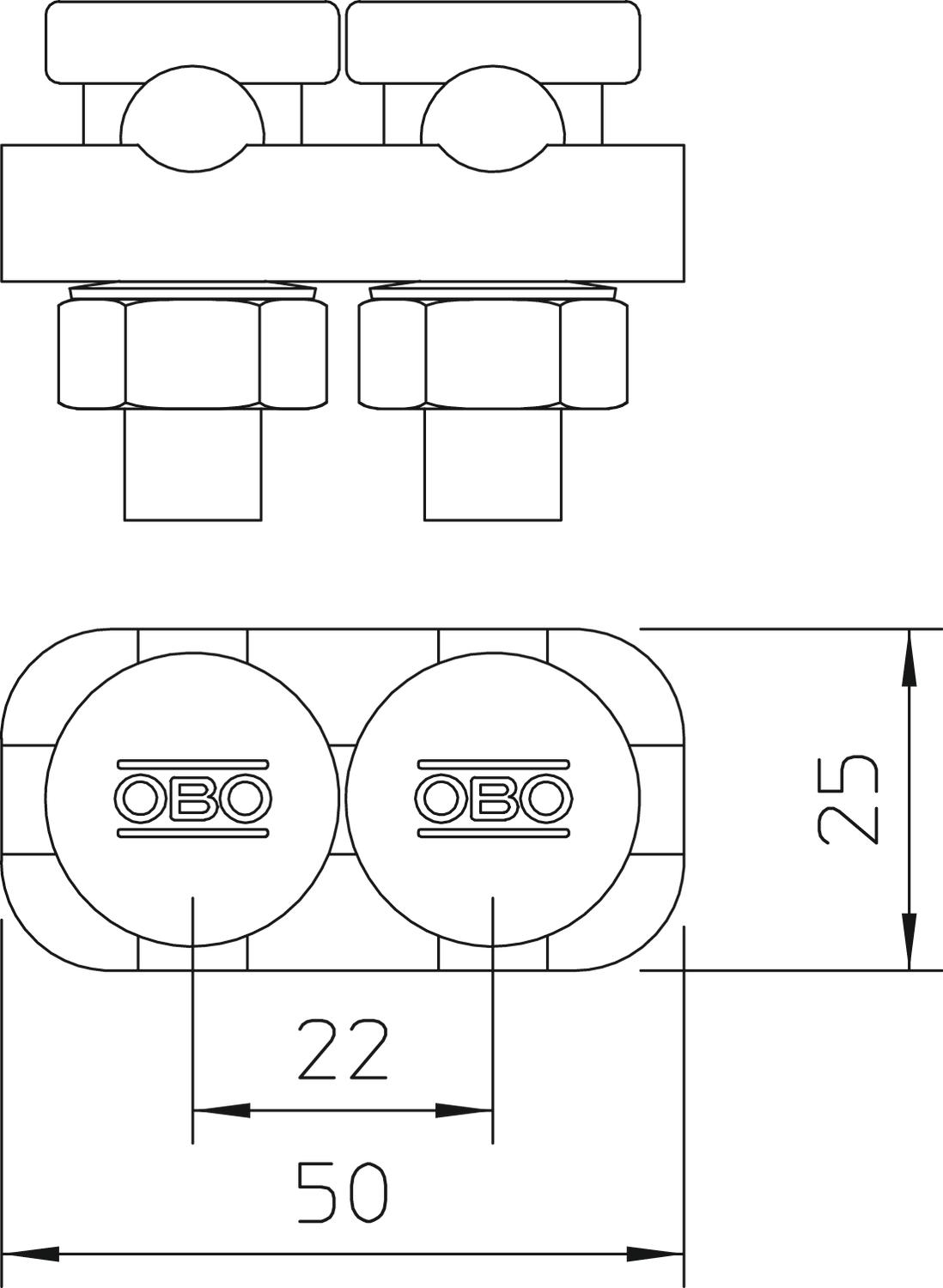

Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Steel Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Surface Hot-dip galvanised Type of connector Connectors Type of fastening screw Clamping screw - All types
- Downloads
-
Data sheet 5002 DIN-FT / 5304202 , 0.15MB , pdfDeclaration of conformity 5002 DIN-FT / 5304202 , 0.06MB , pdfREACH Declaration of conformity 5002 DIN-FT / 5304202 , 0.12MB , pdfRoHS Declaration of conformity 5002 DIN-FT / 5304202 , 0.12MB , pdf
