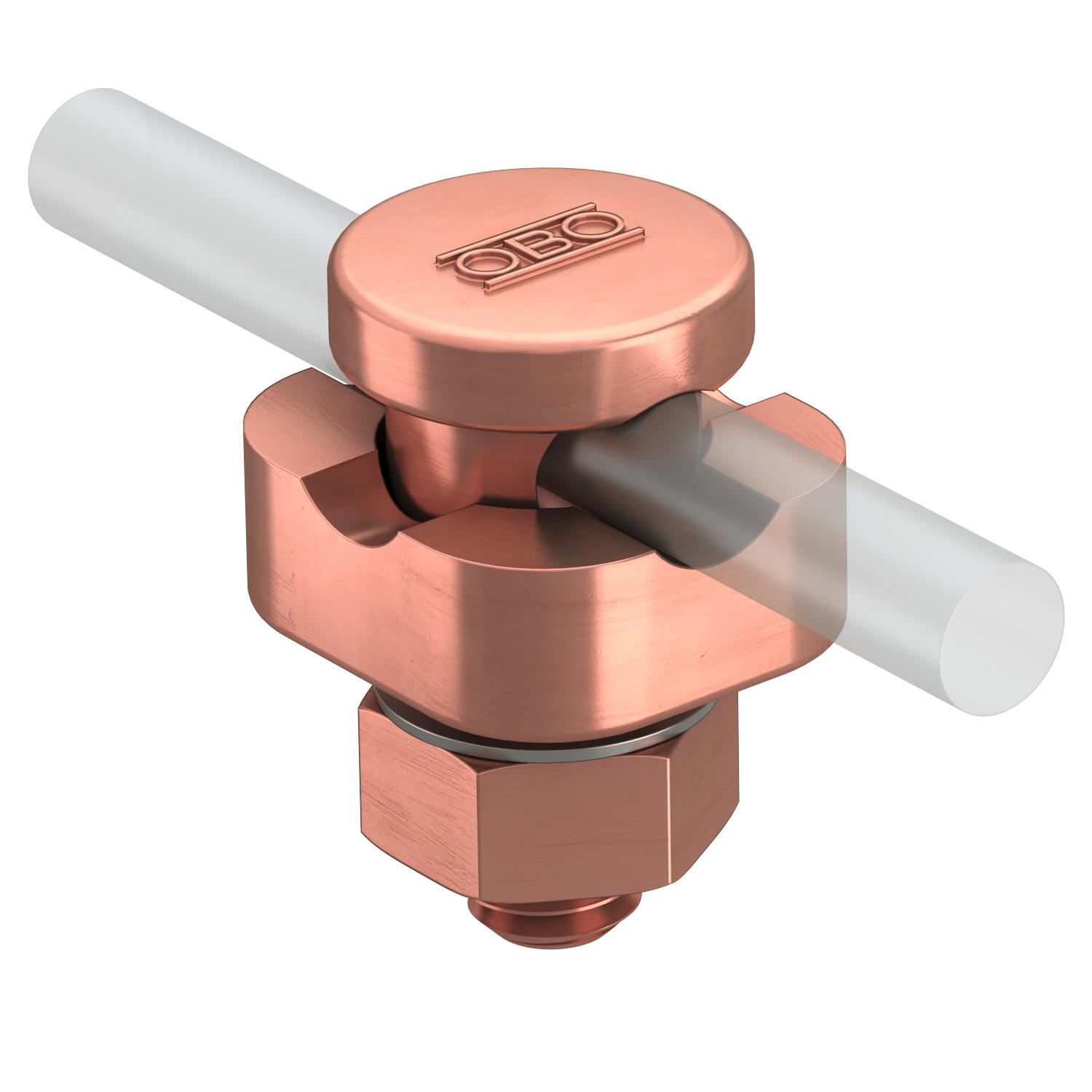

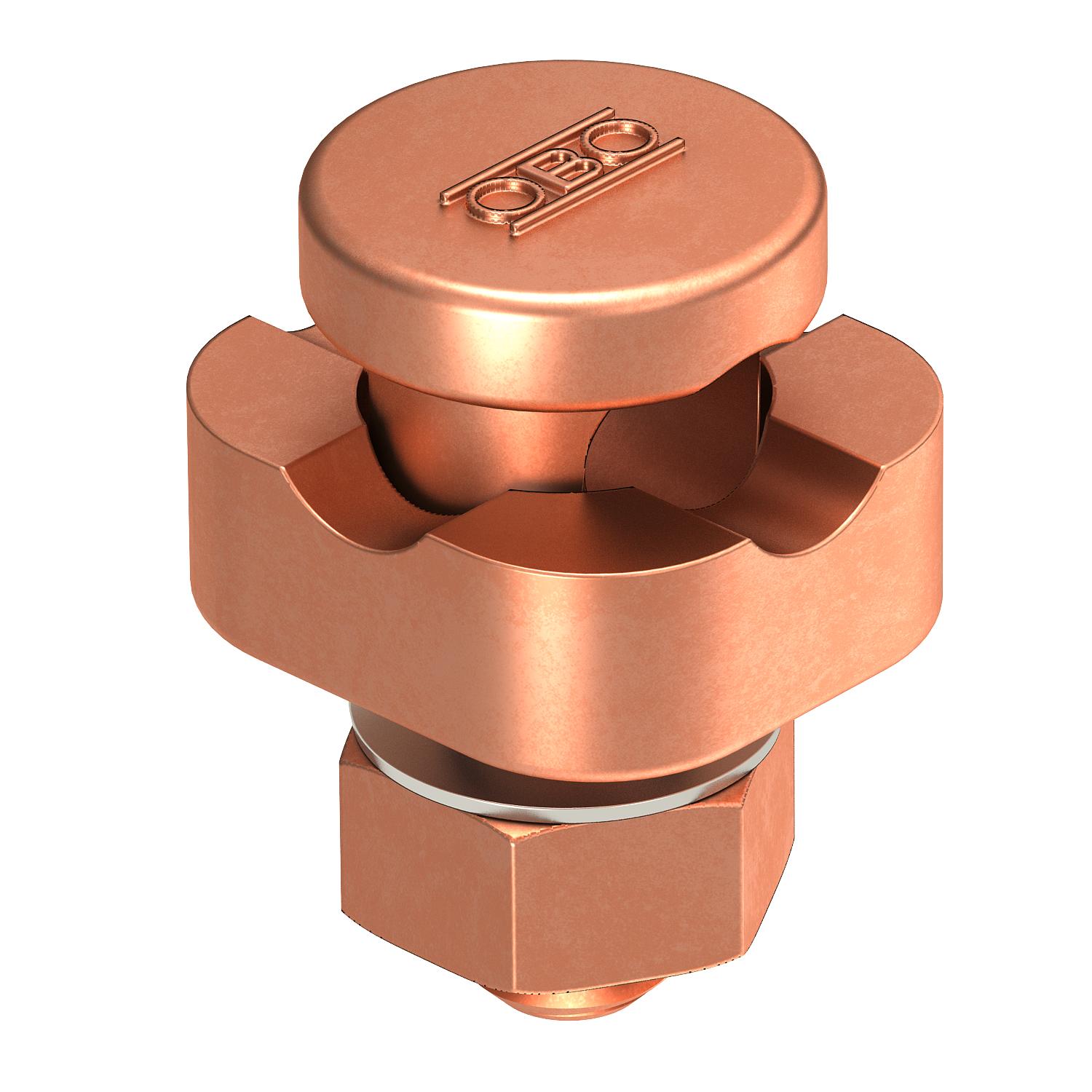

Connector Rd 8−10 mm, single, copper
Item no. 5304113 | EAN 4012195415930
- Product description
-
Product description
• With Fix-Kontakt clamping screw, nut and serrated washer
• With 10.2 mm drill hole
• With pre-mounted thrust piece made of die-cast zinc
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Die-cast zinc Suitable for connection Miscellaneous Surface Copper-plated Type of connector Connectors Type of fastening screw Clamping screw - All types
- Downloads
-
Data sheet 5001 ZN-CU / 5304113 , 0.14MB , pdfDeclaration of conformity 5001 ZN-CU / 5304113 , 0.06MB , pdfREACH Declaration of conformity 5001 ZN-CU / 5304113 , 0.12MB , pdfRoHS Declaration of conformity 5001 ZN-CU / 5304113 , 0.12MB , pdfMounting instructions Mounting instructions, 5001 ZN-CU , 2.00MB , pdf
