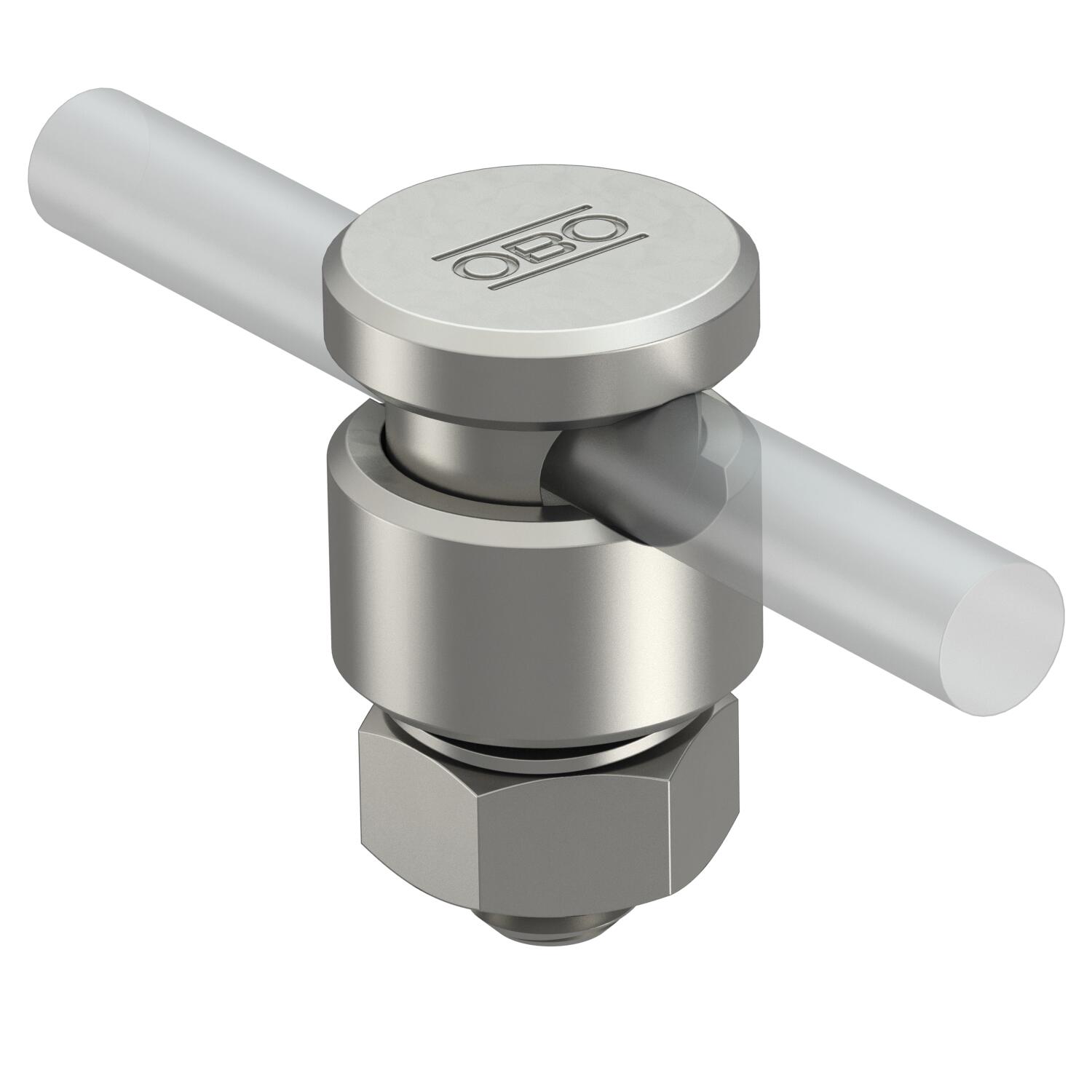

Connector, Rd 8−10 mm with pressure trough
Item no. 5304176 | EAN 4012195892809
- Product description
-
Product description
• With 1 fix contact clamping screw, nut and serrated washer
• Including pre-mounted pressure sump, steel
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity N/50 kA Material Stainless steel Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Type of connector Connectors Type of fastening screw Clamping screw - All types
- Downloads
-
Data sheet 5001 N-VA / 5304176 , 0.14MB , pdfDeclaration of conformity 5001 N-VA / 5304176 , 0.06MB , pdfREACH Declaration of conformity 5001 N-VA / 5304176 , 0.12MB , pdfRoHS Declaration of conformity 5001 N-VA / 5304176 , 0.12MB , pdfMounting instructions Mounting instructions, 5001 N-FT; 5001 N-VA; 5001 N-CU , 2.00MB , pdf
