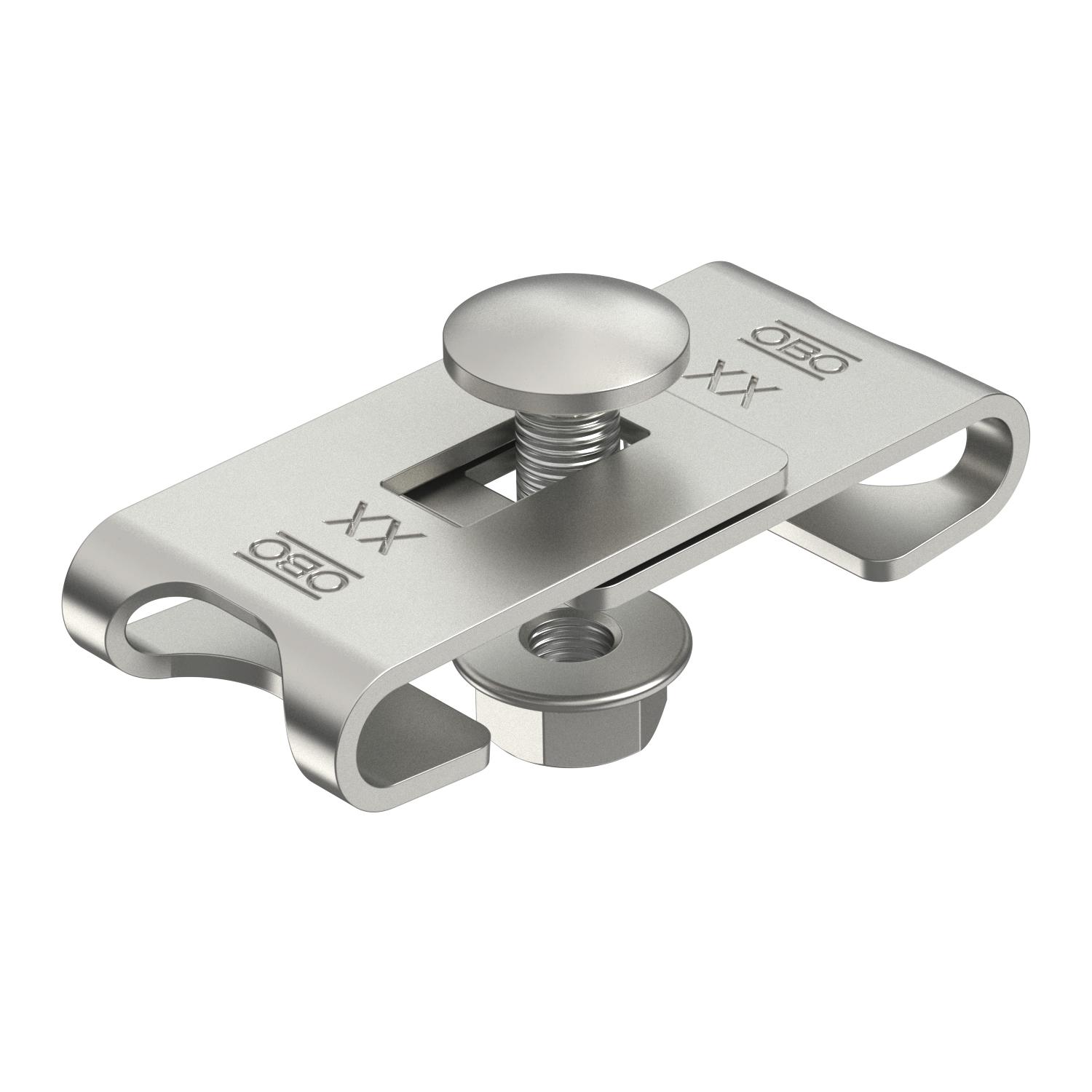

Corner connector A2

Item no. 6016731 | EAN 4012196013333

6016731 / GEV 36 A2
23 mm
Product description

Product description

Corner connector for the creation of mesh cable tray bend elements.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Mesh cable tray, slant height 35 mm
  • Mesh cable tray, slant height 55 mm
  • Mesh cable tray, slant height 105 mm
  • C-mesh cable tray, slant height 50mm
Technical data

Technical data

Connection type Screw connector
Dimension 42-54 x 23
Maintain electrical functions no
Material Stainless steel
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray no
Suitable for mesh cable tray yes
Suitable for mesh cable tray wire, max. 4,9 mm
Suitable for mesh cable tray wire, min. 3,9 mm
Surface Bright, treated
Version for Corner connector

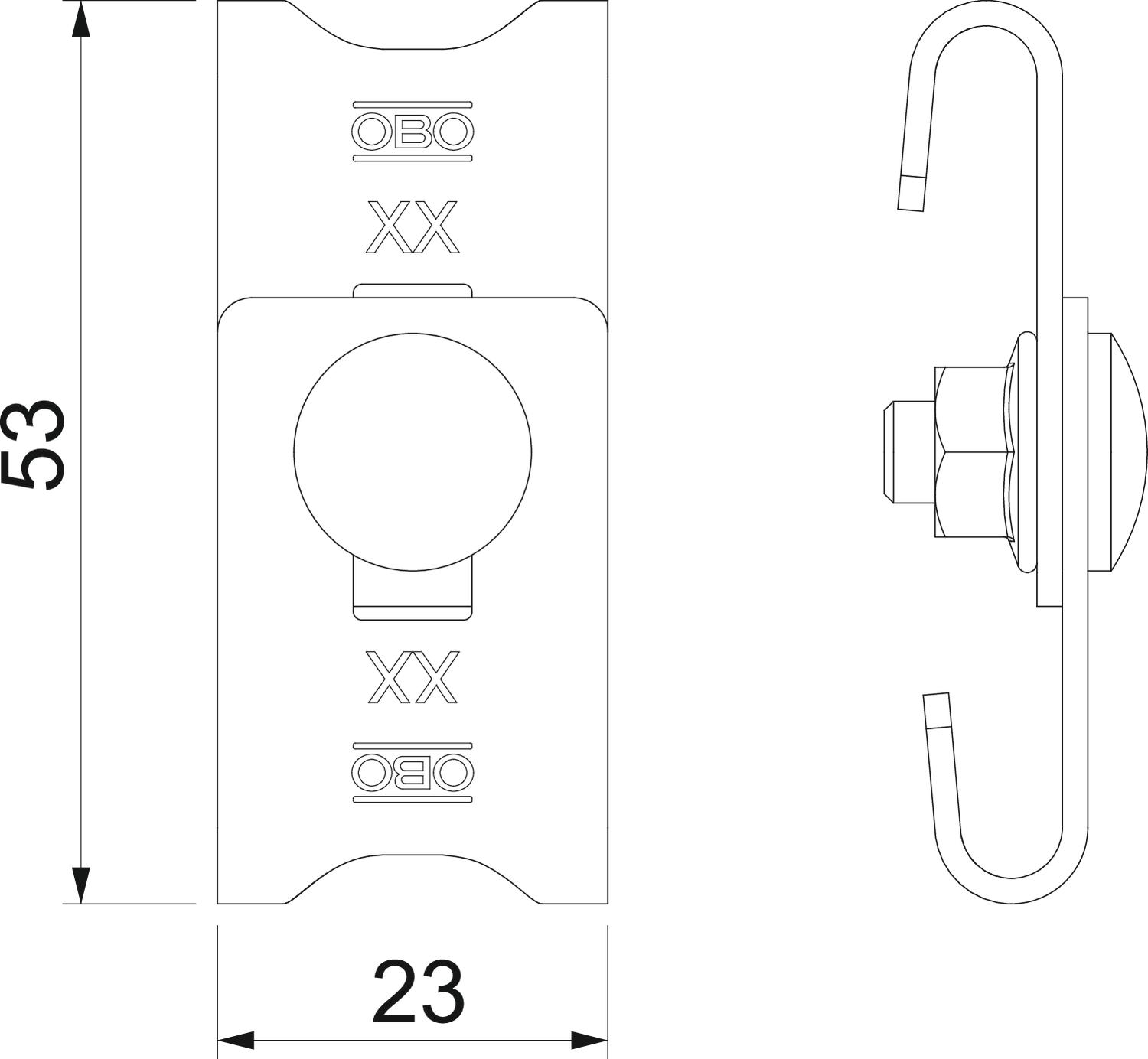

Dimensions

Height 0,63 in
Height 16 mm
Length 56 mm
Width 0,91 in
Width 23 mm
All types

All types

Types Width Item no. Quantity SSU
GEV 36 A2 23 mm 6016731
20 piece
