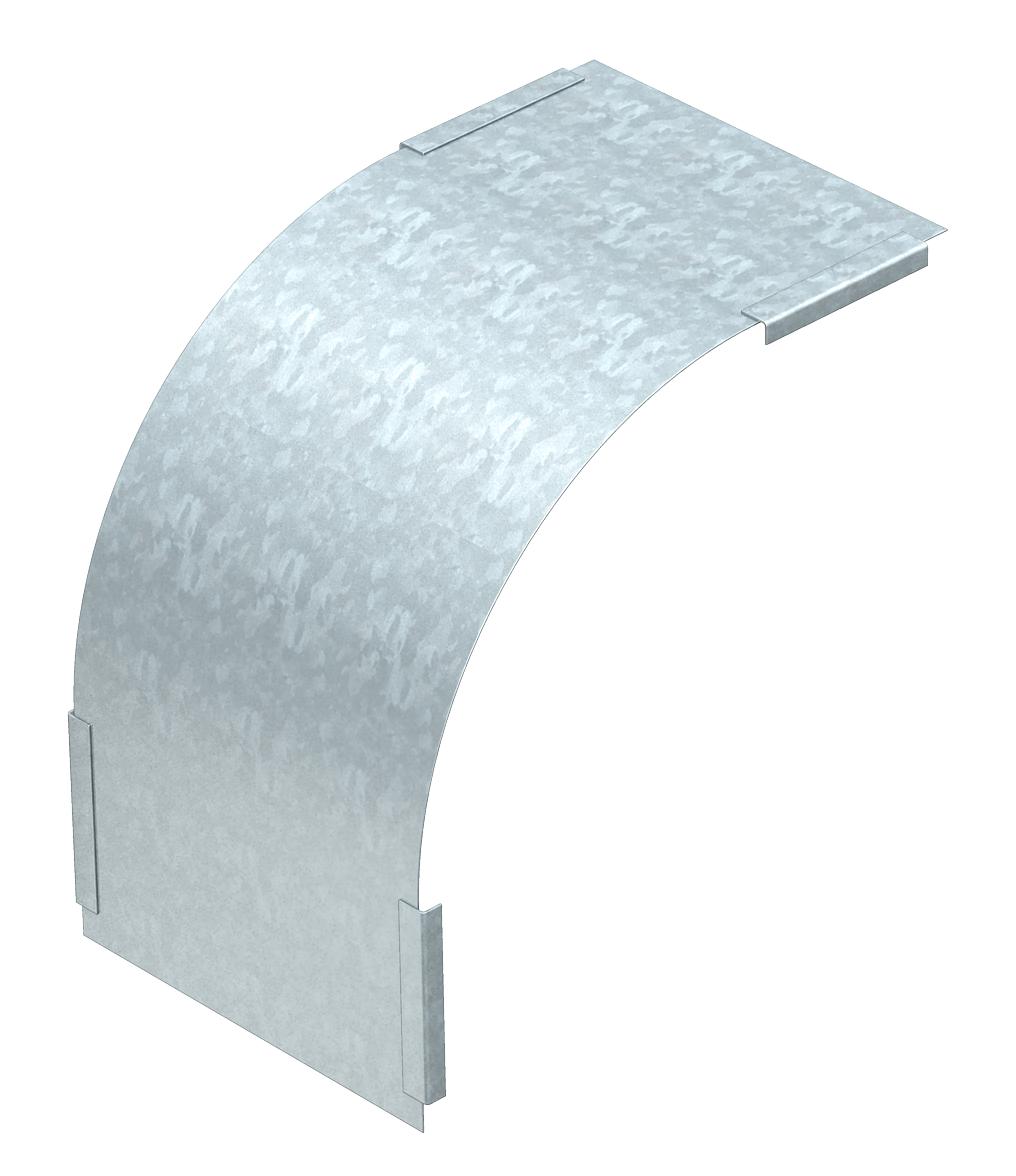

Cover DBV 110 400 F FT for falling vertical bend.
Item no. 7131746 | EAN 4012196401253
- Product description
-
Product descriptionCover for falling vertical bends of side height 110 mm.
The fastening is guaranteed by the overlap of the cable tray covers. The cover can also be fastened using cover clamps.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Vertical, falling CO2 Footprint (GWP) Cradle-to-Gate 4,8268 kg CO2e / 1 Piece Colour zinc Dimension B400mm Fastening type Sash lock Height 110 mm Hinged no Maintain electrical functions no Material Steel Plate thickness 0,75 mm Plate thickness 0,03 in Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised - All types
- Downloads
-
Data sheet DBV 110 400 F FT / 7131746 , 0.16MB , pdfEU declaration of conformity DBV 110 400 F FT / 7131746 , 0.10MB , pdfREACH Declaration of conformity DBV 110 400 F FT / 7131746 , 0.12MB , pdfRoHS Declaration of conformity DBV 110 400 F FT / 7131746 , 0.13MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
