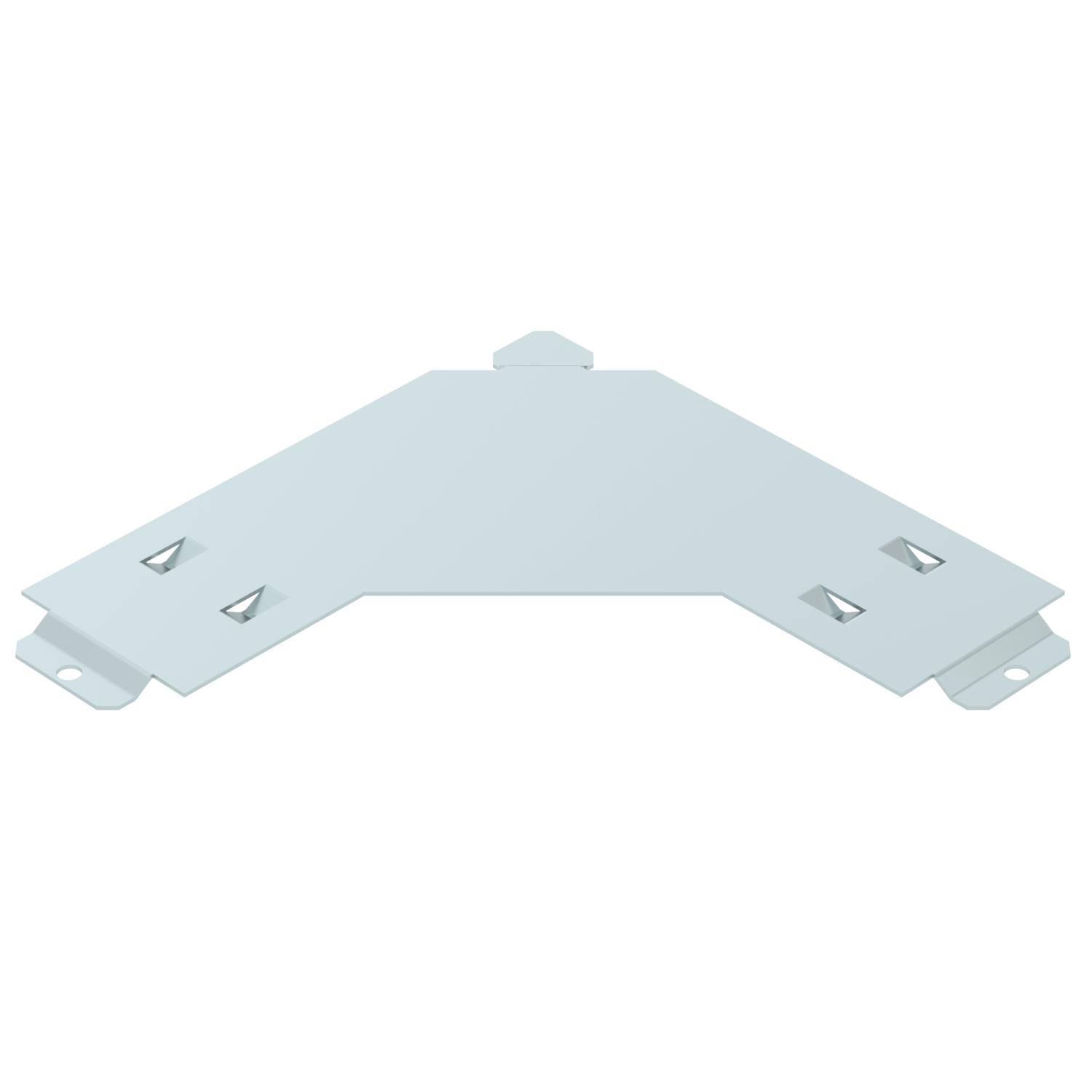

Cover for 90° bend
Item no. 6074952 | EAN 4012195453482
- Product description
-
Product descriptionCover for 90° bend.
-
- Technical data
-
Technical data

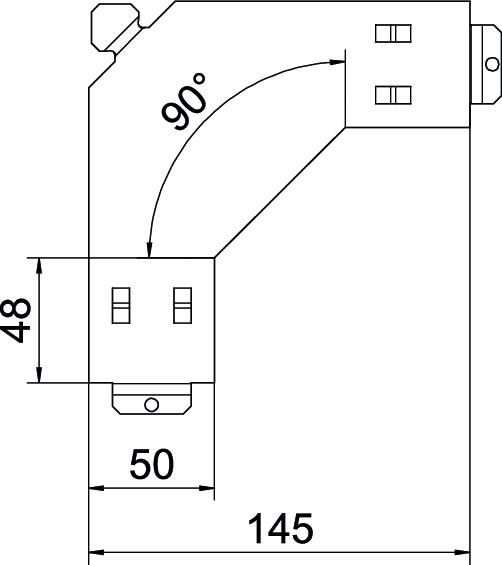

Bend (angle) 90° CO2 Footprint (GWP) Cradle-to-Gate 0,6035 kg CO2e / 1 Piece Colour zinc Dimension 50x50x1,0 Fastening type Screw-on Height 50 mm Hinged no Material Steel Plate thickness 1 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanised zinc/aluminium, Double Dip Width 50 mm - All types
- Downloads
-
Data sheet LTS DFB DD / 6074952 , 0.14MB , pdfEU declaration of conformity LTS DFB DD / 6074952 , 0.10MB , pdfREACH Declaration of conformity LTS DFB DD / 6074952 , 0.12MB , pdfRoHS Declaration of conformity LTS DFB DD / 6074952 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions, luminaire support systems , 0.04MB , pdf
