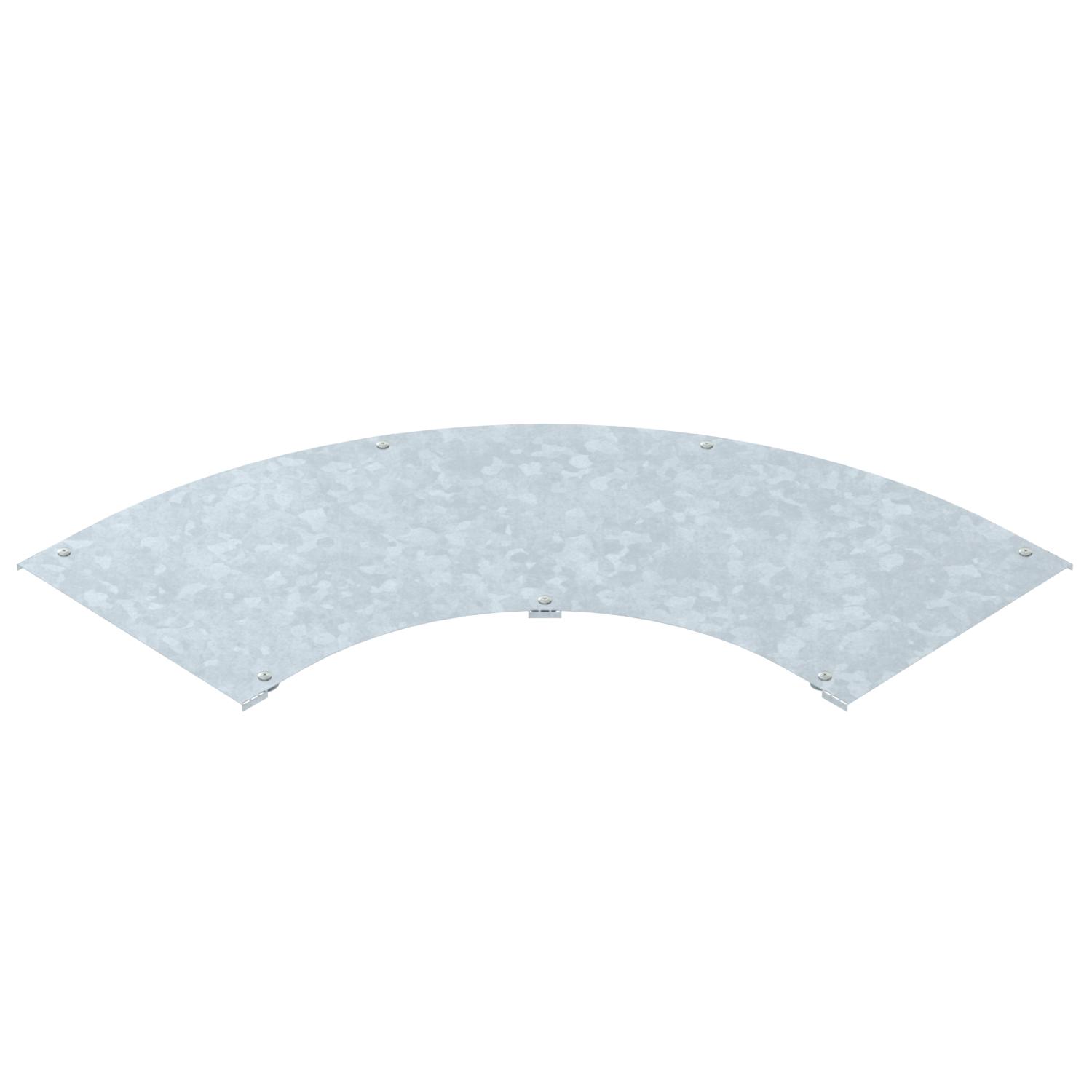

Cover for 90° bend FT
Item no. 6239267 | EAN 4012196882663
- Product description
-
Product descriptionCover with turn buckles for covering 90° cable ladder bends.
-
- Technical data
-
Technical data

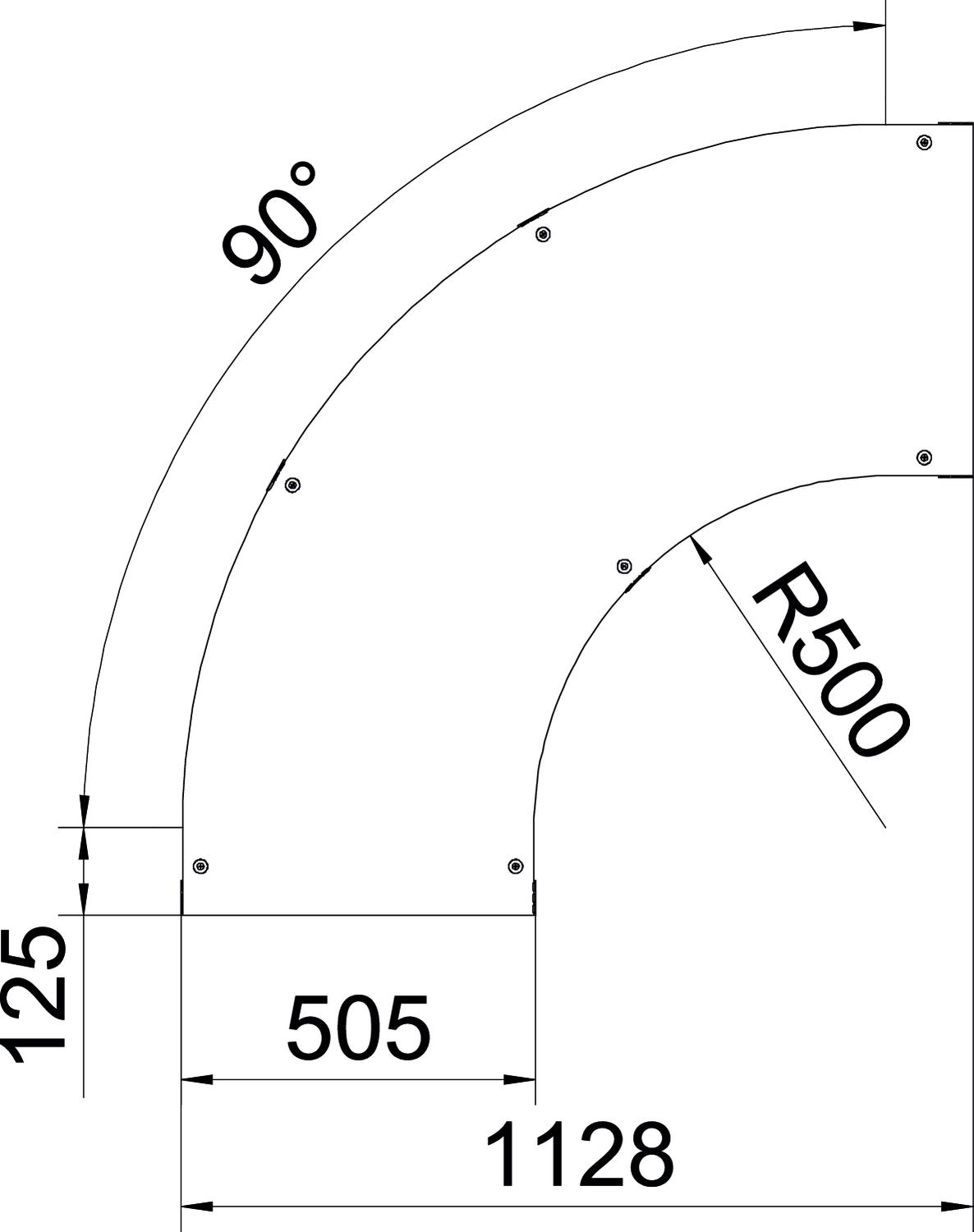

Bend (angle) 90° Change of direction Horizontal CO2 Footprint (GWP) Cradle-to-Gate 34,3704 kg CO2e / 1 Piece Colour zinc Dimension B500mm Dimension B 500 mm Fastening type Sash lock Hinged no Maintain electrical functions no Material Steel Plate thickness 1,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray no Suitable for mesh cable tray no Surface Hot-dip galvanised Width 500 mm - All types
- Downloads
-
Data sheet BD 90 500 R5 FT / 6239267 , 0.19MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity BD 90 500 R5 FT / 6239267 , 0.10MB , pdfUK Declaration of Conformity BD 90 500 R5 FT / 6239267 , 0.09MB , pdfREACH Declaration of conformity BD 90 500 R5 FT / 6239267 , 0.12MB , pdfRoHS Declaration of conformity BD 90 500 R5 FT / 6239267 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
