Cover LKVH D 100
Item no. 6178682 | EAN 4012195981480
- Product description
-

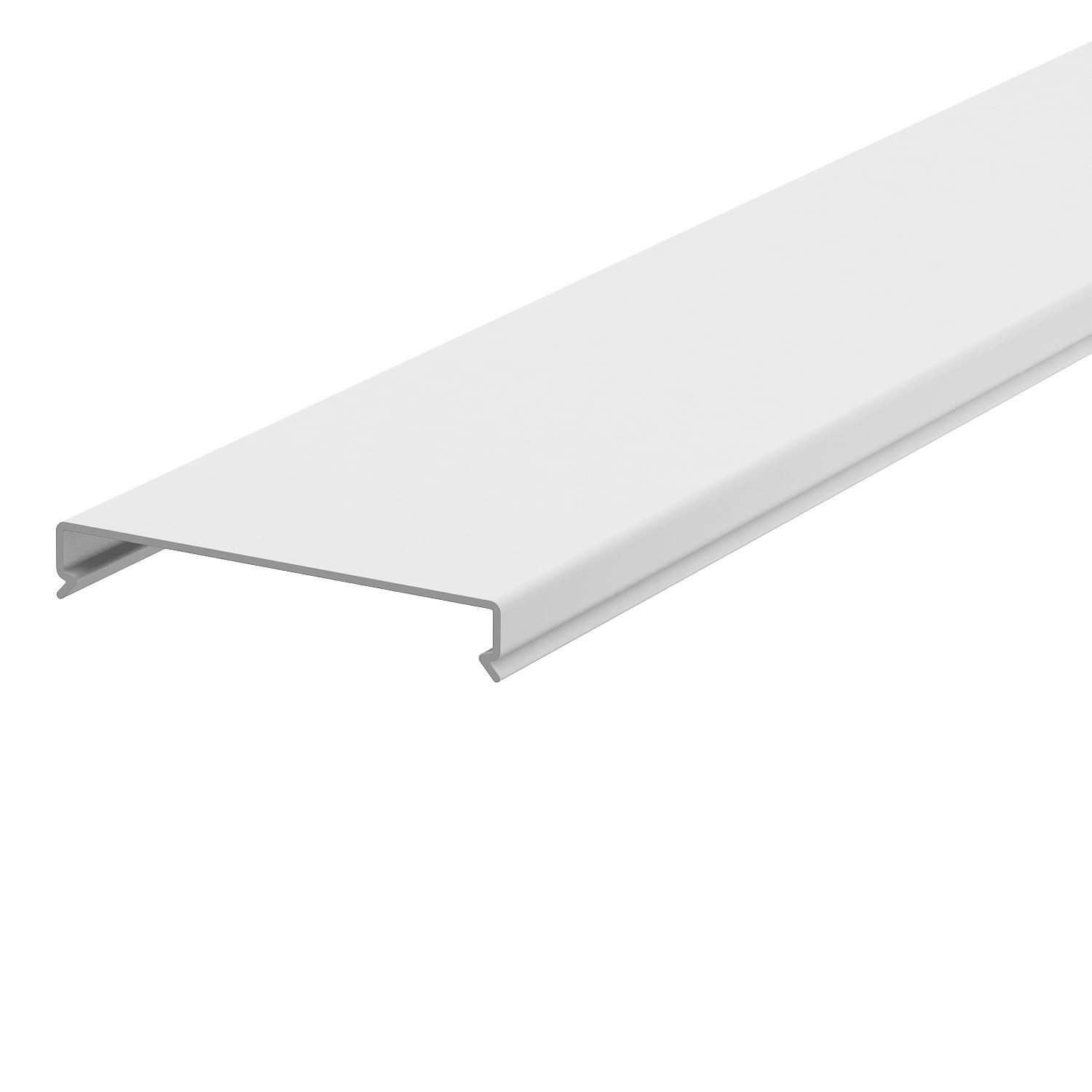

Product descriptionTrunking cover for replacement requirements.
-
- Technical data
-
Technical data

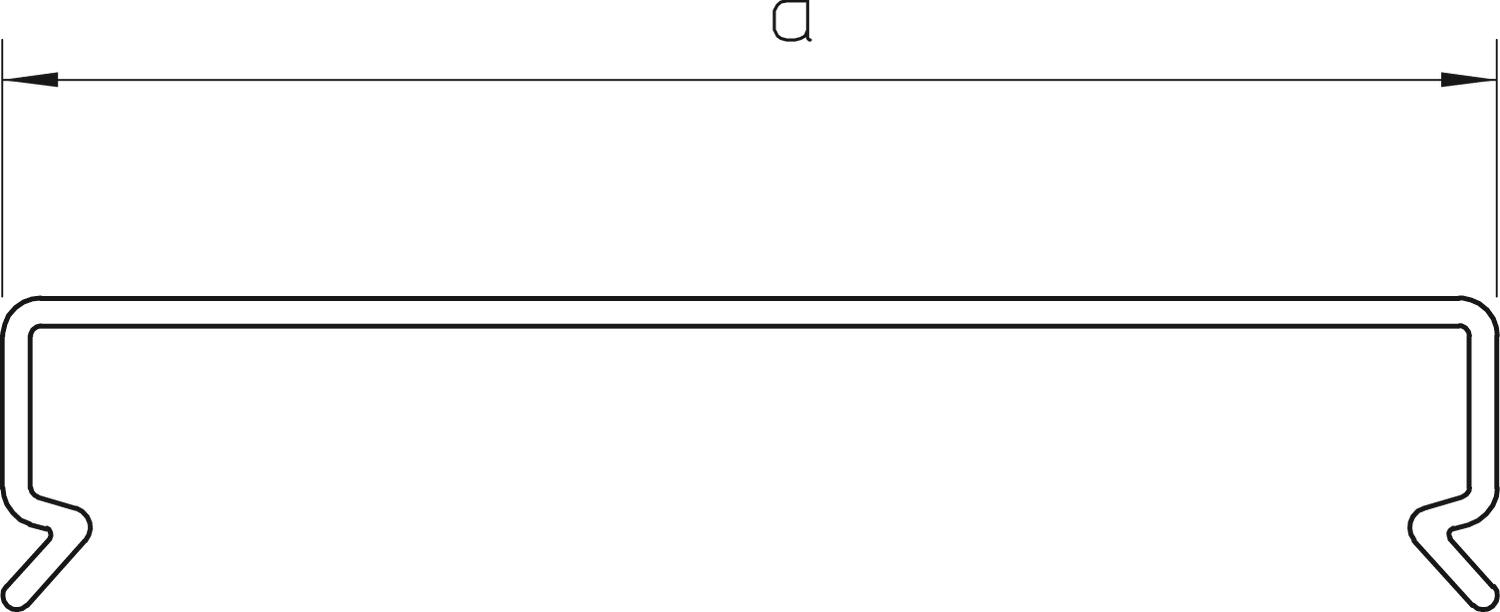

CO2 Footprint (GWP) Cradle-to-Gate 1,6179 kg CO2e / 1 Meter Colour Light grey; RAL 7035 Dimension 100x2000 Dimension a 100 mm Halogen-free yes Length 2000 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -25 °C Self-extinguishing yes Width 100 mm - All types
- Downloads
-
Data sheet LKVH D 100 / 6178682 , 0.17MB , pdfBrochure Wiring trunking , 2.15MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity LKVH D 100 / 6178682 , 0.10MB , pdfUK Declaration of Conformity LKVH D 100 / 6178682 , 0.09MB , pdfLabel approval VDE symbol approval LKVH , 0.55MB , pdfMounting instructions Wiring trunking LK4/LK4H/LKV/LKVH , 0.56MB , pdfNo invitation to tender text is available for this product.
