Cover plate, Telitank T4B, round installation opening for EK device Graphite black; RAL 9011
morepic-1 morepic-2

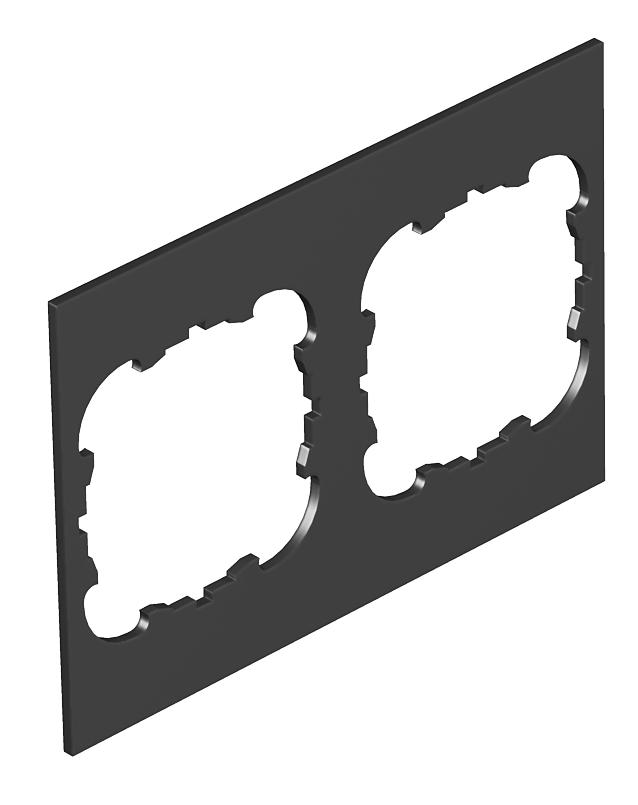

Cover plate, Telitank T4B, round installation opening for EK device

Item no. 7408252 | EAN 4012195114772

7408252 / T4B P3S 9011
Graphite black; RAL 9011
Product description
Product description

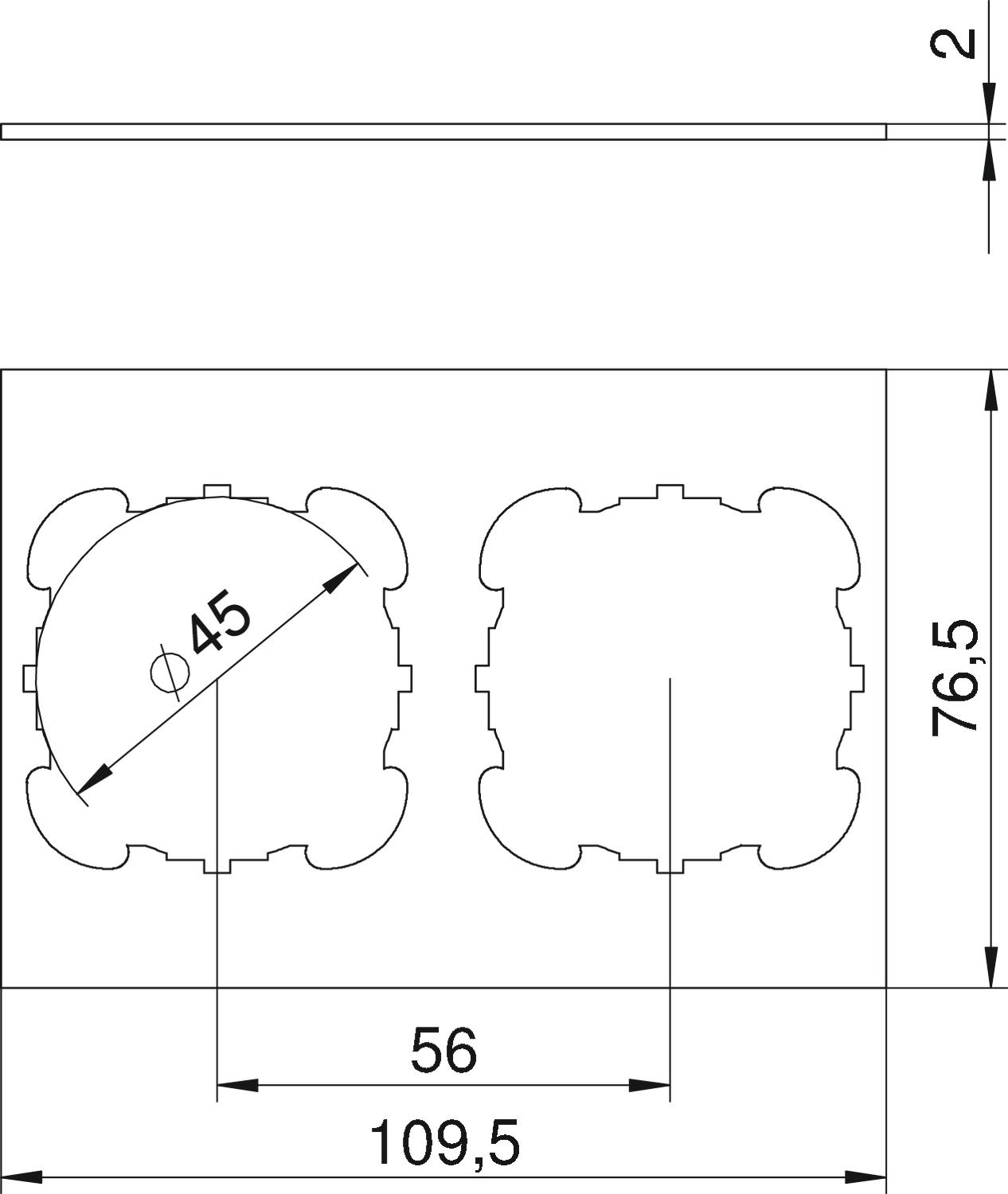

Cover plate with 2 perforations (Ø 45 mm) for two accessories with support clamp (EK version), suitable for T4B lengthwise side (1/2 cover).
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Application On-floor tank
Blanking lid no
CO2 Footprint (GWP) Cradle-to-Gate 0,0631 kg CO2e / 1 Piece
Colour Graphite black; RAL 9011
Dimension 110x77mm
Fastening type Lockable
Height 2 mm
Installation technology Support clamp
Labelling panel no
Length 77 mm
Material Polyvinylchloride
Number of single openings 2
Number of units 2
Suitable for labelling panel no
Width 110 mm
All types

All types

Types Colour Item no. Quantity SSU
T4B P3S 9011 Graphite black; RAL 9011 7408252
1 piece
Downloads

Download

Download

REACH Declaration of conformity T4B P3S 9011 / 7408252 , 0.12MB , pdf
Download
RoHS Declaration of conformity T4B P3S 9011 / 7408252 , 0.13MB , pdf
Download

Download

No invitation to tender text is available for this product.
