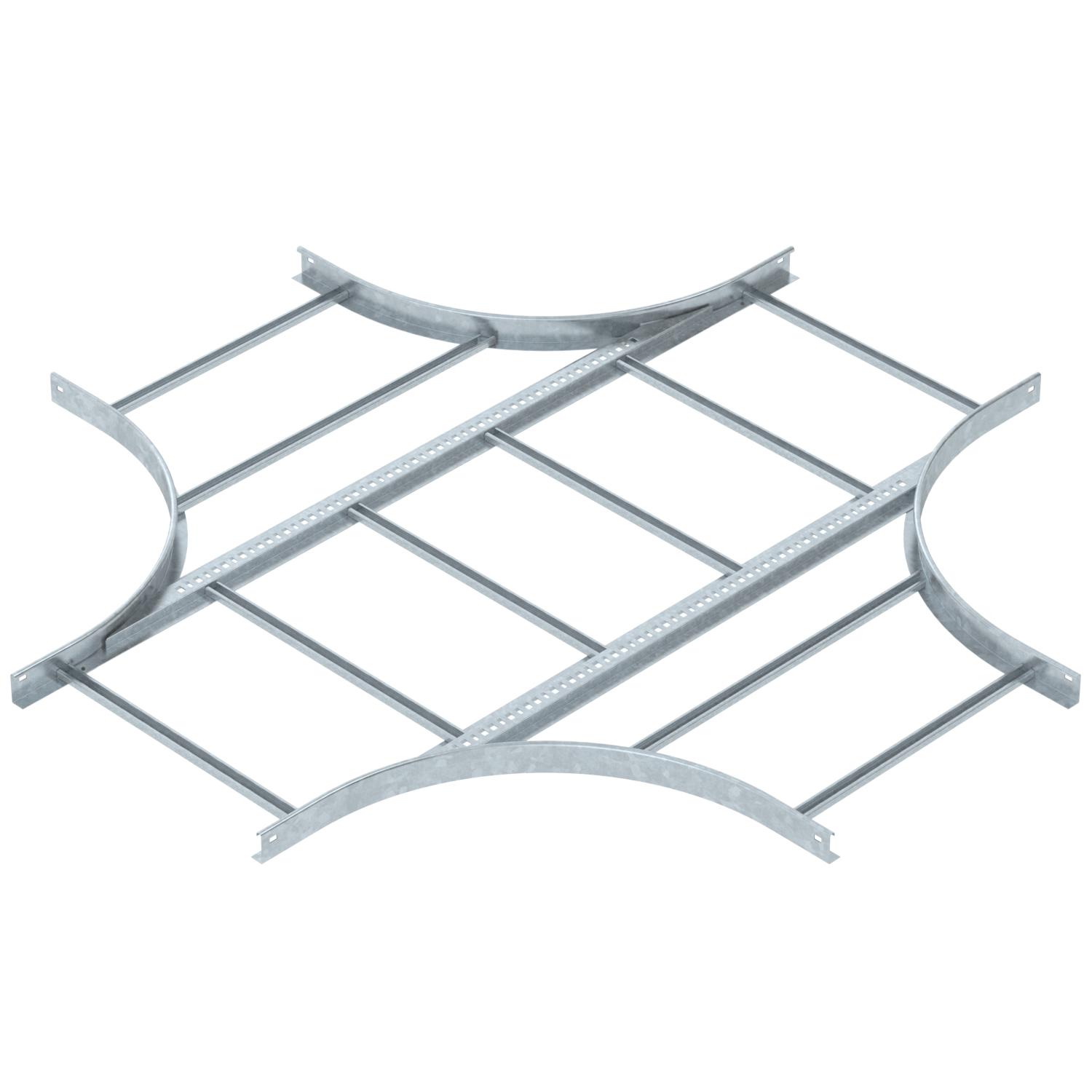

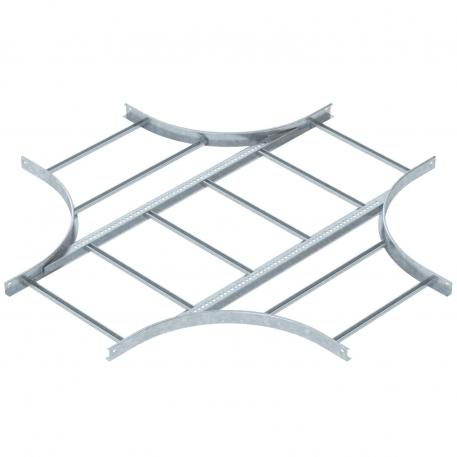

Cross-over 60 FT
Item no. 6214458 | EAN 4012196685479
- Product description
-
Product descriptionCross-over for the creation of horizontal branches, fitting for cable ladders of side height 60 mm. With connector perforation. Can be used indoors and outdoors. Connector and fastening material must be ordered separately. Fittings must be supported by the support structure.
-
- Technical data
-
Technical data

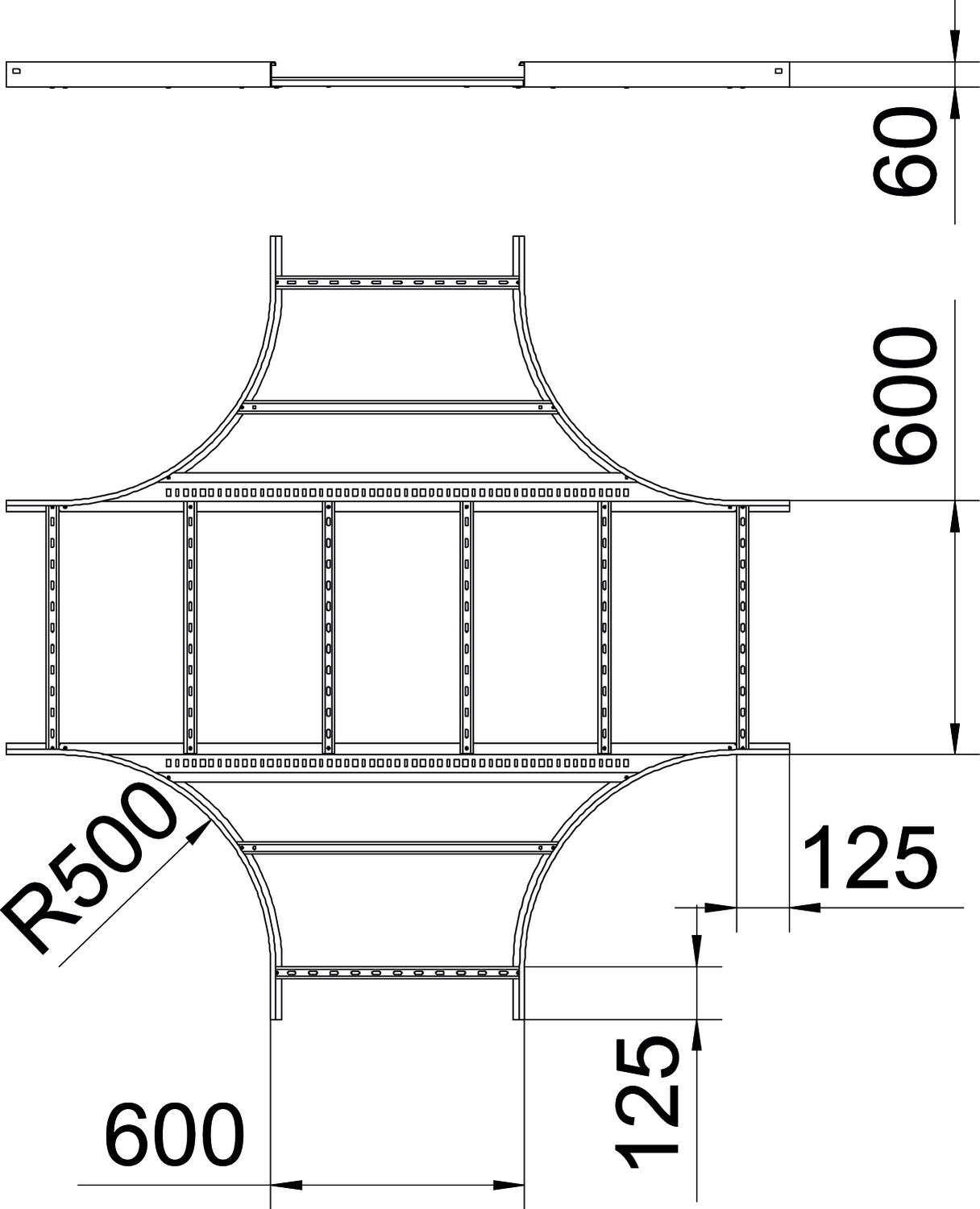

CO2 Footprint (GWP) Cradle-to-Gate 38,4179 kg CO2e / 1 Piece Colour zinc Dimension 60x600 Dimension B 600 mm Dimension R 500 mm Height 60 mm Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Hot-dip galvanised Version of the rungs Profile unperforated Wide-span version no Width 600 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FS
LVG 60 FS 6208840 10 piece - Downloads
-
Data sheet LK 660 R5 FT / 6214458 , 0.24MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity LK 660 R5 FT / 6214458 , 0.10MB , pdfUK Declaration of Conformity LK 660 R5 FT / 6214458 , 0.09MB , pdfREACH Declaration of conformity LK 660 R5 FT / 6214458 , 0.12MB , pdfRoHS Declaration of conformity LK 660 R5 FT / 6214458 , 0.13MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
