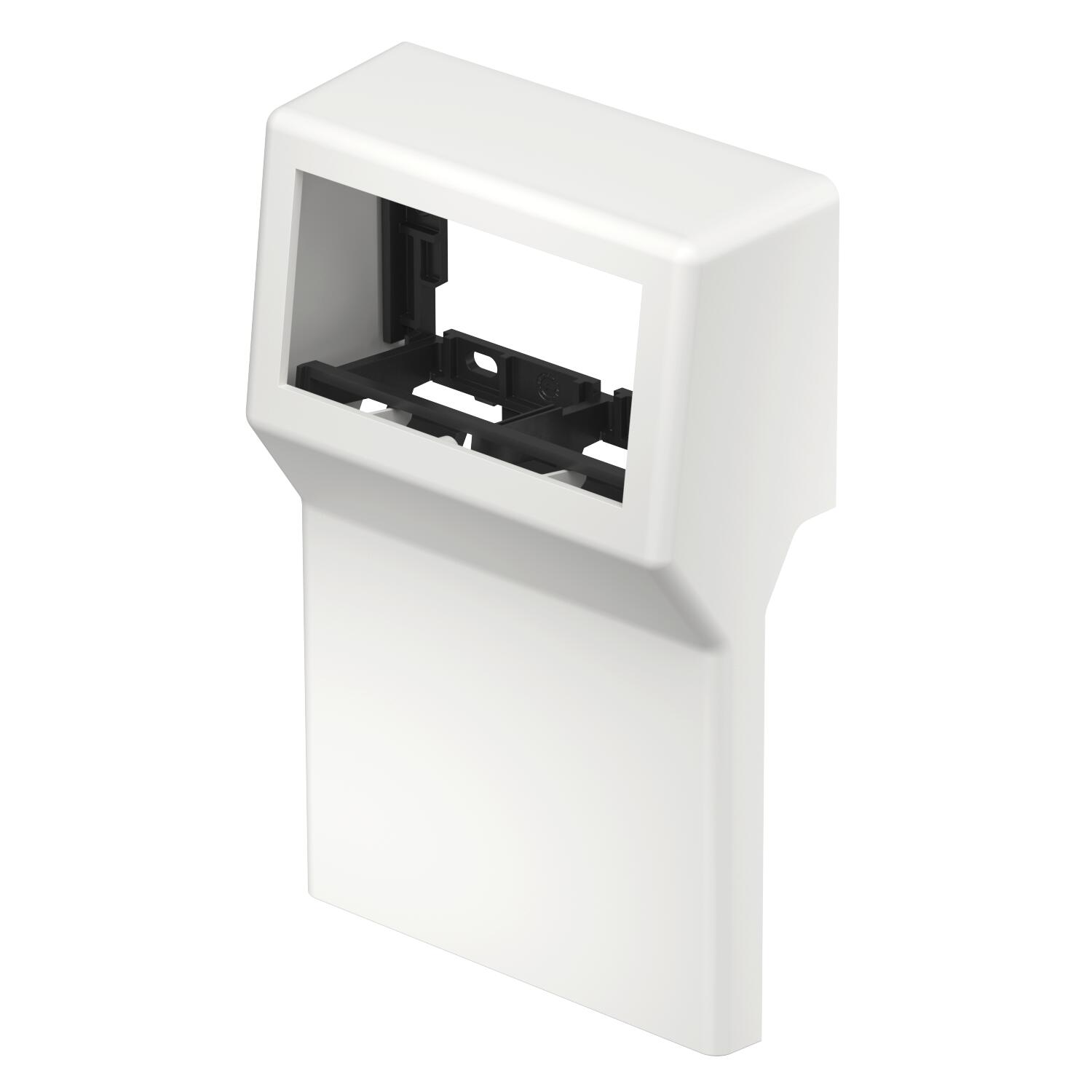

Device support SL GT110
Item no. 6134506 | EAN 4012197376512
- Product description
-
Product descriptionEmpty device support for the skirting trunking systems SL, SL-L and SL-T to install devices of module 45 design in the trunking width 110 mm.
When data modules are used, due to their design, compliance with the mandatory bending radius of the data cables is potentially not guaraneed.
-
- Technical data
-
Technical data

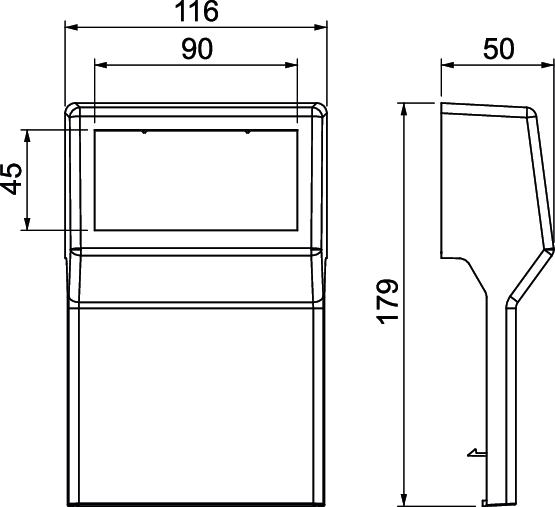

Accessory mounting type Standard Antibacterial treatment no CO2 Footprint (GWP) Cradle-to-Gate 0,4476 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Decoration Without Dimension 116x179x50 Duct height, min. 110 mm Equipment Without for trunking height 110 mm Halogen-free no Height 50 mm Length 116 mm Material Polyvinylchloride Mounting direction Vertical Number of units 2 Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP40 Protection rating IK code IK06 Trunking depth 20 mm Trunking height, max. 110 mm Width 179 mm - All types
- Downloads
-
Data sheet SL GT110M45 rws / 6134506 , 0.15MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity SL GT110M45 rws / 6134506 , 0.10MB , pdfMounting instructions SL, SL-L, SL-T skirting trunking , 4.60MB , pdfMounting instructions Device support SL GT5070M45/110M45 , 1.78MB , pdfNo invitation to tender text is available for this product.
