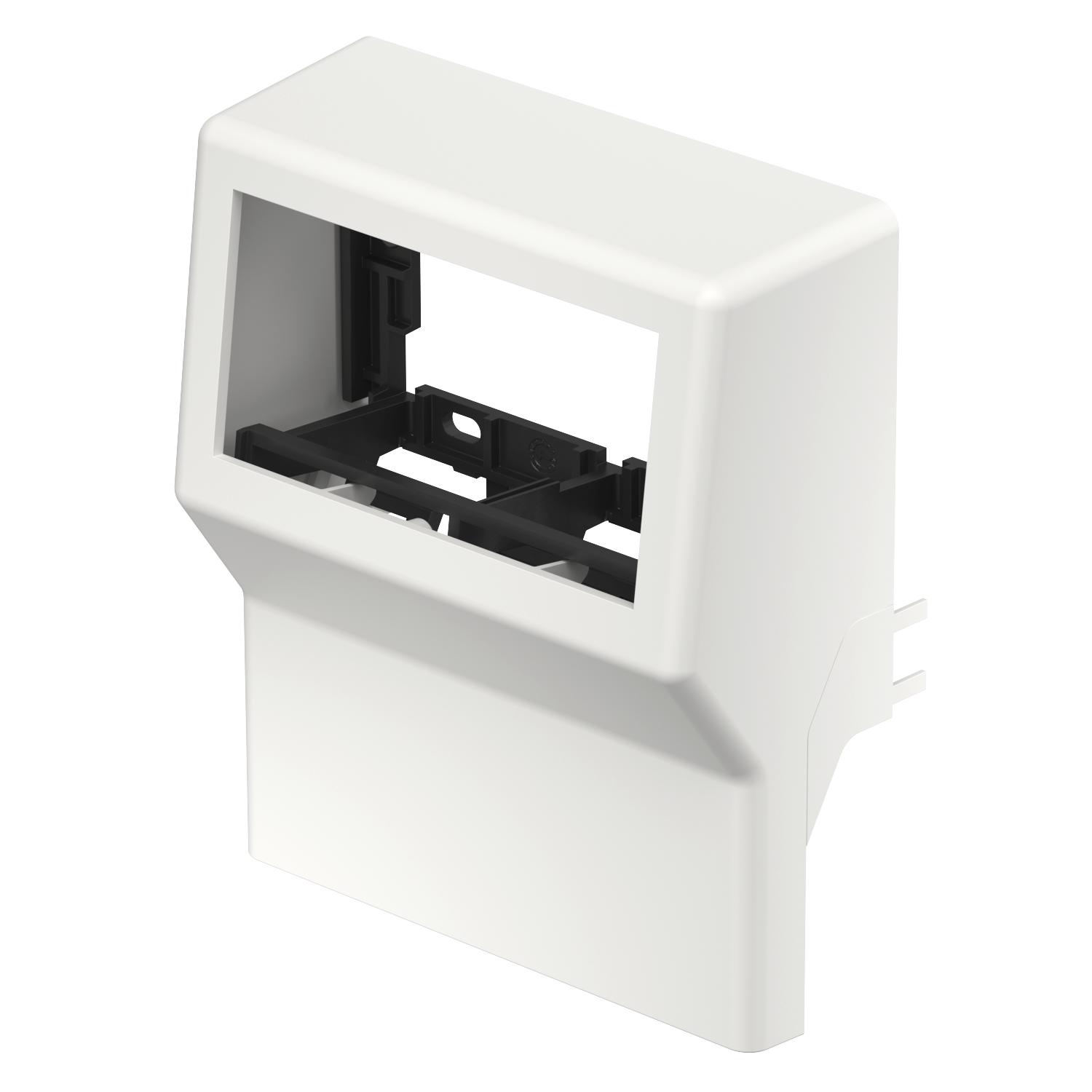

Device support SL GT5070M45
Item no. 6134500 | EAN 4012197376482
- Product description
-
Product descriptionEmpty device support for the skirting trunking systems SL, SL-L and SL-T to install devices of module 45 design in the trunking widths 50 and 70 mm.
When data modules are used, due to their design, compliance with the mandatory bending radius of the data cables is potentially not guaraneed.
-
- Technical data
-
Technical data

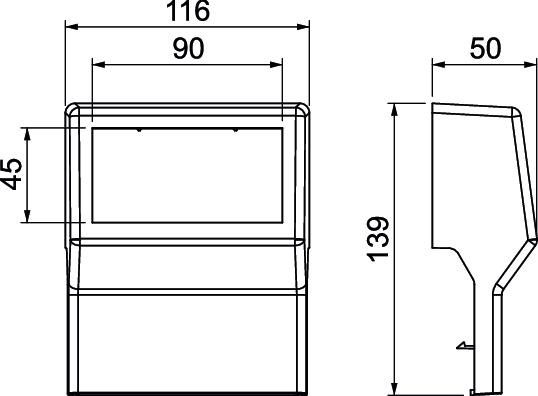

Accessory mounting type Standard Antibacterial treatment no CO2 Footprint (GWP) Cradle-to-Gate 0,4215 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Decoration Without Dimension 116x139x50 Duct height, min. 50 mm Equipment Without for trunking height 70 mm Halogen-free no Height 50 mm Length 116 mm Material Polyvinylchloride Mounting direction Horizontal Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP40 Protection rating IK code IK06 Trunking height, max. 70 mm Width 139 mm - All types
- Downloads
-
Data sheet SL GT5070M45 rws / 6134500 , 0.17MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity SL GT5070M45 rws / 6134500 , 0.10MB , pdfMounting instructions SL, SL-L, SL-T skirting trunking , 4.60MB , pdfMounting instructions Device support SL GT5070M45/110M45 , 1.78MB , pdfNo invitation to tender text is available for this product.
