Device support SL GTO 50-70
Item no. 6132224 | EAN 4012196719839
- Product description
-

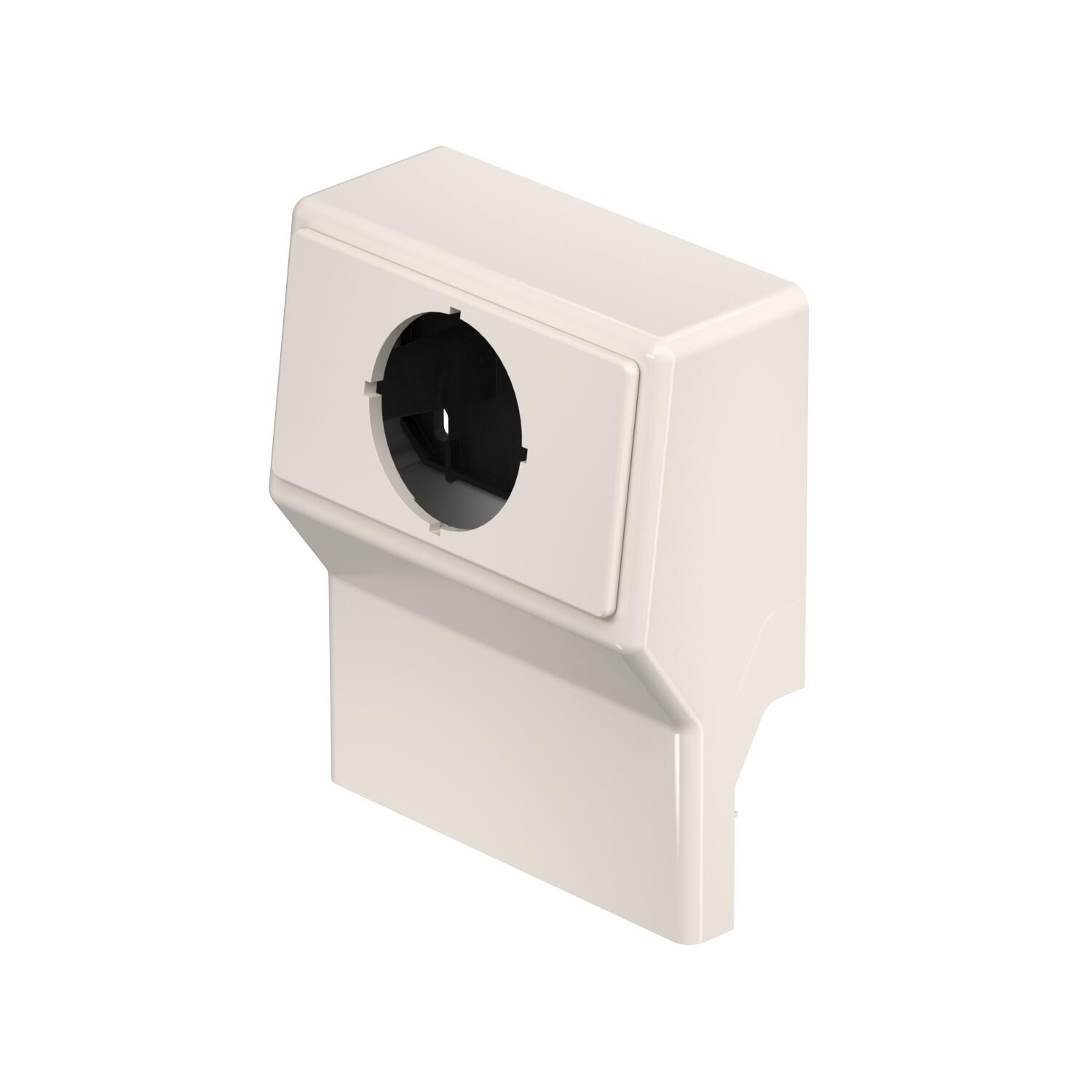

Product descriptionEmpty device support for the SL, SL-L and SL-T skirting trunking systems for the installation of devices in support clamp form (according to DIN 49075) in the trunking widths 50 and 70 mm.
For snapping onto the cover of the trunking system.
-
- Technical data
-
Technical data

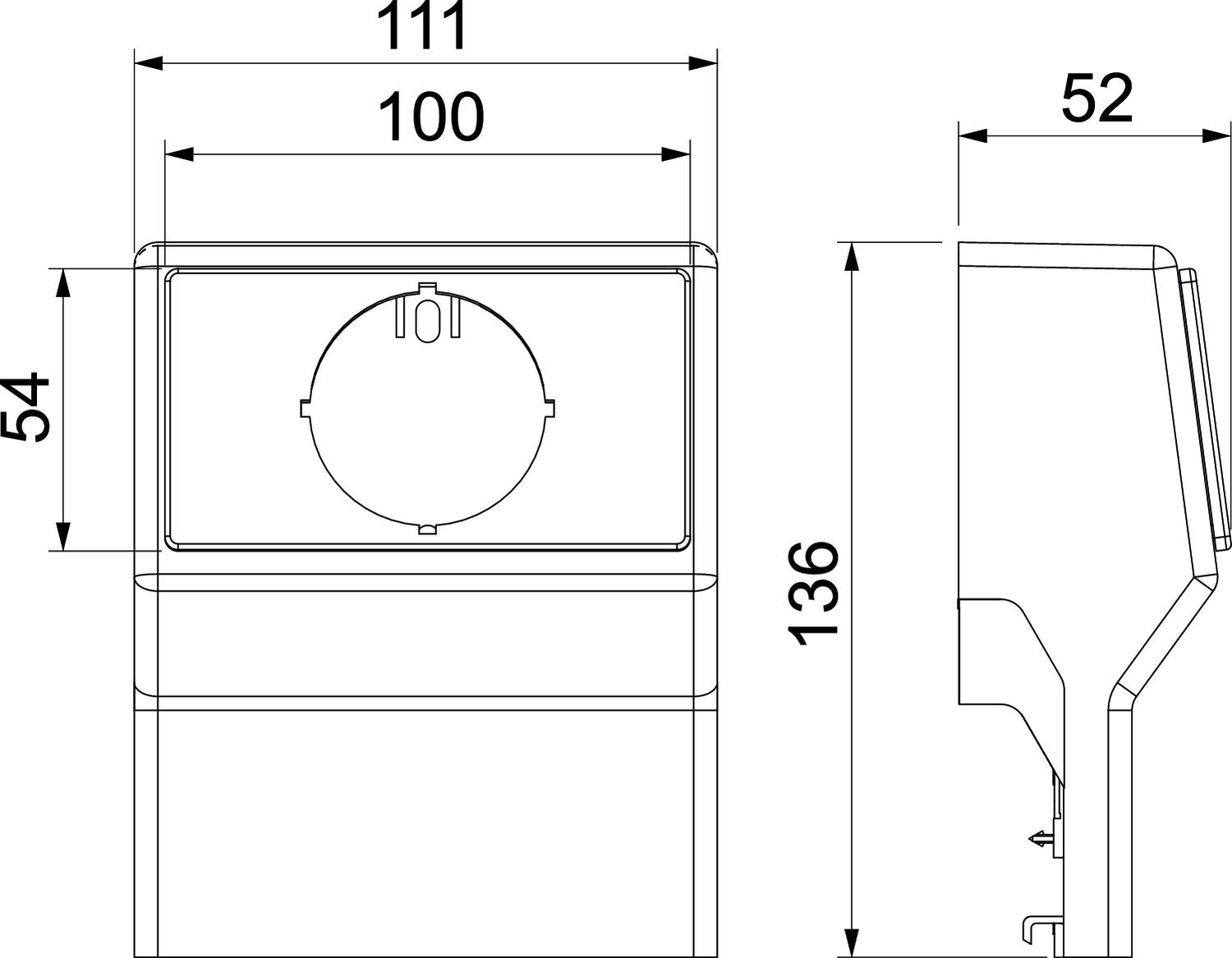

Accessory mounting type With central plate CO2 Footprint (GWP) Cradle-to-Gate 0,4092 kg CO2e / 1 Piece Colour Cream; RAL 9001 Decoration Without Equipment Without Halogen-free no Height 136 mm Length 52 mm Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP40 Protection rating IK code IK06 Width 111 mm - All types
- Downloads
-
Data sheet SL GTO 50-70 cws / 6132224 , 0.22MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity SL GTO 50-70 cws / 6132224 , 0.10MB , pdfLabel approval VDE symbol approval, SL skirting trunking , 0.27MB , pdfMounting instructions SL, SL-L, SL-T skirting trunking , 4.60MB , pdfNo invitation to tender text is available for this product.
